SKF

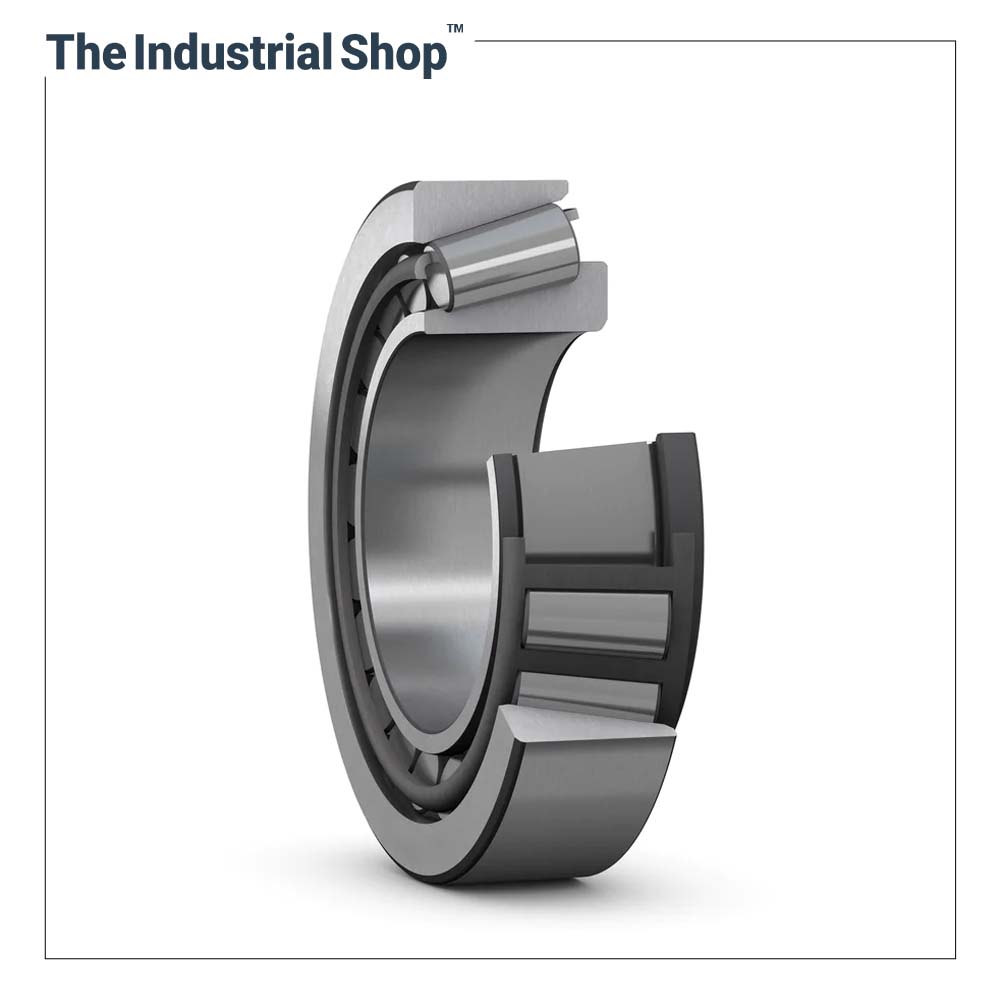

SKF Taper Roller Bearing 32004

SKF Taper Roller Bearing 32004

Regular price Rs. 308.00
Regular price Rs. 498.00 Sale price Rs. 308.00
Sale Sold out

Summary

Item Code: 32004 X/Q
Item Type: Single-Row Tapered Roller Bearing

Inner Diameter (ID): 20 mm
Outer Diameter (OD): 42 mm
Total Width (T): 15 mm
.

Description

Single-Row Tapered Roller Bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting, and maintenance. By mounting one single-row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
.

Features

  • The optimized roller end design and surface finish on the flange promote hydrodynamic lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear. In addition, the bearings can better maintain preload and run at reduced noise levels
  • The crowned raceway profiles of basic design bearings optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends, and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles
  • The rollers incorporated in SKF tapered roller bearings are manufactured to such close dimensional and geometrical tolerances that they are practically identical. This provides optimal load distribution, reduces noise and vibration, and enables preload to be set more accurately
Radial Load Capability: Excellent-- Axial Load Capability: Good (Single Direction)-- High Speed Capability: Good-- Static Misalignment Capability: Poor

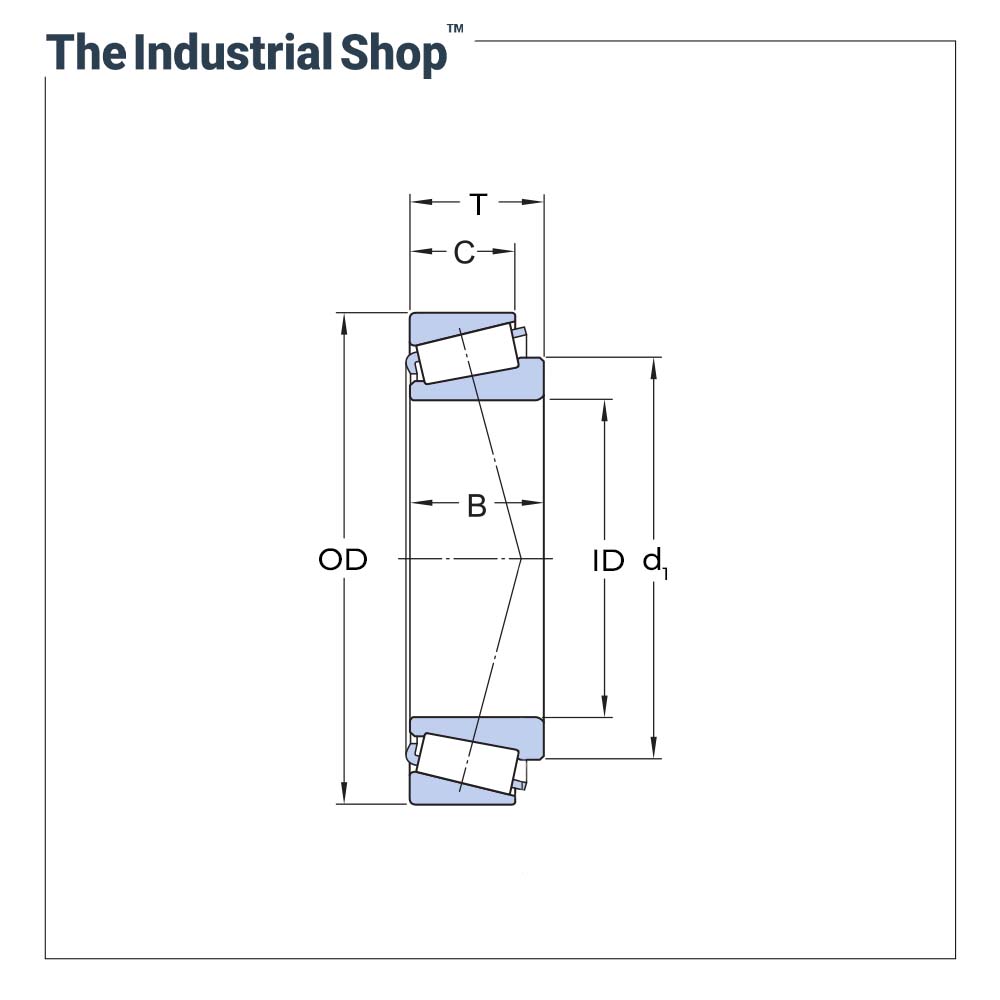

    Specifications

    Inner Diameter (ID) 20 mm
    Outer Diameter (OD) 42 mm
    Total Width (T) 15 mm
    Width of Outer Ring (C) 12 mm
    Width of Inner Ring (B) 15 mm
    Basic Dynamic Load Rating (C1) 29.7 kN
    Basic Static Load Rating (C0) 27 kN
    Limiting Speed 16,000 r/min
    Reference Speed 13,000 r/min
    Cage Material Sheet Metal
    Weight 0.099 kg
    Brand SKF
    Catalogue (PDF) Download Here



    GET THE MAXIMUM OUT OF YOUR SKF BEARINGS!
    Selection Guide | Mounting and Dismounting Guide | Maintenance Handbook |
    Damage and Failure Analysis Handbook
