SKF

SKF Spherical Roller Bearing 24130

SKF Spherical Roller Bearing 24130

Regular price Rs. 84,696.00
Regular price Rs. 132,339.00 Sale price Rs. 84,696.00
Sale Sold out
Shipping calculated at checkout.
Bore and Clearance

Summary

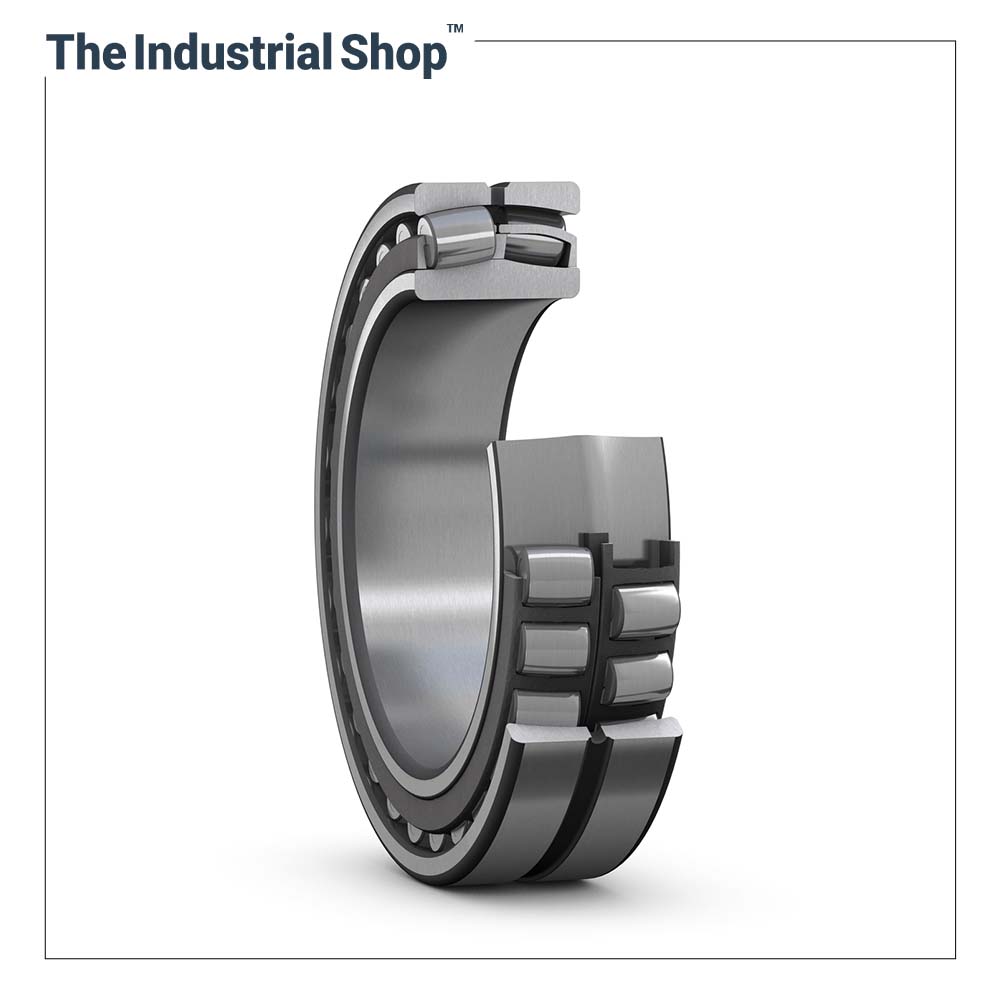

Item Type: Double-Row Spherical Roller Bearing

Inner Diameter (ID): 150 mm
Outer Diameter (OD): 250 mm
Width (W): 100 mm
.

Description

Spherical Roller Bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The bearings can be used in a modular system, including housings, sleeves, and nuts.

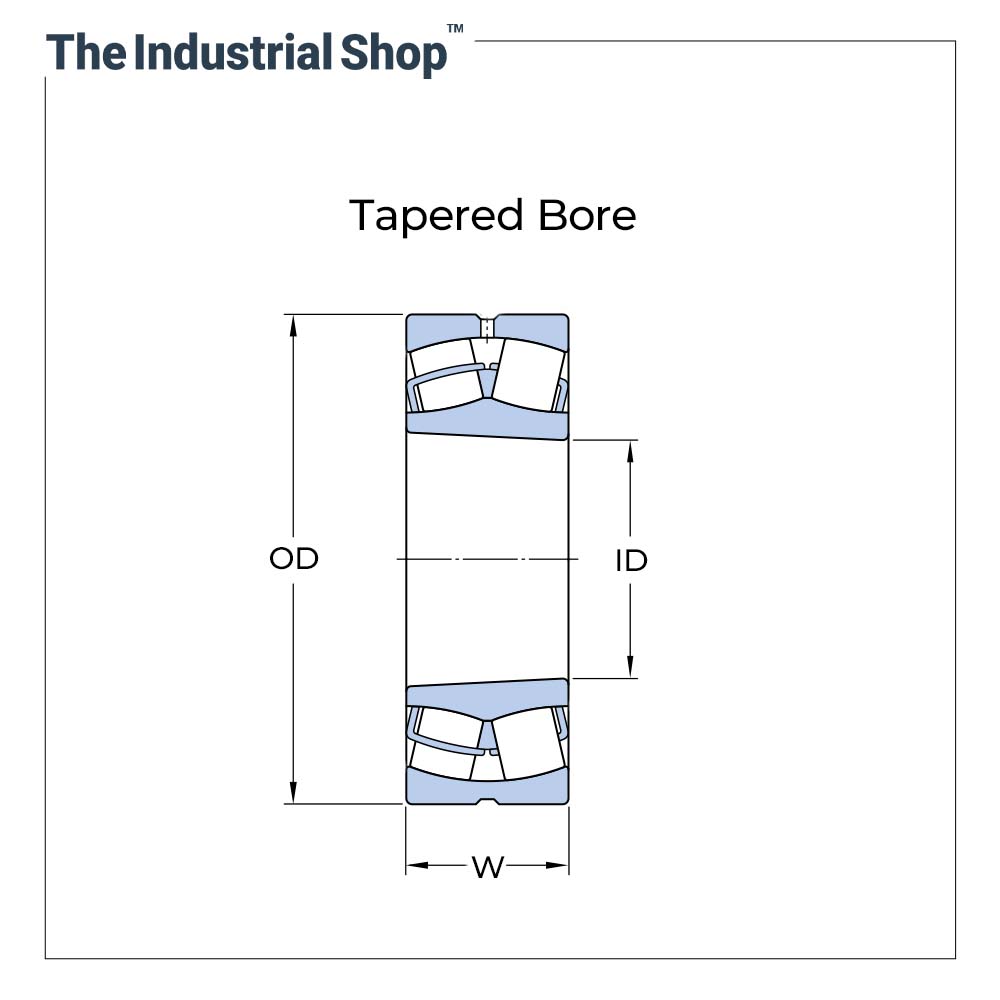

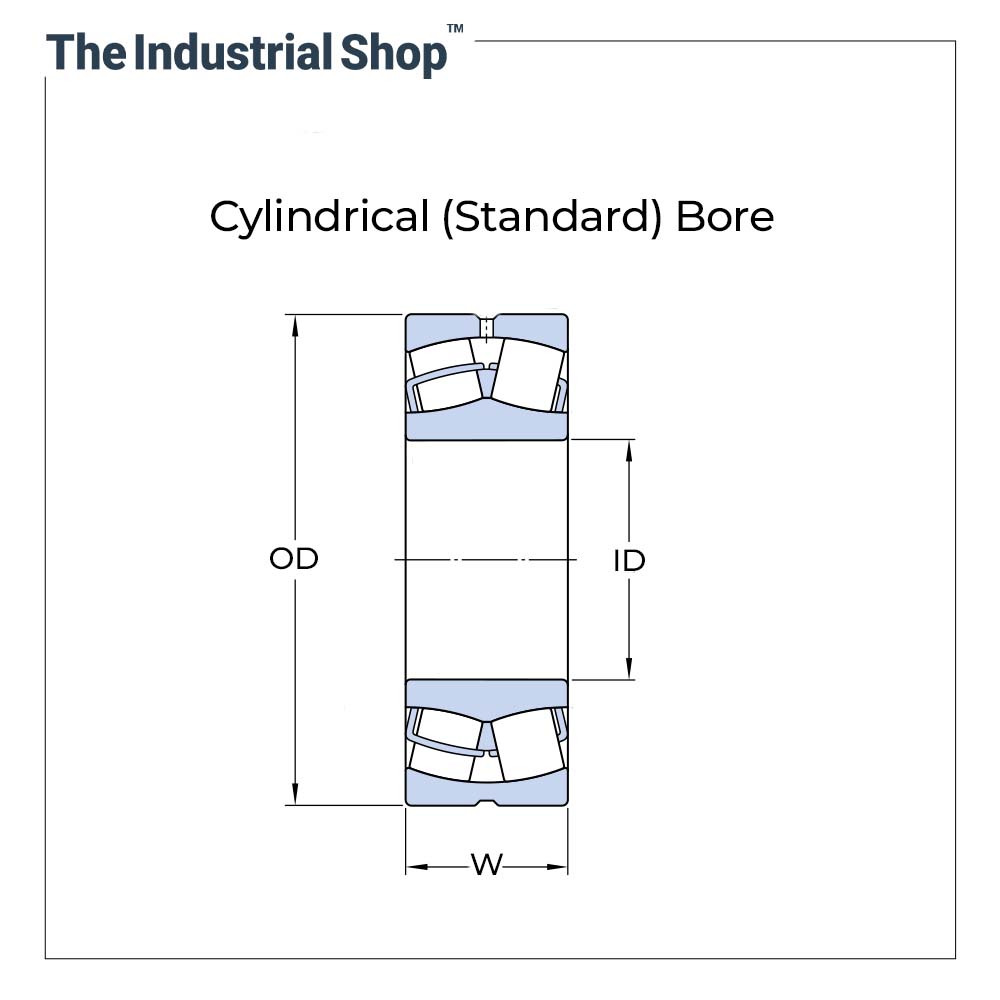

SKF manufactures Spherical Roller Bearings with cylindrical (standard) and tapered bores in Steel as well as Brass Cages. Tapered bore bearings may be used either in Plummer blocks or conventional housings.
.

Features

    Specifications

    Inner Diameter (ID) 150 mm
    Outer Diameter (OD) 250 mm
    Width (W) 100 mm
    Basic Dynamic Load Rating (C1) 1054 kN
    Basic Static Load Rating (C0) 1530 kN
    Limiting Speed 2,000 r/min
    Reference Speed 1,400 r/min
    Cage Material Sheet Metal
    Weight ~20 kg
    Brand SKF
    Catalogue (PDF) Download Here



    GET THE MAXIMUM OUT OF YOUR SKF BEARINGS!
    Selection Guide | Mounting and Dismounting Guide | Maintenance Handbook |
    Damage and Failure Analysis Handbook
