SKF
SKF Spherical Roller Bearing 22240
SKF Spherical Roller Bearing 22240
Couldn't load pickup availability
Summary
Item Type: Double-Row Spherical Roller Bearing
Inner Diameter (ID): 200 mm
Outer Diameter (OD): 360 mm
Width (W): 98 mm
.
Description

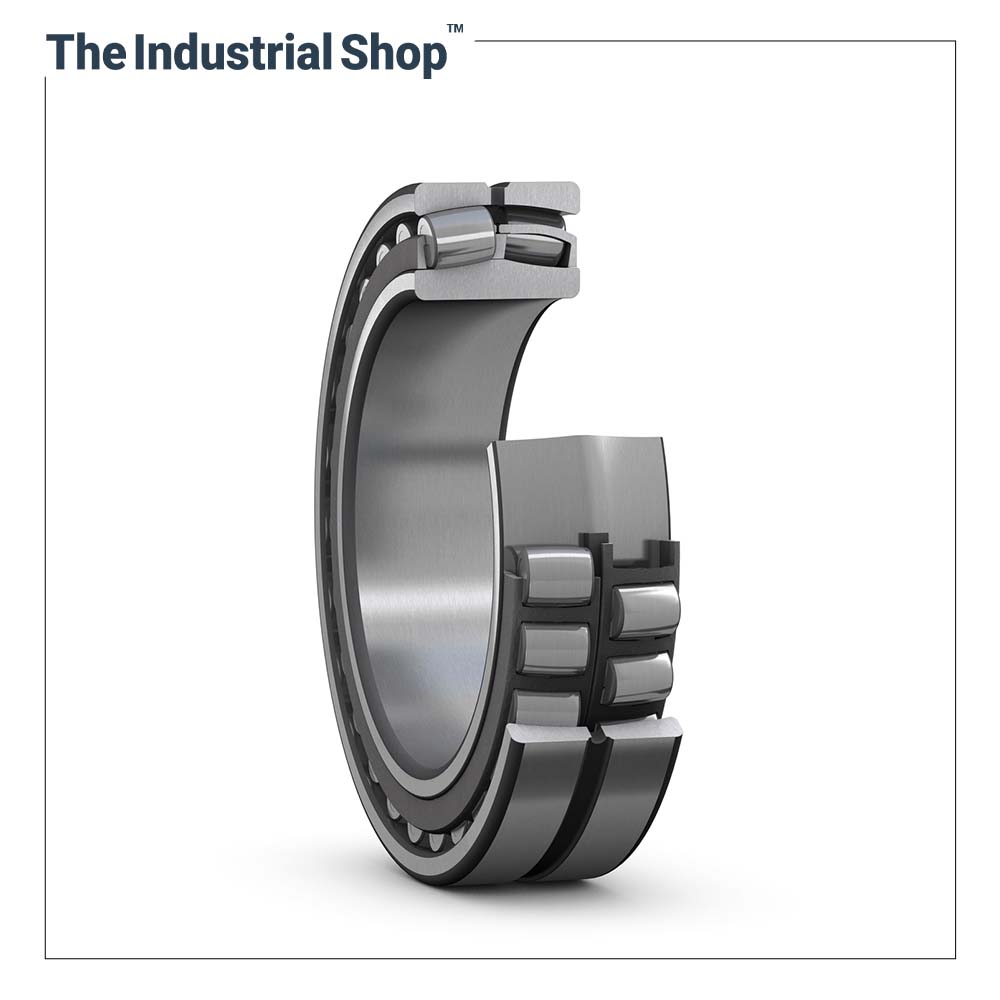

Spherical Roller Bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The bearings can be used in a modular system, including housings, sleeves, and nuts.

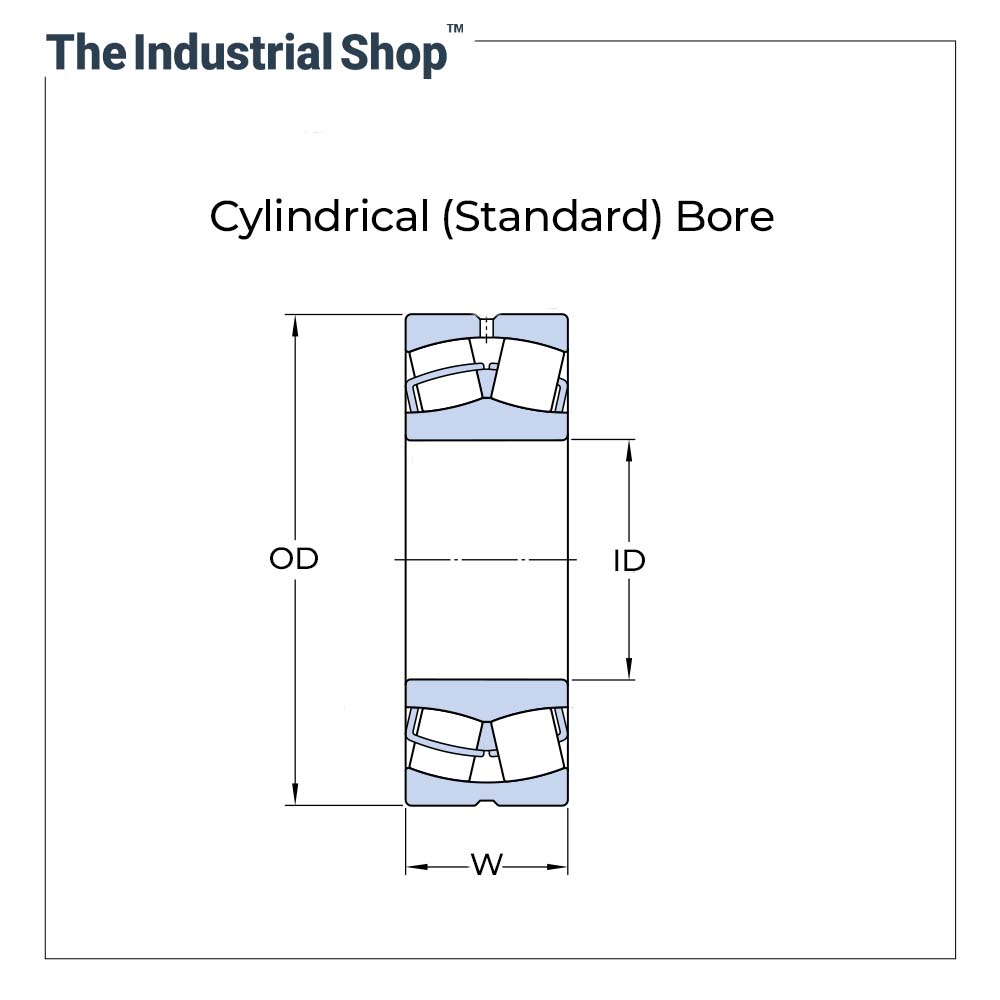

SKF manufactures Spherical Roller Bearings with cylindrical (standard) and tapered bores in Steel as well as Brass Cages. Tapered bore bearings may be used either in Plummer blocks or conventional housings.
.
Features
Specifications
| Inner Diameter (ID) | 200 mm |
| Outer Diameter (OD) | 360 mm |
| Width (W) | 98 mm |
| Basic Dynamic Load Rating (C1) | 1526 kN |
| Basic Static Load Rating (C0) | 1930 kN |
| Limiting Speed | 2,200 r/min |
| Reference Speed | 1,600 r/min |
| Cage Material | Sheet Metal |
| Weight | ~43.5 kg |
| Brand | SKF |
| Catalogue (PDF) | Download Here |
