SKF Ball Bearing 6215
SKF Ball Bearing 6215
Summary

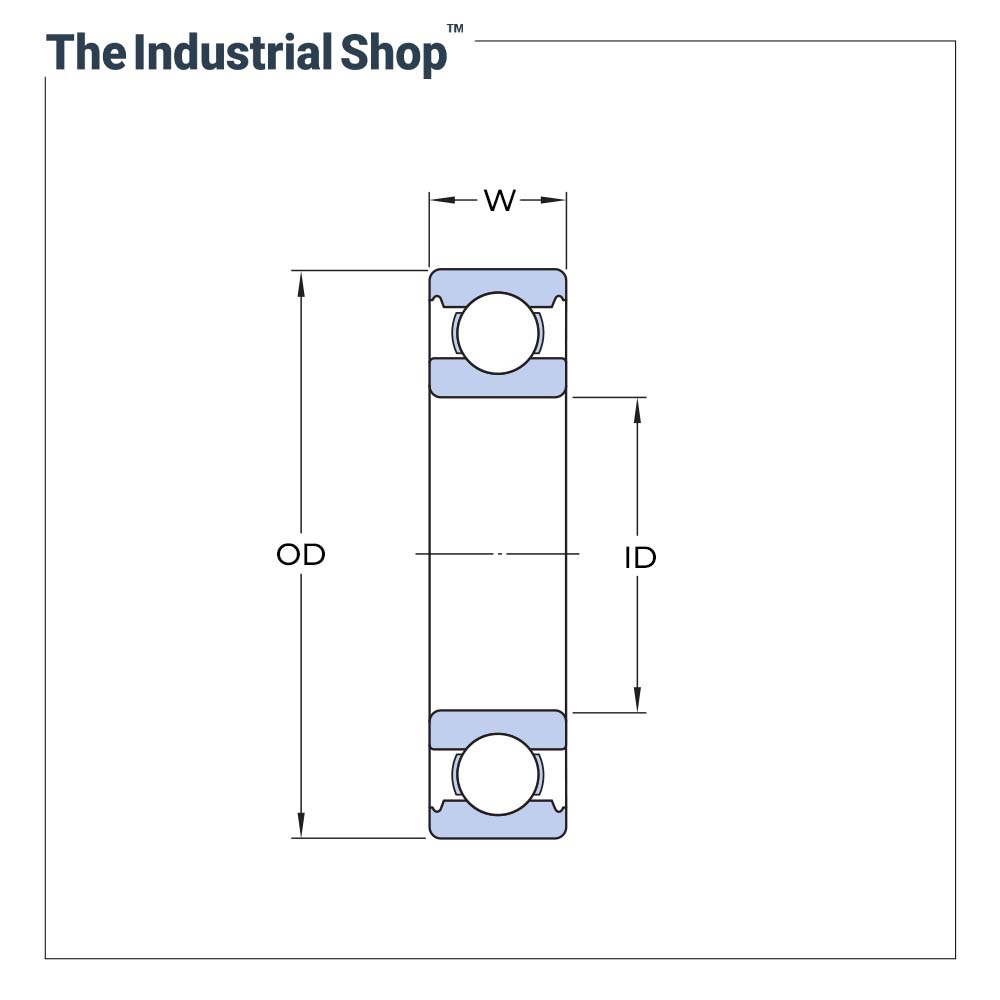

Item Type: Deep Groove Ball Bearing
Inner Diameter (ID): 75 mm
Outer Diameter (OD): 130 mm
Width (W): 25 mm
.
Description

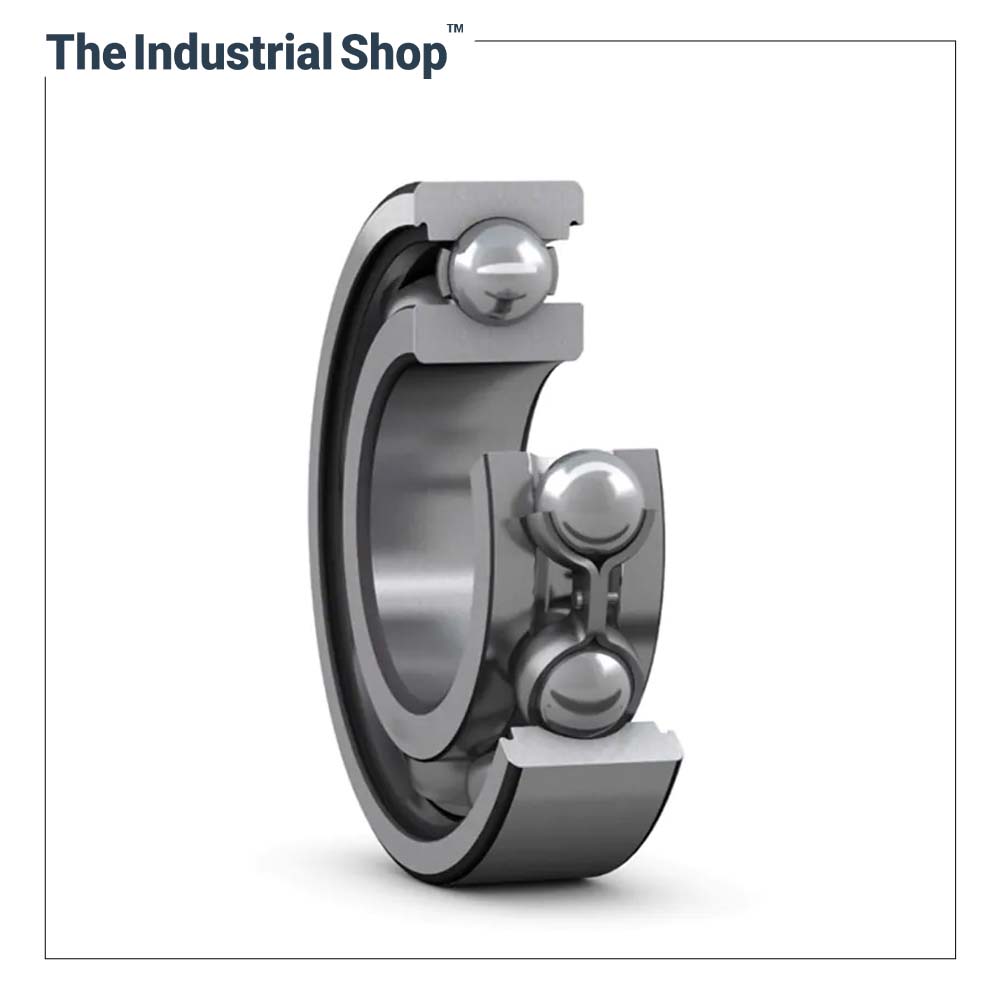

Deep Groove Ball Bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types.
The SKF bearing catalogue lists a large range of designs, variants, and sizes of deep groove ball bearings. They are available capped (with seals or shields) or open, with a variety of greases, and a range of clearances. 2Z ZZ 2RS GJN C3 C4
.
Features
Specifications
Inner Diameter (ID) | 75 mm |
Outer Diameter (OD) | 130 mm |
Width (W) | 25 mm |
Basic Dynamic Load Rating (C1) | ~68.9 kN |
Basic Static Load Rating (C0) | ~49 kN |
Reference Speed | ~10,000 r/min |
Cage Material | Sheet Metal |
Weight | ~1.2 kg |
Brand | SKF |
Catalogue (PDF) | Download Here |
