SKF Angular Contact Ball Bearing 7308

SKF Angular Contact Ball Bearing 7308

Regular price Rs. 2,571.00
Regular price Rs. 5,247.00 Sale price Rs. 2,571.00
Sale Sold out
Shipping calculated at checkout.
Item Code (Type)

Summary

Item Type: Single-Row Angular Contact Ball Bearing

Inner Diameter (ID): 40 mm
Outer Diameter (OD): 90 mm
Width (W): 23 mm
.

Description

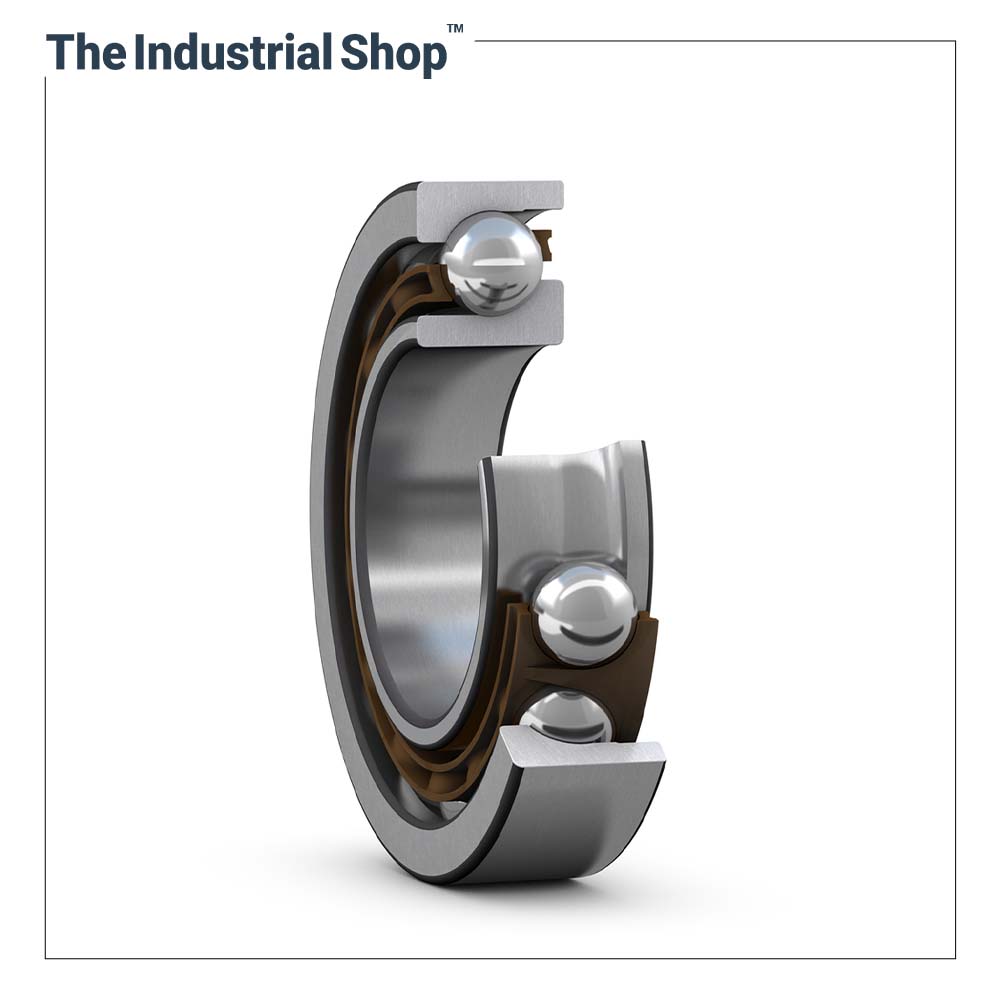

Single-Row Angular Contact Ball Bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

SKF manufactures Angular Contact Ball Bearings with 40° Contact Angle (B Series), 30° Contact Angle (A Series), and 25° Contact Angle (AC Series), in Polyamide, Steel as well as Brass cages and comes with and without contact lip seals. BEP, BE-2RZP, BECBP, BECBJ, BECBM, BECBY, BEGAP, BEGAM.

Features

  • The lower shoulder enables a large number of balls to be incorporated into the bearing, giving it a relatively high load-carrying capacity
  • Rapid accelerations and decelerations are possible
  • No adjustment is needed for correct internal clearance or preload

    Specifications

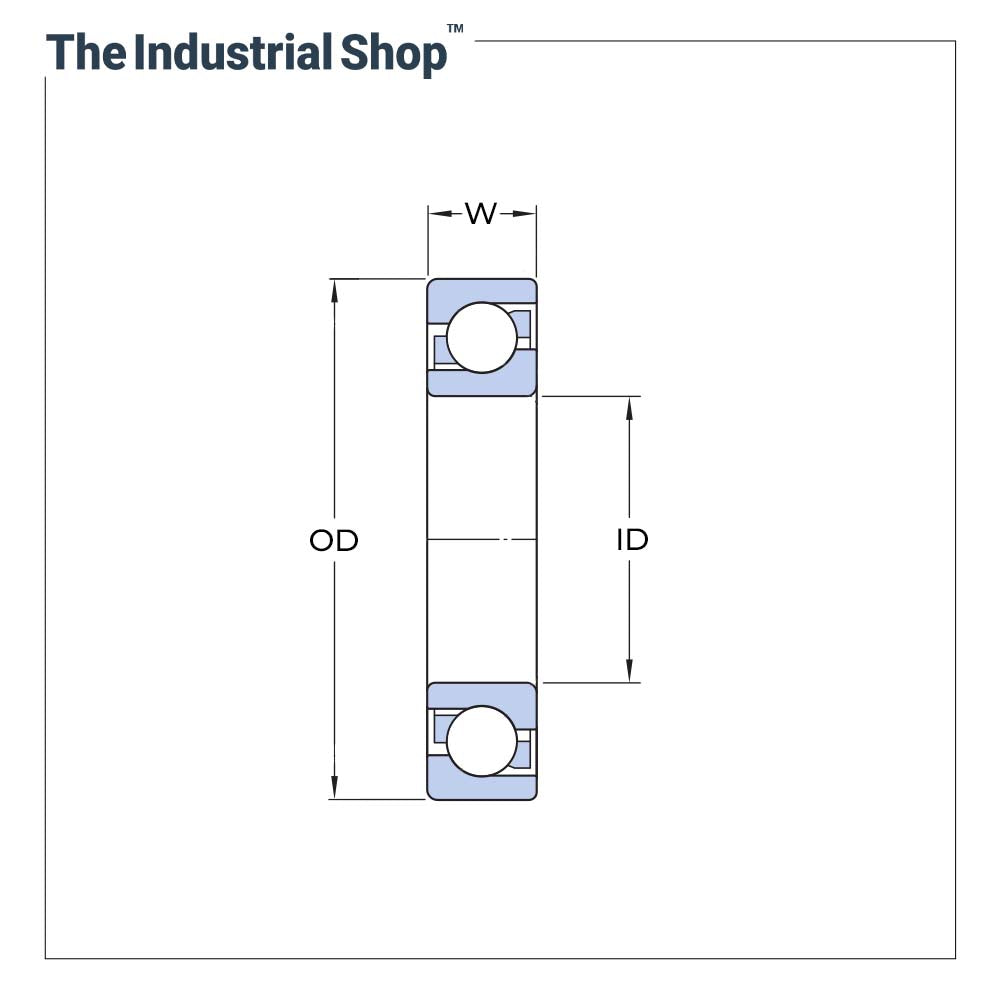

    Inner Diameter (ID) 40 mm
    Outer Diameter (OD) 90 mm
    Width (W) 23 mm
    Contact Angle (α) 40°
    Basic Dynamic Load Rating (C1) ~46.2 kN
    Basic Static Load Rating (C0) ~30.5 kN
    Limiting Speed ~9,000 r/min
    Reference Speed ~9,000 r/min
    Weight ~0.62 kg
    Brand SKF
    Catalogue (PDF) Download Here



    GET THE MAXIMUM OUT OF YOUR SKF BEARINGS!
    Selection Guide | Mounting and Dismounting Guide | Maintenance Handbook |
    Damage and Failure Analysis Handbook
