NRB Industrial (India)

NRB Unit UCP 211-32 (2.0 inch)

NRB Unit UCP 211-32 (2.0 inch)

Regular price Rs. 1,444.00
Regular price Rs. 2,627.00 Sale price Rs. 1,444.00
Sale Sold out
Shipping calculated at checkout.

Summary

Item Code: YAS 2" (UCP 211-32)

Item Type: Pillow Block Ball Bearing Unit

Shaft Diameter (d): 2.0 inch (50.80 mm)
.

Description

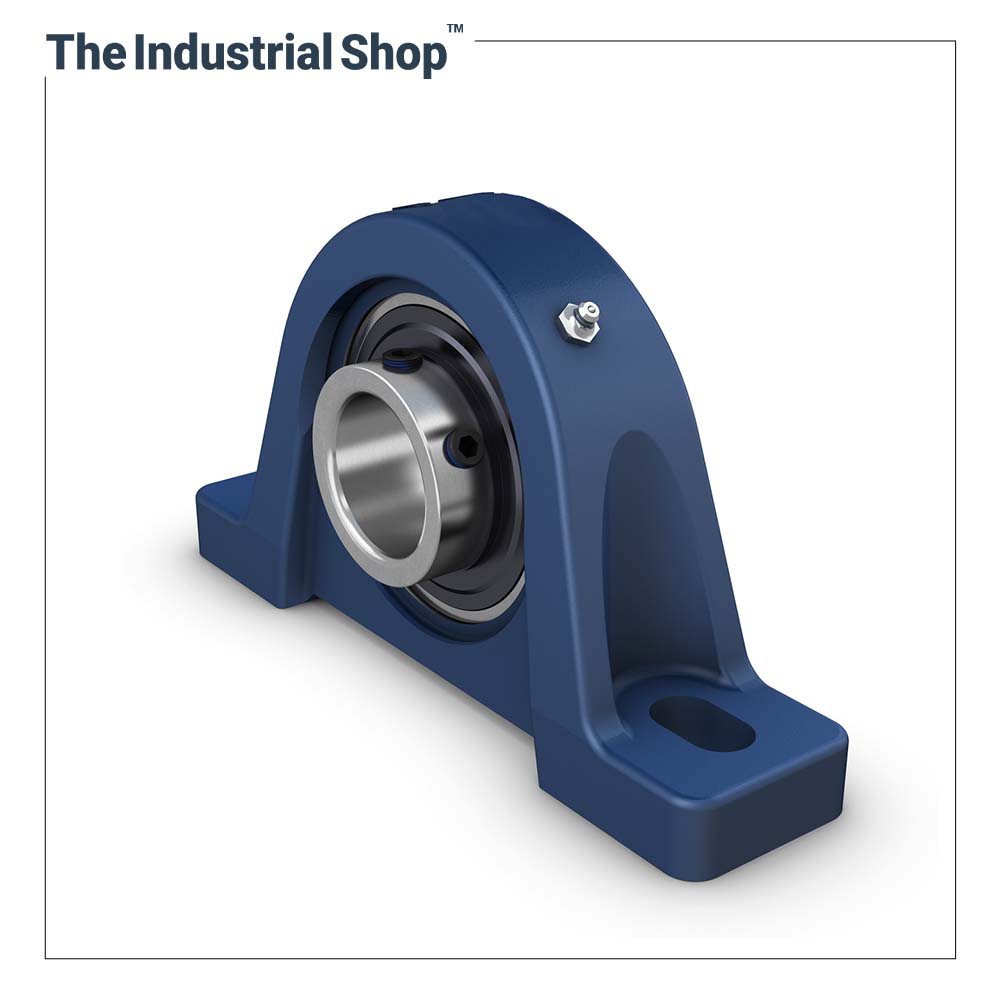

Ball Bearing Units consist of a deep groove ball bearing mounted in a housing that can be bolted to a support surface. The bearing has a sphered (convex) outside surface and an extended inner ring that includes a mechanism to lock the unit onto the shaft. The housing has a correspondingly sphered (concave) inside surface. Ball Bearing Units can accommodate moderate initial misalignment but normally do not permit axial displacement. UCP 211-32 NRB YAS 2

NRB Industrial (NIBL) Pillow Block Ball Bearings Unit provides easy slip-fit shaft mounting and additional shaft support. The bearing features seals with flared lips to provide a positive seal against dust, dirt, and other contaminants while effectively retaining the lubricant. Most types have large grease capacity. This feature facilitates more effective lubrication.

NRB manufactures Ball Bearing Units of UCP (~ YAS), UCF (~ YCJ), UCFL (~ YCJT), UCT (~ YTU), and UCFC (~ YAR) types in metric (mm) as well as imperial (inch) sizes. UCP 211-32 NRB YAS 2

Features

Radial Load Capability: Fair -- Axial Load Capability: Fair (Double Direction) -- High Speed Capability: Good -- Static Misalignment Capability: Good

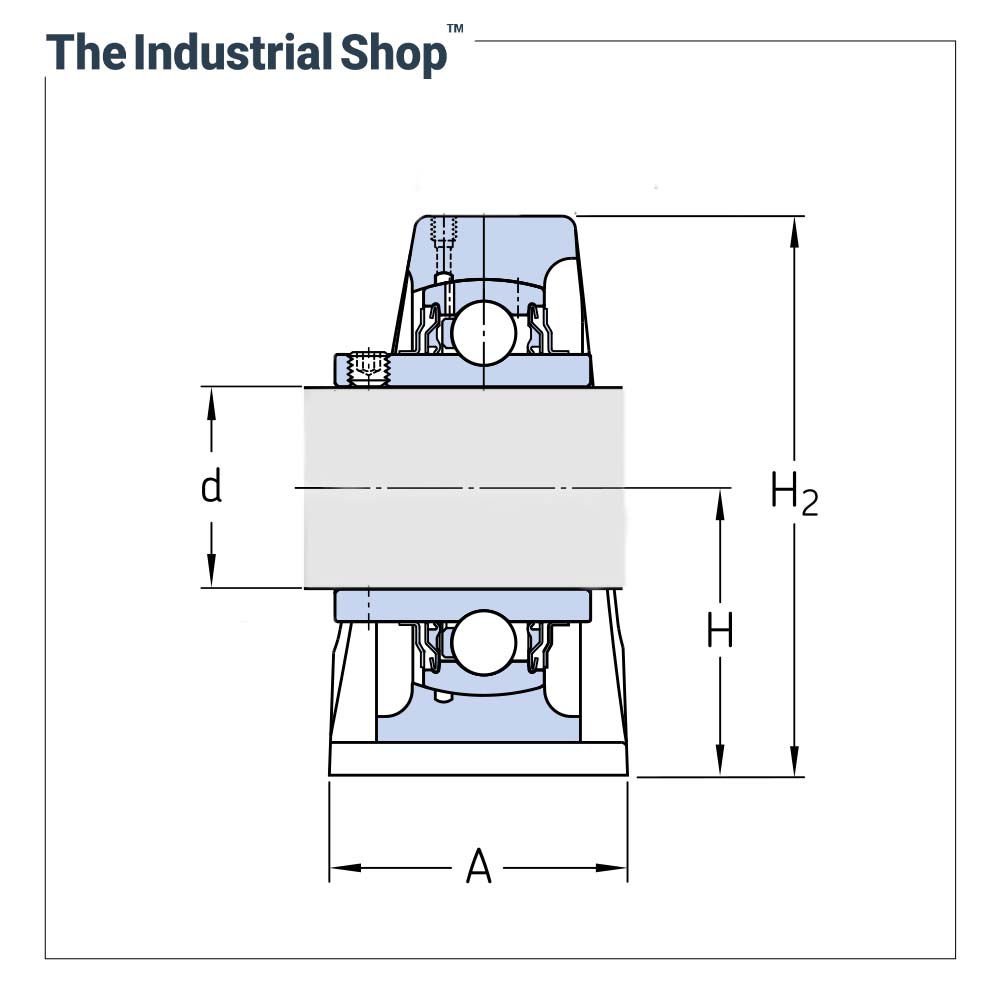

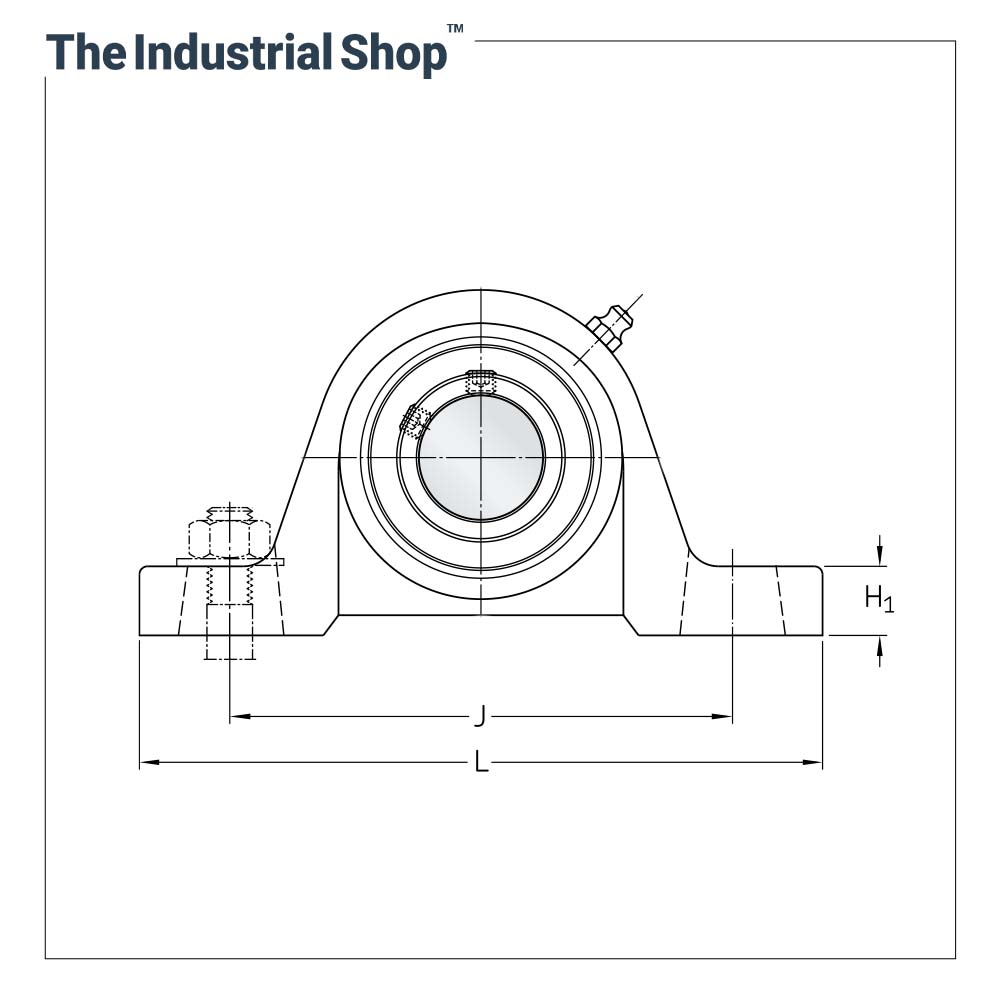

    Specifications

    Shaft Diameter (d) 2.0 inch (50.80 mm)
    Height from Base to Center of Bearing (H) 63.50 mm
    Height of Block (H2) 126.2 mm
    Width of Block Base (A) 58.7 mm
    Height of Block Base (H1) 20.6 mm
    Length of Block (L) 222.3 mm
    Distance between Fixing Bore (J) 176.2 mm
    Basic Dynamic Load Rating 39.2 kN
    Basic Static Load Rating 22.7 kN
    Speed Limit  3,450 r/min
    Housing Material Cast Iron
    Weight 3.60 kg
    Brand NRB Industrial (India)
    Catalogue (PDF) Download Here
    Authorized Distributor Certificate View Here



    GET THE MAXIMUM OUT OF YOUR NRB INDUSTRIAL BEARINGS!
    Selection Guide | Maintenance Handbook | Damage and Failure Analysis Handbook
