NRB Unit UCP 207 (35 mm)
NRB Unit UCP 207 (35 mm)
Couldn't load pickup availability
Summary
Item Code: YAS 35 (UCP 207)
Item Type: Pillow Block Ball Bearing Unit
Shaft Diameter (d): 35 mm
.
Description

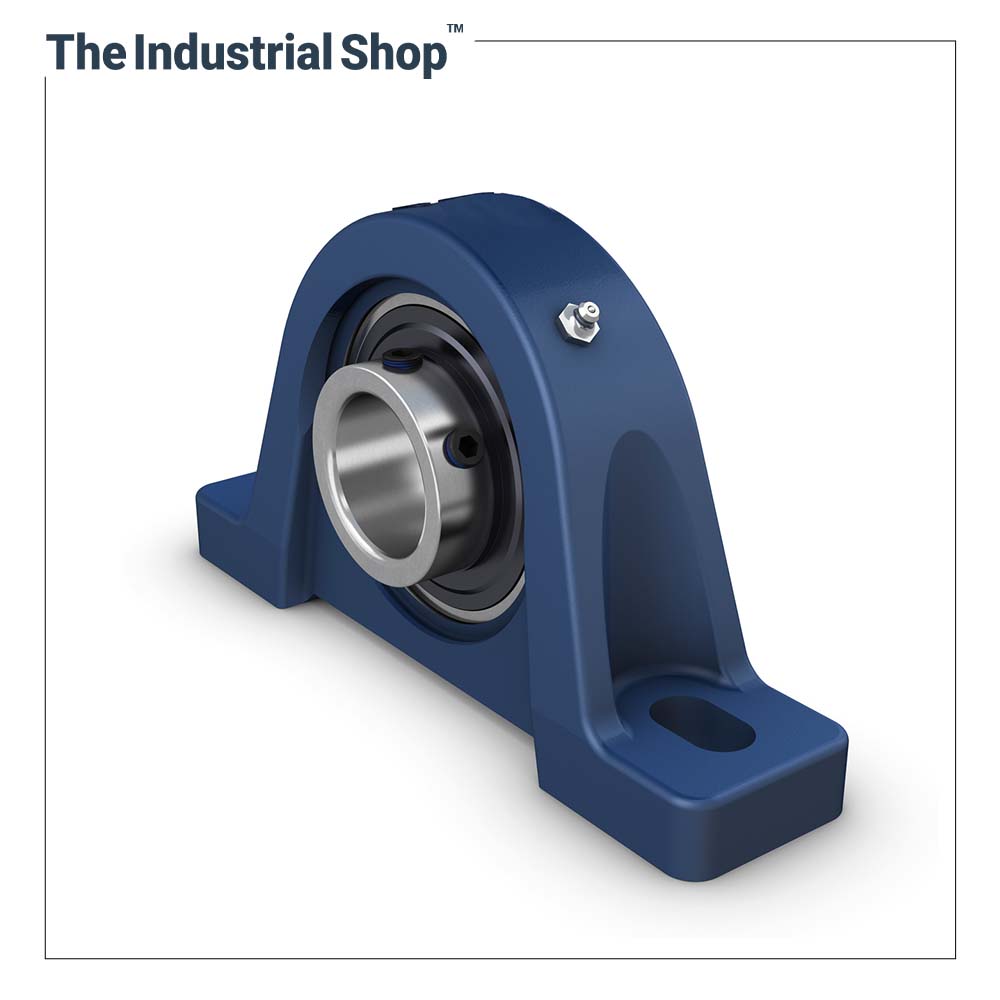

Ball Bearing Units consist of a deep groove ball bearing mounted in a housing that can be bolted to a support surface. The bearing has a sphered (convex) outside surface and an extended inner ring that includes a mechanism to lock the unit onto the shaft. The housing has a correspondingly sphered (concave) inside surface. Ball Bearing Units can accommodate moderate initial misalignment but normally do not permit axial displacement. UCP 207 NRB YAS 35
NRB Industrial (NIBL) Pillow Block Ball Bearings Unit provides easy slip-fit shaft mounting and additional shaft support. The bearing features seals with flared lips to provide a positive seal against dust, dirt, and other contaminants while effectively retaining the lubricant. Most types have large grease capacity. This feature facilitates more effective lubrication.
NRB manufactures Ball Bearing Units of UCP (~ YAS), UCF (~ YCJ), UCFL (~ YCJT), UCT (~ YTU), and UCFC (~ YAR) types in metric (mm) as well as imperial (inch) sizes. UCP 207 NRB YAS 35
Features

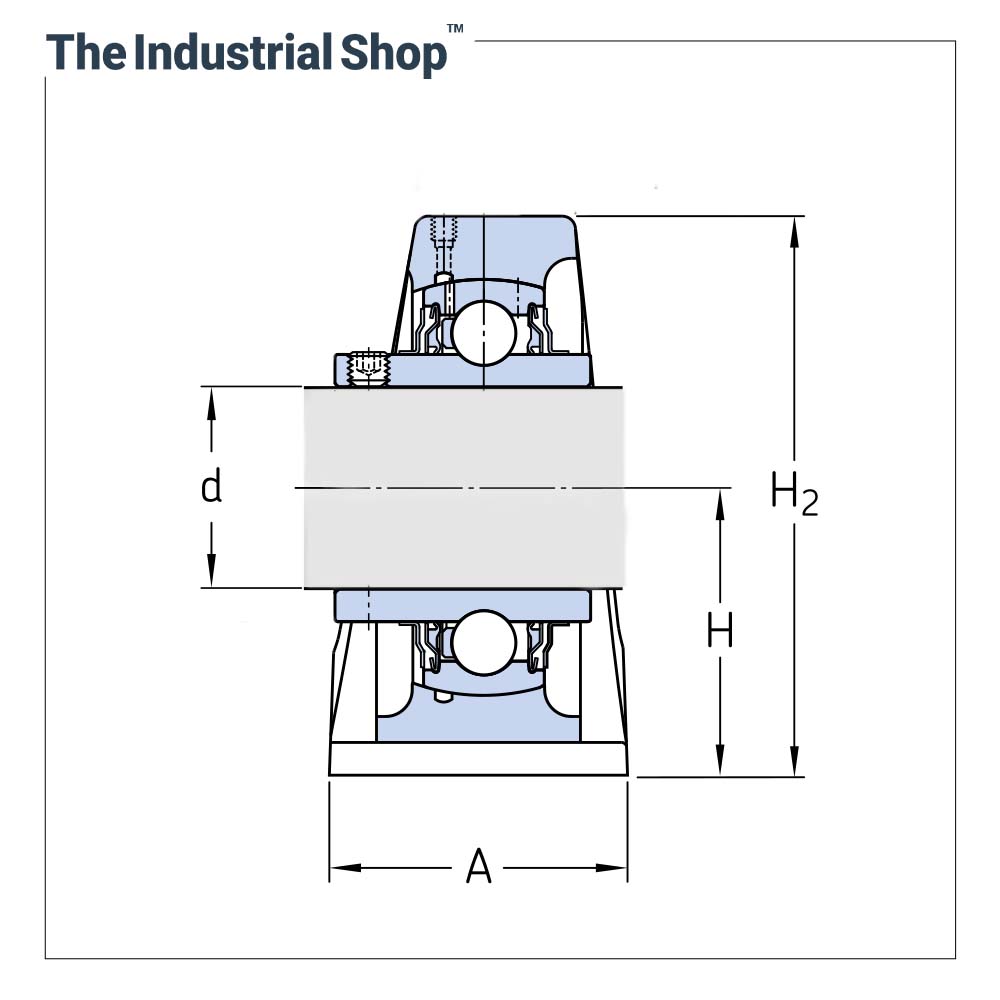

Specifications
| Shaft Diameter (d) | 35 mm |
| Height from Base to Center of Bearing (H) | 47.6 mm |
| Height of Block (H2) | 93.6 mm |
| Width of Block Base (A) | 45.2 mm |
| Height of Block Base (H1) | 18.3 mm |
| Length of Block (L) | 166.7 mm |
| Distance between Fixing Bore (J) | 130.2 mm |
| Basic Dynamic Load Rating | 28.5 kN |
| Basic Static Load Rating | 15.1 kN |
| Speed Limit | 4,750 r/min |
| Housing Material | Cast Iron |
| Weight | 1.50 kg |
| Brand | NRB Industrial (India) |
| Catalogue (PDF) | Download Here |
| Authorized Distributor Certificate | View Here |
