NRB Industrial (India)

NRB Support Roller NURT 20

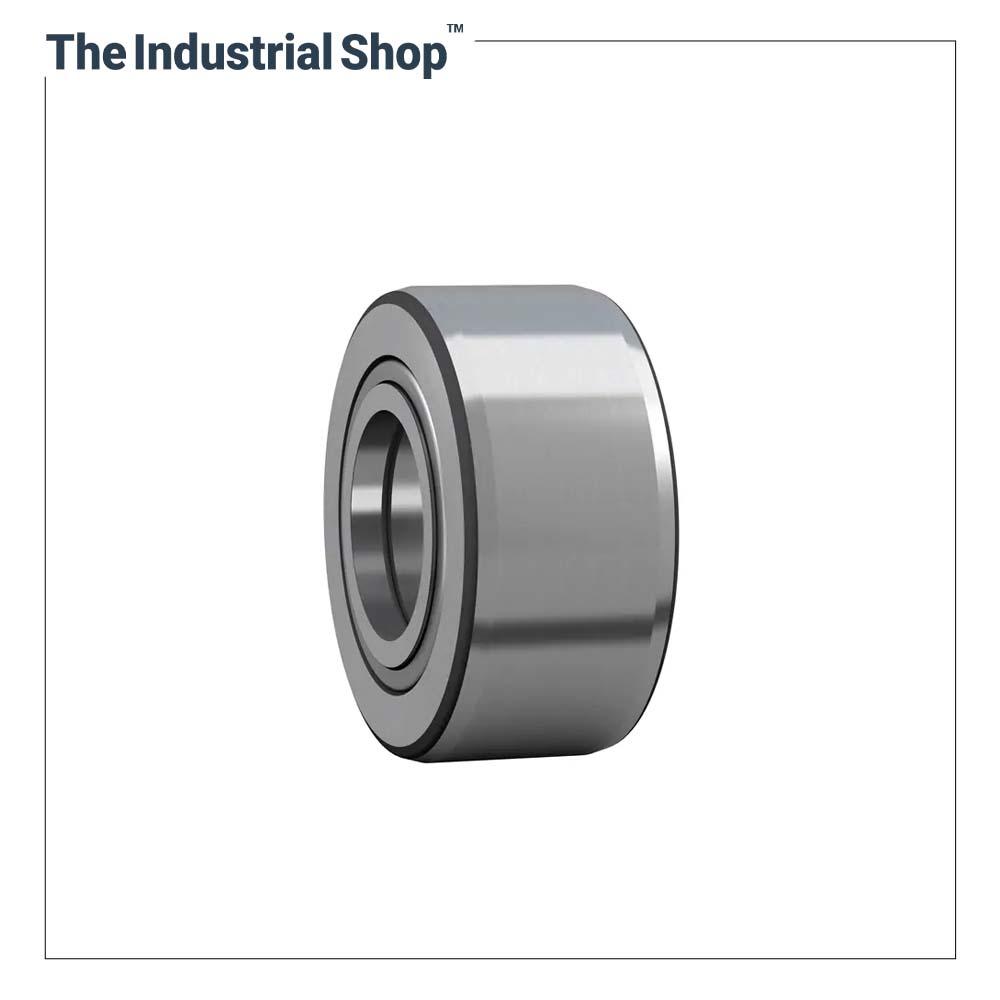

NRB Support Roller NURT 20

Rs. 1,080.00
Rs. 2,205.00 Rs. 1,080.00
Sale Sold out
Shipping calculated at checkout.

Summary

Item Code: NUTR 2047 (IKO NURT 20 R)
Item Type: Support Roller (Yoke-Type Track Roller)

Inner Diameter (ID): 20 mm
Outer Diameter (OD): 47 mm
Outer Ring Width (C): 24 mm
Inner Ring Width (B): 25 mm
.

Description

Support Rollers are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with an inner ring and have a thick-walled outer ring with a crowned running surface. They are supplied ready-to-mount.

NRB manufactures Track Rollers of Stud-Type (Cam Followers) as well as Yoke-Type (Support Rollers) and comes with a Crowned or Cylindrical Outer Ring.
.

Features

  • The thick-walled outer ring enables high radial loads while reducing distortion and bending stresses
  • The pressed-on flange ring enables support rollers to accommodate axial loads that can occur because of skew or tilting
    .

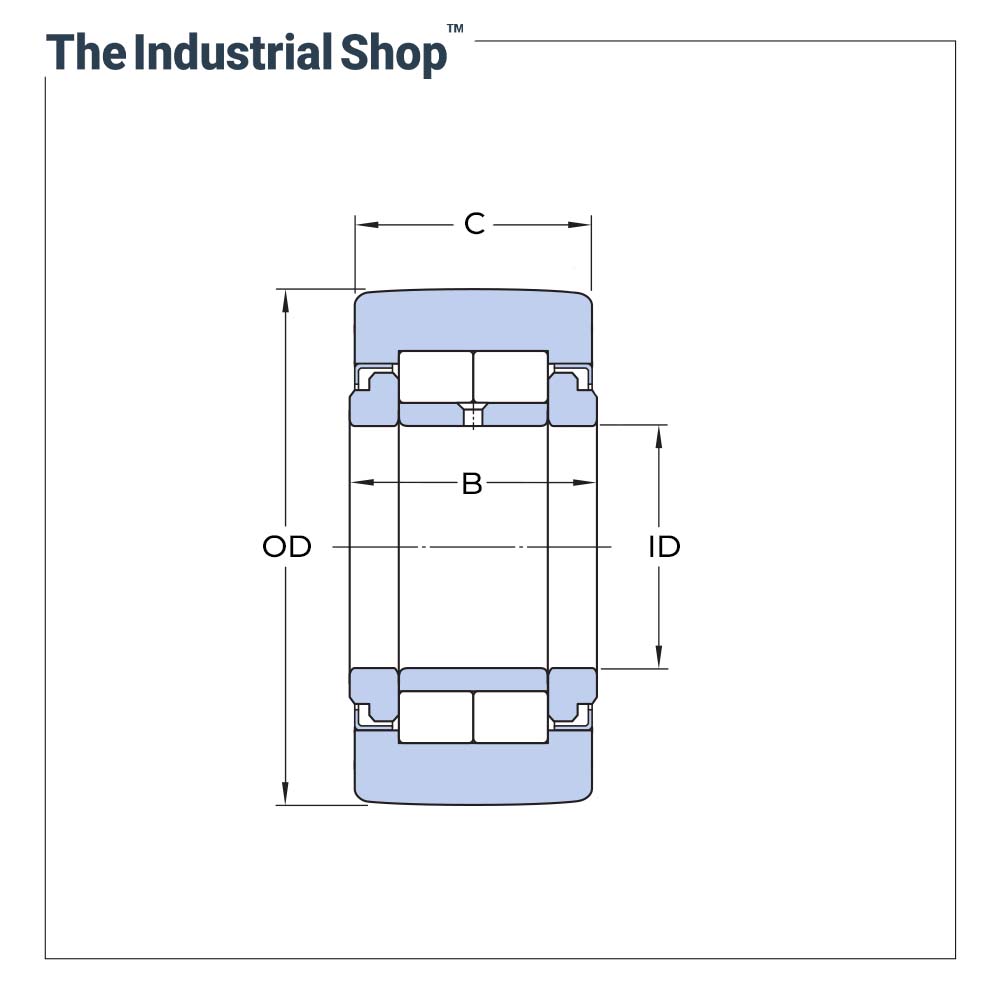

      Specifications

      Inner Diameter (ID) 20 mm
      Outer Diameter (OD) 47 mm
      Outer Ring Width (C) 24 mm
      Inner Ring Width (B) 25 mm
      Basic Dynamic Load Rating __ kN (Cage-Guided Type)
      __ kN (Full Complement Type)
      Basic Static Load Rating __ kN (Cage-Guided Type)
      __ kN (Full Complement Type)
      Speed Limit __ r/min (Cage-Guided Type)
      __ r/min (Full Complement Type)
      Weight __ kg
      Brand NRB Industrial (India)
      Catalogue (PDF) Download Here
      Authorized Distributor Certificate View Here
