NRB Industrial (India)

NRB Needle Roller Bearing RNA 4904

NRB Needle Roller Bearing RNA 4904

Rs. 228.00
Rs. 424.00 Rs. 228.00
Sale Sold out
Shipping calculated at checkout.

Summary

Item Code: RNA 4904
Item Type: Cage-Guided Needle Roller Bearing (without Inner Ring)

Inner Diameter (ID): 25 mm
Outer Diameter (OD): 37 mm
Width (W): 17 mm
.

Description

Caged Needle Bearings possess an outer ring made from through-hardened bearing steel. The cage guides the needles and retains them in the outer ring. The bearings may be used without an inner ring if the shaft journal serving as a raceway is of sufficient hardness and has the correct surface finish.

NRB Industrial (NIBL) Needle Roller Bearing is designed for high static and dynamic load capacities and has the ability to withstand overloading, shocks, and vibration.

NRB manufactures Needle Roller Bearings with and without inner rings.
.

Features

  • In applications where less space is available, needle roller bearings offer a very compact solution
  • Despite their low cross-sectional height, they have a high load-carrying capacity
  • The possibility of assembling inner and outer rings separately permits interference fits for shaft and housing and also enables easy maintenance

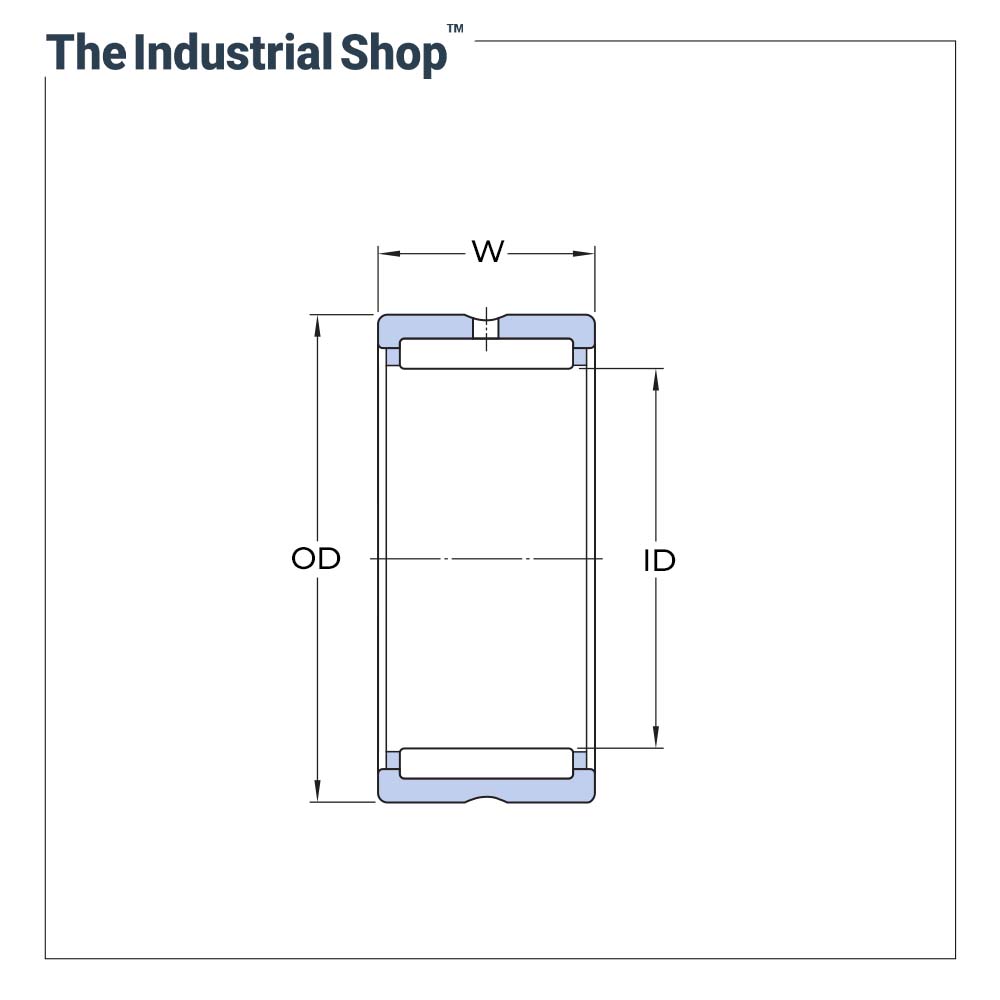

    Specifications

    Inner Diameter (ID) 25 mm
    Outer Diameter (OD) 37 mm
    Width (W) 17 mm
    Basic Dynamic Load Rating 21.7 kN
    Basic Static Load Rating 26.2 kN
    Speed Limit (with Oil) 16,000 r/min
    Weight 0.056 kg
    Brand NRB Industrial (India)
    Catalogue (PDF) Download Here
    Authorized Distributor Certificate View Here



    GET THE MAXIMUM OUT OF YOUR NRB INDUSTRIAL BEARINGS!
    Selection Guide | Maintenance Handbook | Damage and Failure Analysis Handbook
