NRB Industrial (India)
NRB Needle Roller Bearing RNA 2140
NRB Needle Roller Bearing RNA 2140
Couldn't load pickup availability
Summary
Item Code: RNA 2140
Item Type: Full Complement Needle Roller Bearing (without Inner Ring)
Inner Diameter (ID): 158 mm
Outer Diameter (OD): 180 mm
Width (W): 36 mm
.
Description
Full Complement Needle Roller Bearings have a through-hardened outer ring. They are particularly suitable for operations involving oscillating motion but may also accept high-speed conditions where good alignment is necessary. This can more easily be achieved using an inner ring with a convex raceway (inner rings with the suffix R6). The retention of the needles in the outer ring enables the bearing to be installed easily during assembly. Nadella
NRB Industrial (NIBL) Needle Roller Bearing is designed for high static and dynamic load capacities and has the ability to withstand overloading, shocks, and vibration.
NRB manufactures Needle Roller Bearings with and without inner rings.
.
Features
- In applications where less space is available, needle roller bearings offer a very compact solution
- Despite their low cross-sectional height, they have a high load-carrying capacity
- The possibility of assembling inner and outer rings separately permits interference fits for shaft and housing and also enables easy maintenance

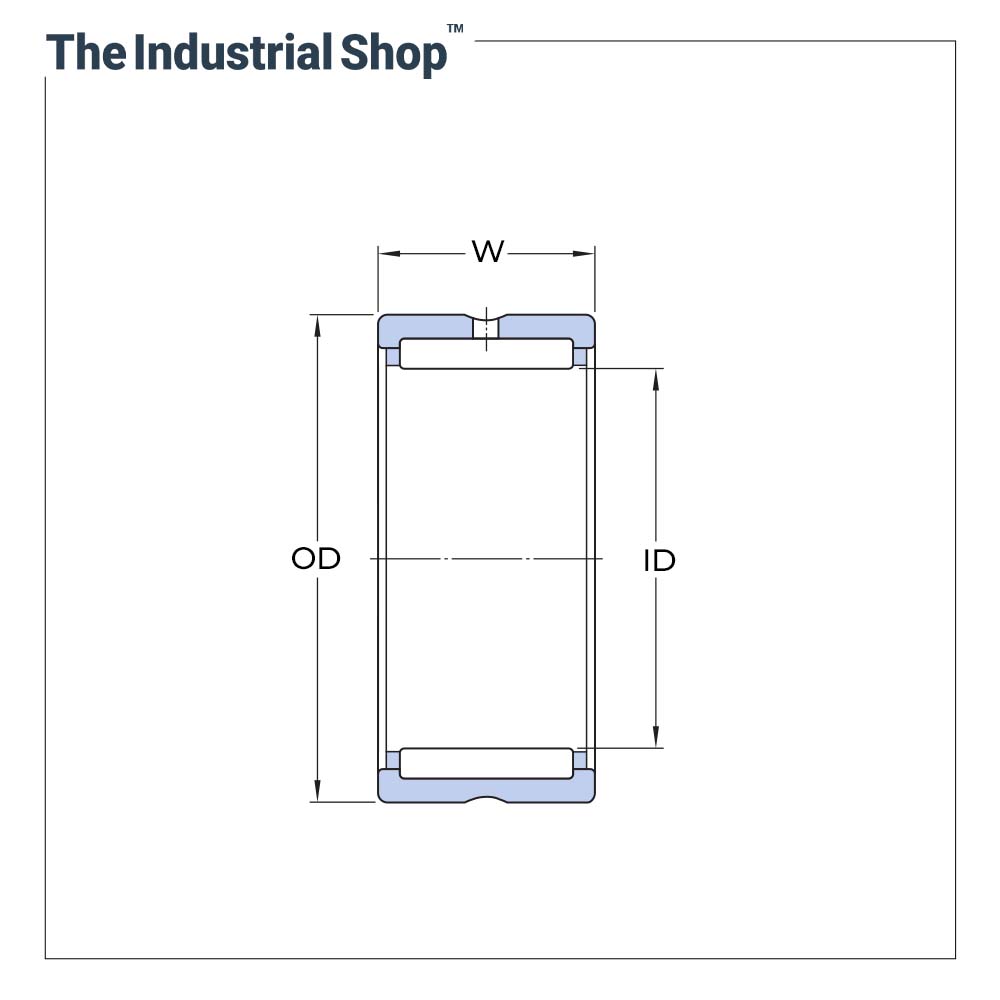

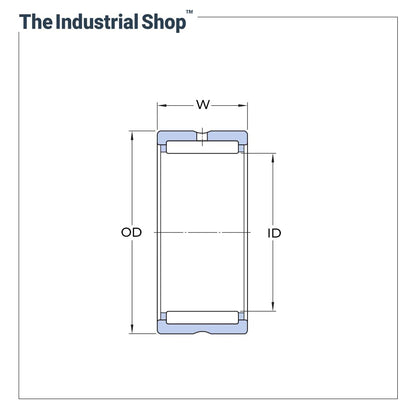

Specifications
| Inner Diameter (ID) | 158 mm |
| Outer Diameter (OD) | 180 mm |
| Width (W) | 36 mm |
| Basic Dynamic Load Rating | 157.0 kN |
| Basic Static Load Rating | 455.0 kN |
| Speed Limit (with Oil) | 2,400 r/min |
| Weight | 1.478 kg |
| Brand | NRB Industrial (India) |
| Catalogue (PDF) | Download Here |
| Authorized Distributor Certificate | View Here |
