NRB Insert Bearing UEL 206 (30 mm)
NRB Insert Bearing UEL 206 (30 mm)
Couldn't load pickup availability
Summary
Item Code: GE 30 KRRB (UEL 206)

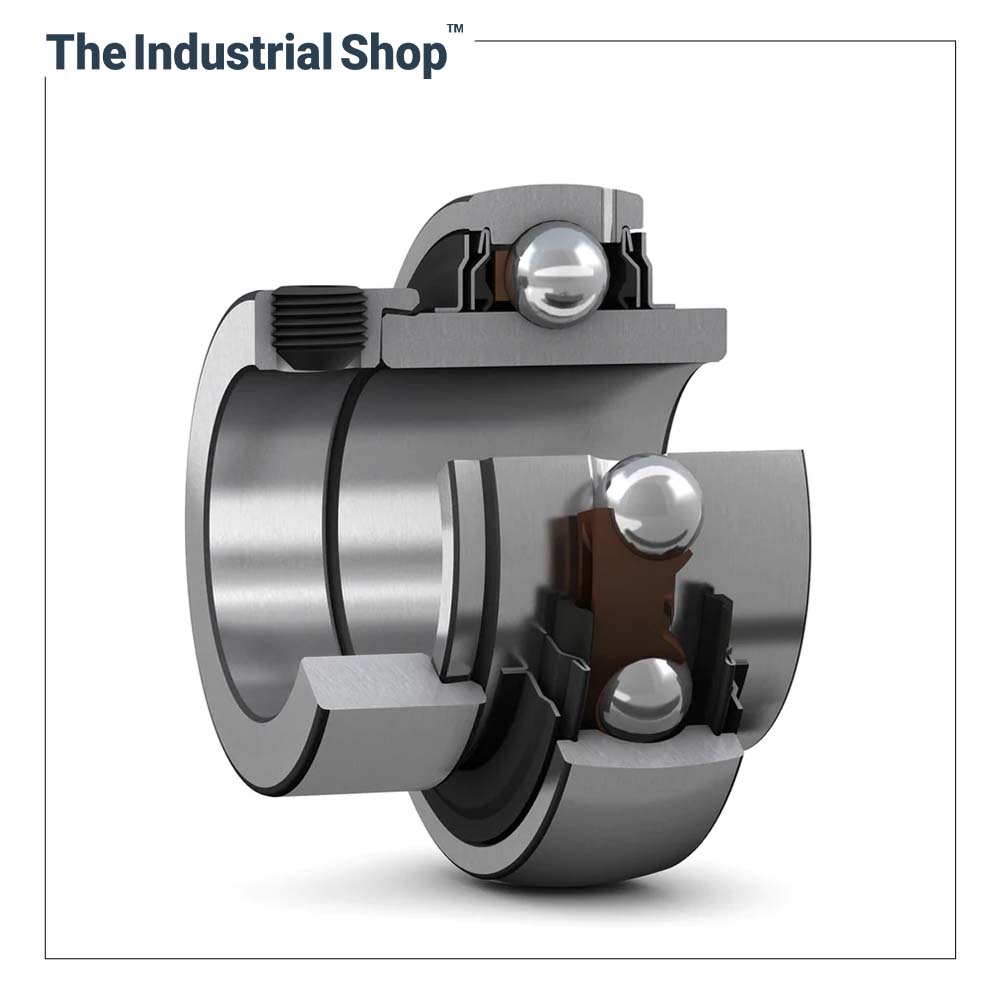

Item Type: UEL Insert Bearing with Eccentric Collar (For use in Ball Bearing Units)
Shaft Diameter (d): 30 mm
.
Description
Insert bearings are based on sealed deep groove ball bearings in the 62 and 63 series, but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.
NRB Industrial (NIBL) UEL Insert Bearings are wide inner ring ball bearings with a provision for relubrication. They are designed especially for extremely dirty or wet conditions. These bearings feature R-Sears with flared lips that firmly contact the ground O.D. of the Inner ring to provide a positive seal against dust, dirt, and other contaminants while effectively retaining the lubricant.
NRB manufactures Insert Bearings of UC (~ GYE and GY), UEL (~ GE), and AEL (~ GRAE and RAE) types in metric (mm) as well as imperial (inch) sizes.
.
Features
- The different locking methods enable quick and easy mounting of insert bearings onto the shaft
- The spherically shaped outside surface helps accommodate initial misalignment by tilting inside the housing
- The different sealing solutions available provide a long service life for a wide variety of applications with high contamination levels

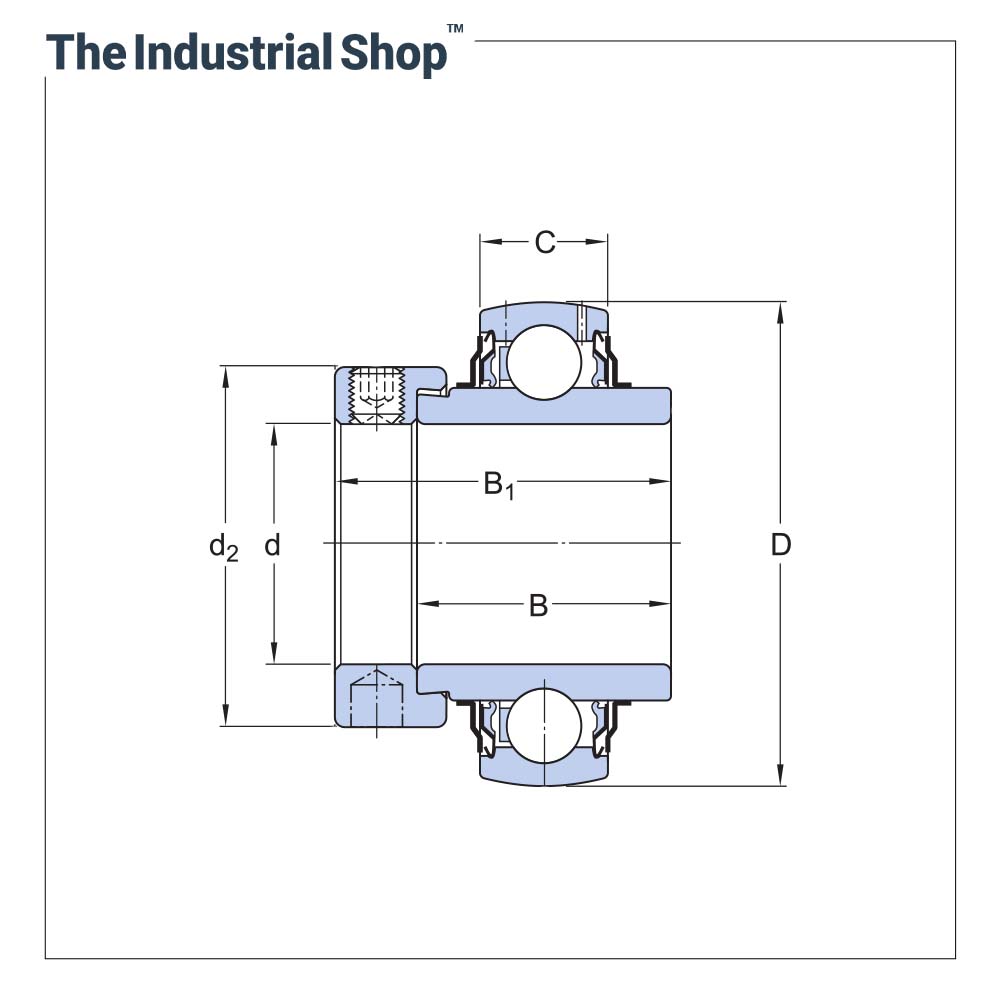

Specifications
| Shaft Diameter (d) | 30 mm |
| Outer Diameter (D) | 62 mm |
| Width of Inner Ring (B) | 36.51 mm |
| Width of Outer Ring (C) | 18 mm |
| Outside Diameter of Eccentric Collar (d2) | 44.1 mm |
| Overall Bearing Width (B1) | 48.4 mm |
| Basic Dynamic Load Rating | 21.8 kN |
| Basic Static Load Rating | 11.1 kN |
| Speed Limit | 5,500 r/min |
| Weight | 0.376 kg |
| Brand | NRB Industrial (India) |
| Catalogue (PDF) | Download Here |
| Authorized Distributor Certificate | View Here |
