NRB Cam Follower CF 6

NRB Cam Follower CF 6

Regular price Rs. 318.00
Regular price Rs. 650.00 Sale price Rs. 318.00
Sale Sold out
Shipping calculated at checkout.
Item Code (Item Type)

Summary

Item Code: KR 16 EE (IKO CF 6 BUUR), KRV 16 EE (IKO CF 6 VBUUR)
Item Type: Cam Follower (Stud-Type Track Roller)

Stud Diameter (d): 6 mm
Outer Diameter (D): 16 mm
Total Length (L): 28 mm
Outer Ring Width (C): 11 mm
.

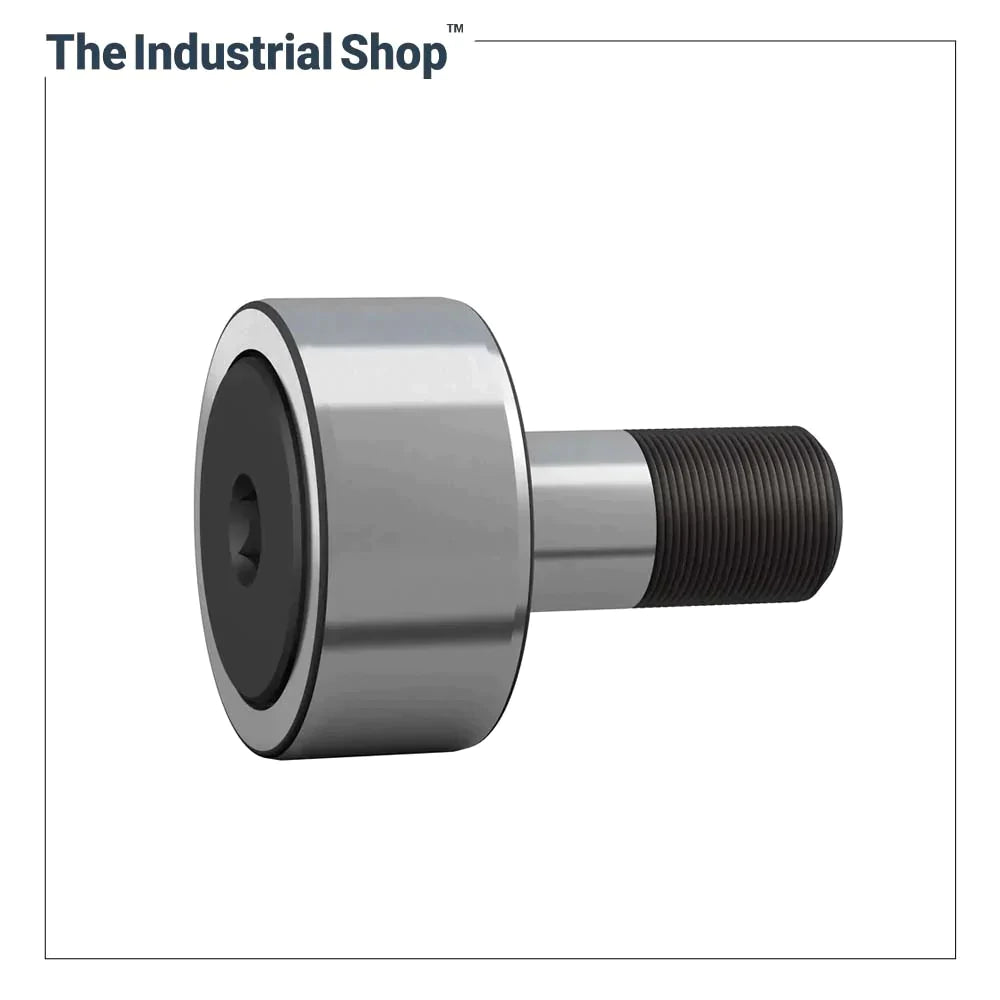

Description

Cam Followers are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. These bearings can be relubricated via the lubrication holes provided at the ribbed face of the stud as well as at the threaded end.

NRB manufactures Track Rollers of Stud-Type (Cam Followers) as well as Yoke-Type (Support Rollers) and comes with a Crowned or Cylindrical Outer Ring.
.

Features

  • The thick-walled outer ring enables high radial loads while reducing distortion and bending stresses
  • The integral flange (stud head) and the pressed-on flange ring enable cam followers to accommodate axial loads that can occur because of skew or tilting
  • The crowned outer ring is beneficial for applications where outer ring tilting relative to the track may occur or where edge stresses need to be minimized
    .

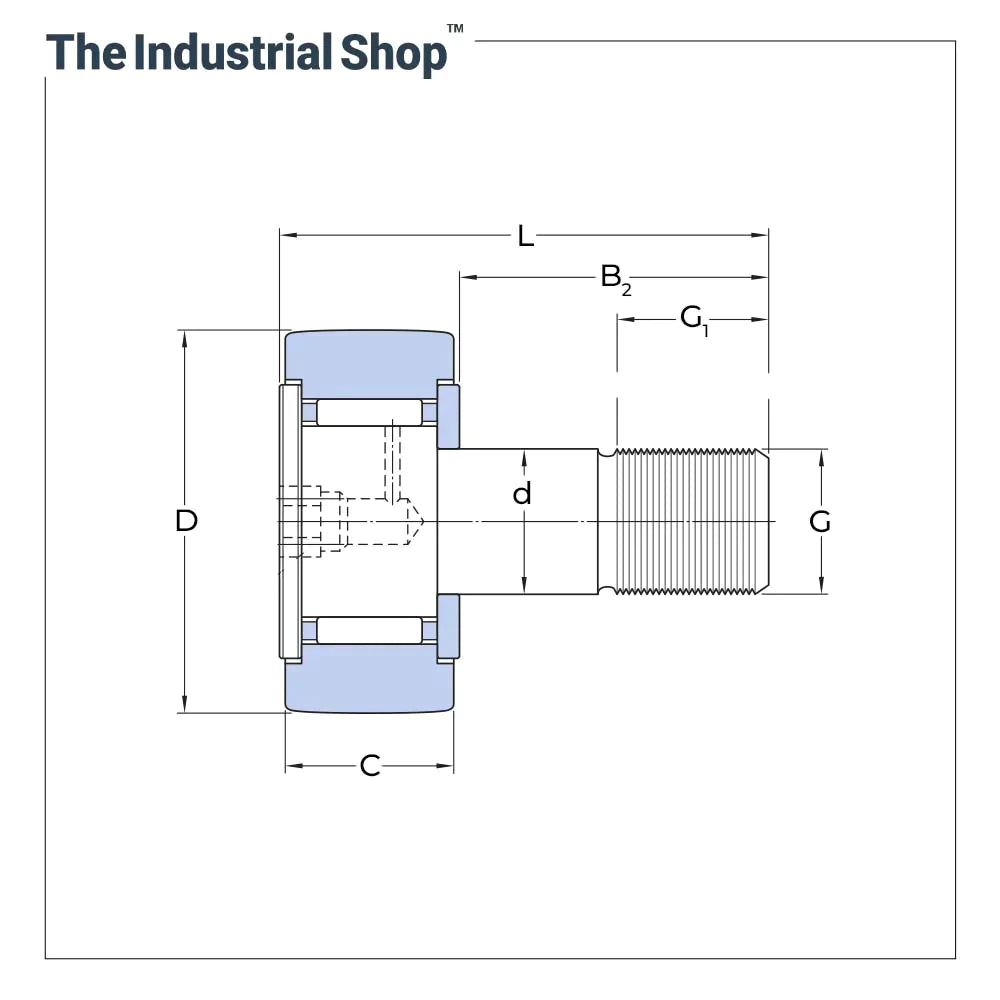

      Specifications

      Stud Diameter (d) 6 mm
      Outer Diameter (D) 16 mm
      Total Length (L) 28 mm
      Outer Ring Width (C) 11 mm
      Length of Stud Shank (B2) 16 mm
      Thread of Stud (G) M6 x 1
      Length of Thread (G1) 8 mm
      Basic Dynamic Load Rating 3.15 kN (Cage-Guided Type)
      4.9 kN (Full Complement Type)
      Basic Static Load Rating 3.35 kN (Cage-Guided Type)
      6.6 kN (Full Complement Type)
      Speed Limit 14,000 r/min (Cage-Guided Type)
      3,800 r/min (Full Complement Type)
      Weight ~0.018 kg
      Brand NRB Industrial (India)
      Catalogue (PDF) Download Here
      Authorized Distributor Certificate View Here
