Nachi (Japan)

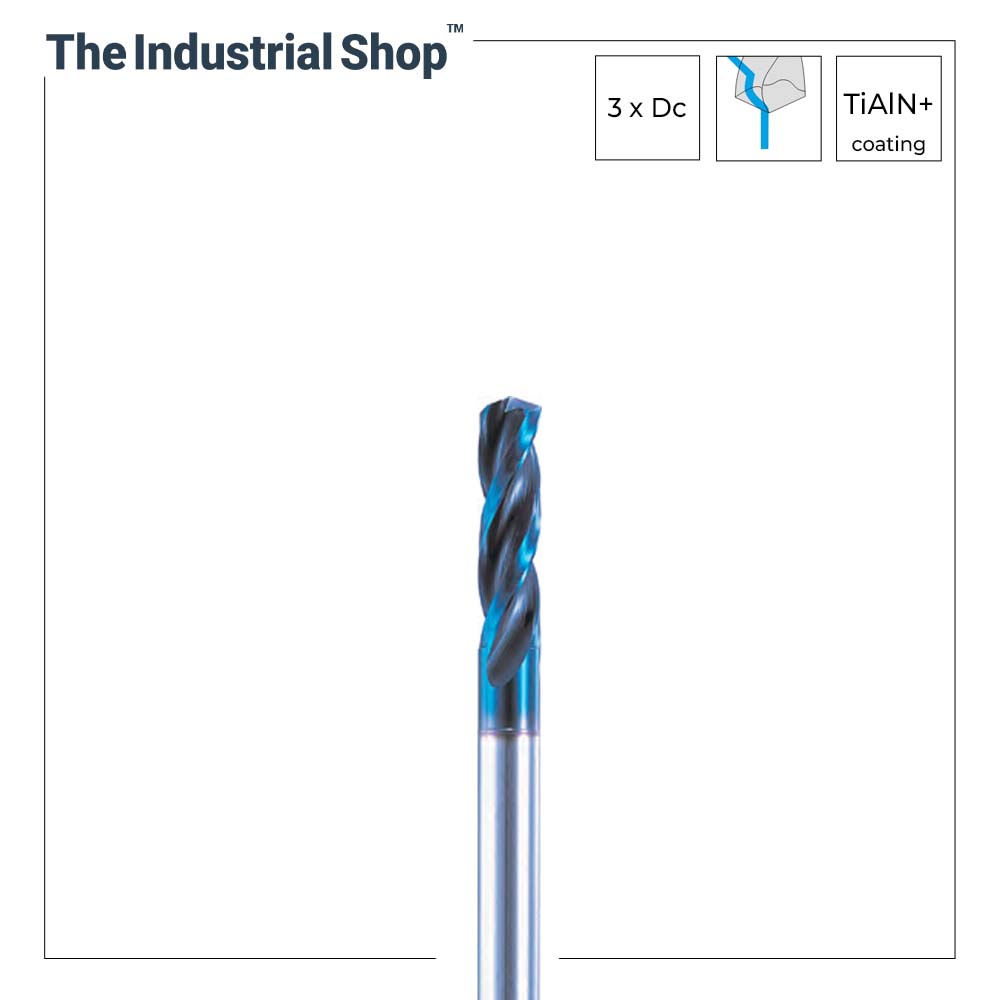

Nachi 7.1 mm to 8.0 mm L x D 3 Aqua 3 Flute Carbide Drill

Nachi 7.1 mm to 8.0 mm L x D 3 Aqua 3 Flute Carbide Drill

Regular price Rs. 6,306.00
Regular price Rs. 8,408.00 Sale price Rs. 6,306.00
Sale Sold out
Shipping calculated at checkout.
Drill Size


Any AQD3F Series Drill between size 7.1 mm to 8.0 mm (Non-Through Coolant)
Drill Series: Aqua 3 Flute Carbide Drill
Tool Material: Solid Carbide with Multi-layer TiAlN Coating and Lubrication Film
Workpiece Material: Alloy Steel, Stainless Steel, Cast Iron, Hardened Steel, etc.


Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.


High precision and high efficiency 3 Flute Drill is particular about no reaming.

  • A 3 flute design capable of high-accuracy drilling without using a reamer

  • Optimized flute geometry and cutting-edge design improve chip fragmentation and evacuation for stable drilling

  • Features fine cemented carbide for excellent chipping resistance and Aqua coating for enhanced resistance to heat and wear

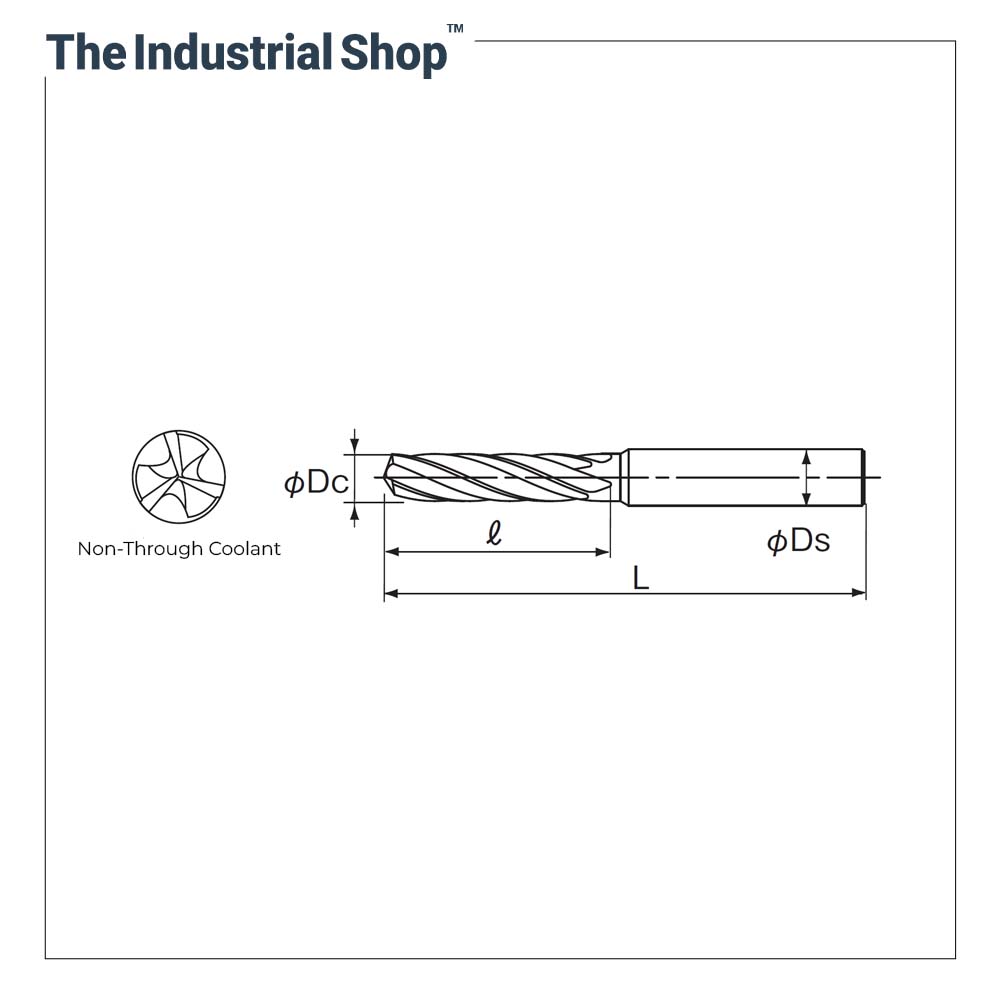

 Flute Length (l)  34 mm (for Drill Size 7.1 mm to 7.5 mm)
37 mm (for Drill Size 7.6 mm to 8.0 mm)
Total Length (L) 78 mm (for Drill Size 7.1 mm to 7.5 mm)
81 mm (for Drill Size 7.6 mm to 8.0 mm)
Shank Dia (Ds) 8 mm
Point Angle 150°
Drill Material Solid Carbide
Drill Coating Multi-layer TiAlN Coating with Lubrication Film
Coating Color Aqua Blue
Brand Nachi (Japan)
Catalogue (PDF) Download Here
Authorized Distributor Certificate View Here


Recommended Cutting Parameters | Nachi Tool Solutions App (iOS | Android)
