Nachi (Japan)

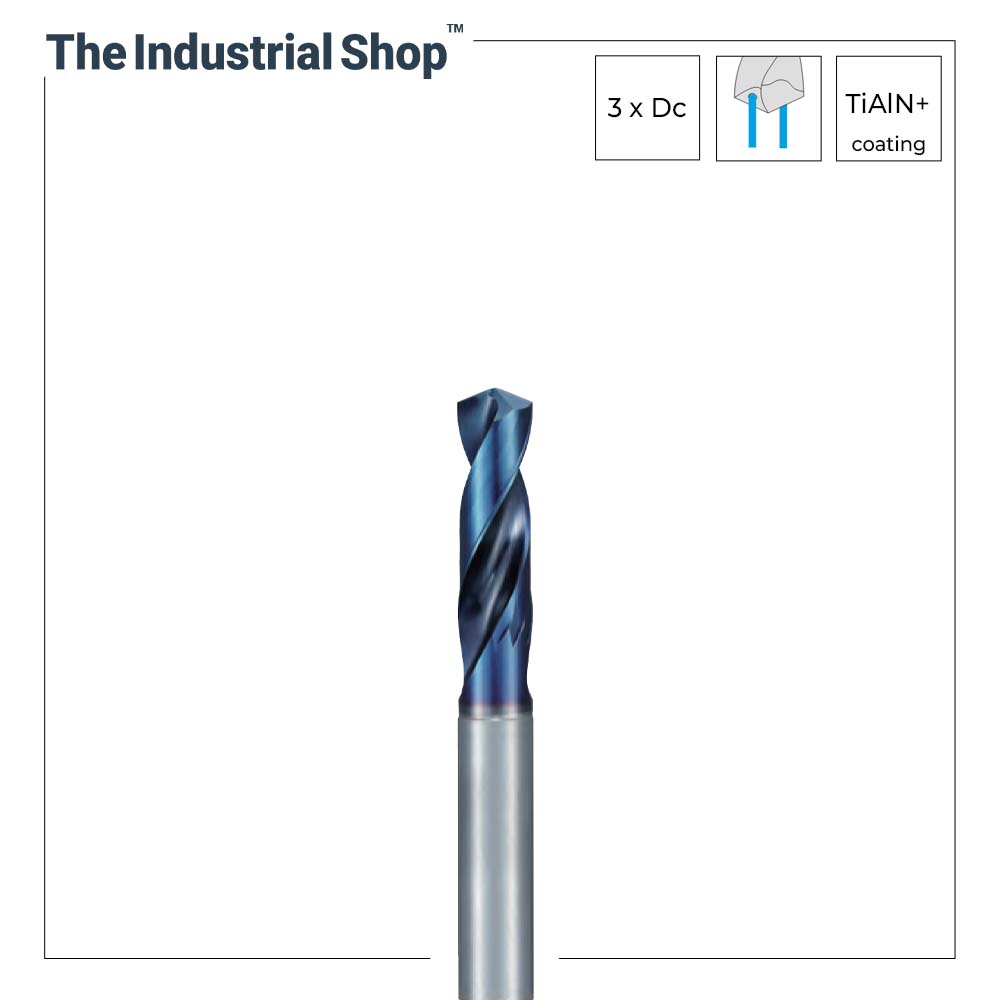

Nachi 6.8 mm L x D 3 AquaREVO Carbide Drill (Through Coolant)

Nachi 6.8 mm L x D 3 AquaREVO Carbide Drill (Through Coolant)

Regular price Rs. 6,147.00
Regular price Rs. 9,458.00 Sale price Rs. 6,147.00
Sale Sold out

Summary

Item Code: AQRVDOH3D0680
Drill Series: General Purpose Carbide Drill (AquaREVO Series)
Drill Size: 6.8 mm (Through Coolant)
Lc: 37 mm (L x D 3)
Tool Material: Solid Carbide with Multi-layer REVO-D Coating and Lubrication Film
Workpiece Material: Alloy Steel, Stainless Steel, Cast Iron, Non-ferrous Metals, etc.


Description

Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.

AquaREVO carbide drills are designed to improve all facets of drilling. Its unique design performs at a high level at various speeds and feeds in a wide range of materials. An all-new substrate, geometry, and coating provide long tool life, even at heavier feed rates. REVO is offered in solid carbide, coolant-through carbide, and micro carbide options.
.

Features

All New Material, Design, and Coating dramatically improves all functions of drilling!

  • Newly developed carbide material adds both hardness and toughness
  • New straight cutting edge breaks up cutting stress and improves chipping resistance
  • Newly developed REVO-D coating provides high oxidation resistance and wear resistance. Super smooth surface treatment generates low friction and enables smooth chip evacuation.
    .
New Oil-Hole Design: REVO Power Cooler
  • The amount of coolant flow and the cross-sectional area of the oil-hole are more than twice that of a regular drill.
  • Increased flow rate and flow velocity around corners

.

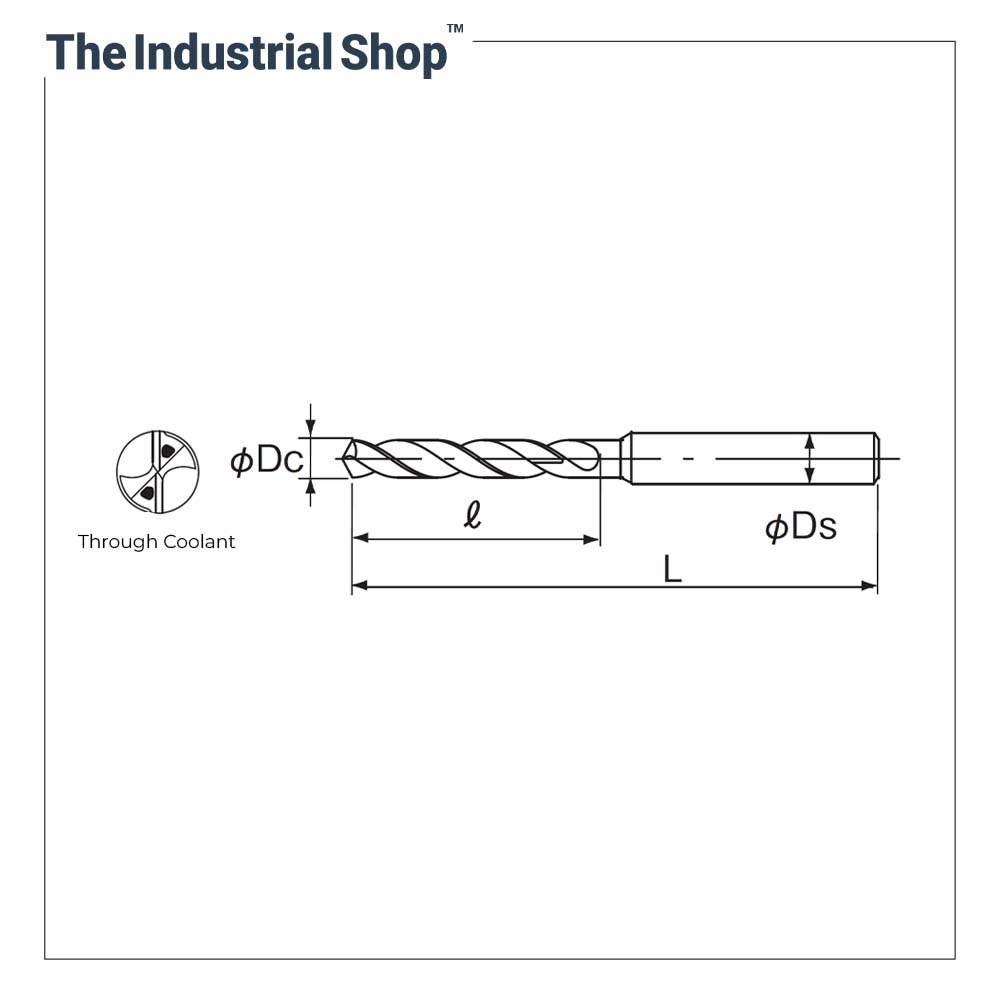

Specifications

Flute Length (l) 37 mm
Total Length (L) 88 mm
Shank Dia (Ds) 7 mm
Point Angle 135°
Drill Material Solid Carbide
Drill Coating Multi-layer REVO-D Coating with Lubrication Film
Coating Color Aqua Blue
Brand Nachi (Japan)
Catalogue (PDF) Download Here
Authorized Distributor Certificate View Here


GET THE MAXIMUM OUT OF YOUR NACHI CUTTING TOOLS!
Recommended Cutting Parameters | Nachi Tool Solutions App (iOS | Android)
