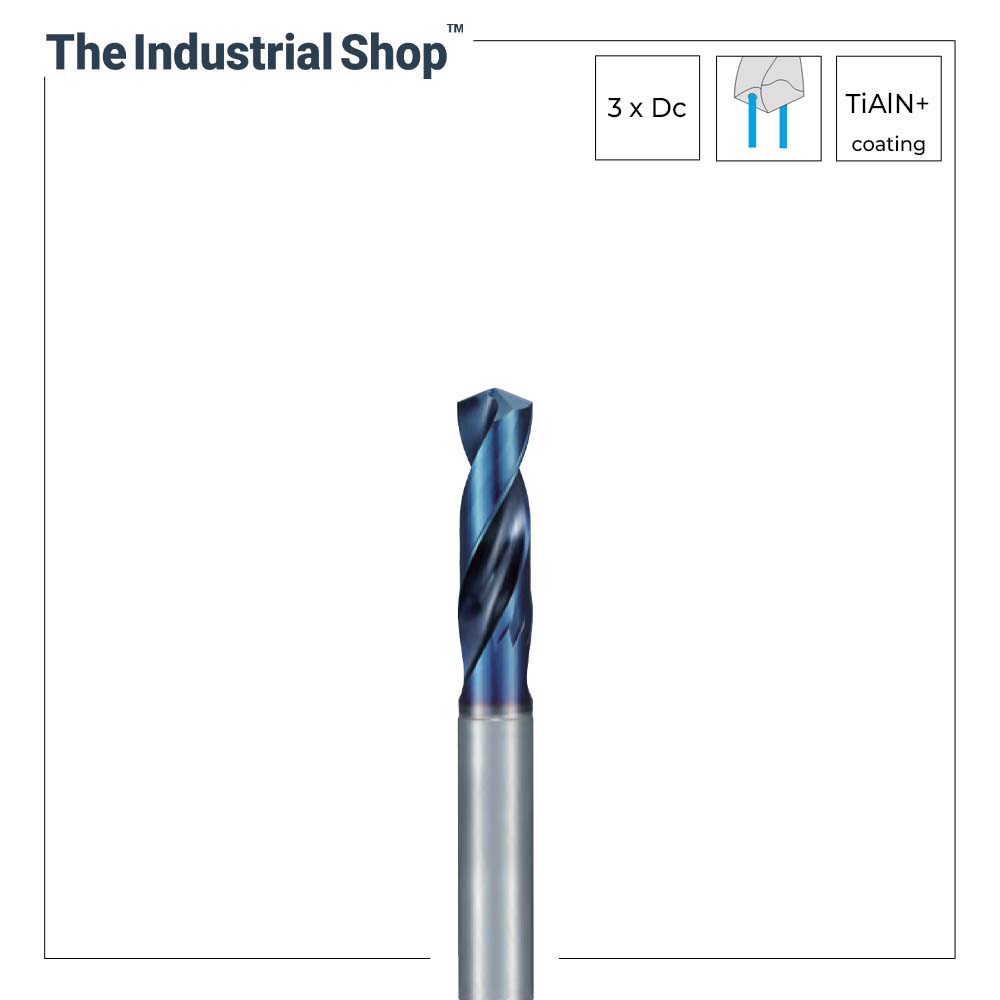

Nachi 6.1 mm to 6.5 mm L x D 3 AquaREVO Carbide Drill (Through Coolant)

Summary

Any AQRVDOH3D Series Drill between size 6.1 mm to 6.5 mm (Through Coolant)
Drill Series: General Purpose Carbide Drill (AquaREVO Series)
Lc: 34 mm (L x D 3)
Tool Material: Solid Carbide with Multi-layer REVO-D Coating and Lubrication Film
Workpiece Material: Alloy Steel, Stainless Steel, Cast Iron, Non-ferrous Metals, etc.

Description

Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.

AquaREVO carbide drills are designed to improve all facets of drilling. Its unique design performs at a high level at various speeds and feeds in a wide range of materials. An all-new substrate, geometry, and coating provide long tool life, even at heavier feed rates. REVO is offered in solid carbide, coolant-through carbide, and micro carbide options.
.

Features

All New Material, Design, and Coating dramatically improves all functions of drilling!

• Newly developed carbide material adds both hardness and toughness
• New straight cutting edge breaks up cutting stress and improves chipping resistance
• Newly developed REVO-D coating provides high oxidation resistance and wear resistance. Super smooth surface treatment generates low friction and enables smooth chip evacuation.
  .

• The amount of coolant flow and the cross-sectional area of the oil-hole are more than twice that of a regular drill.
• Increased flow rate and flow velocity around corners

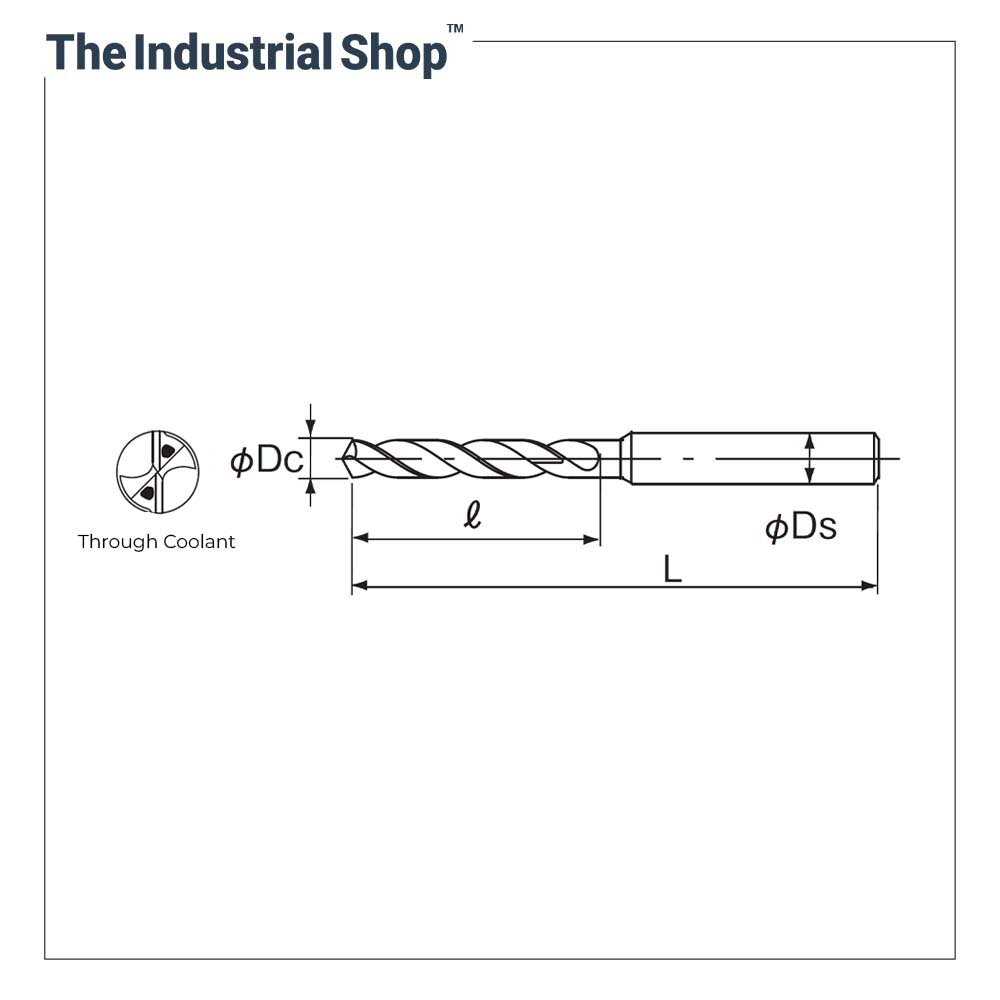

Specifications
