Nachi (Japan)

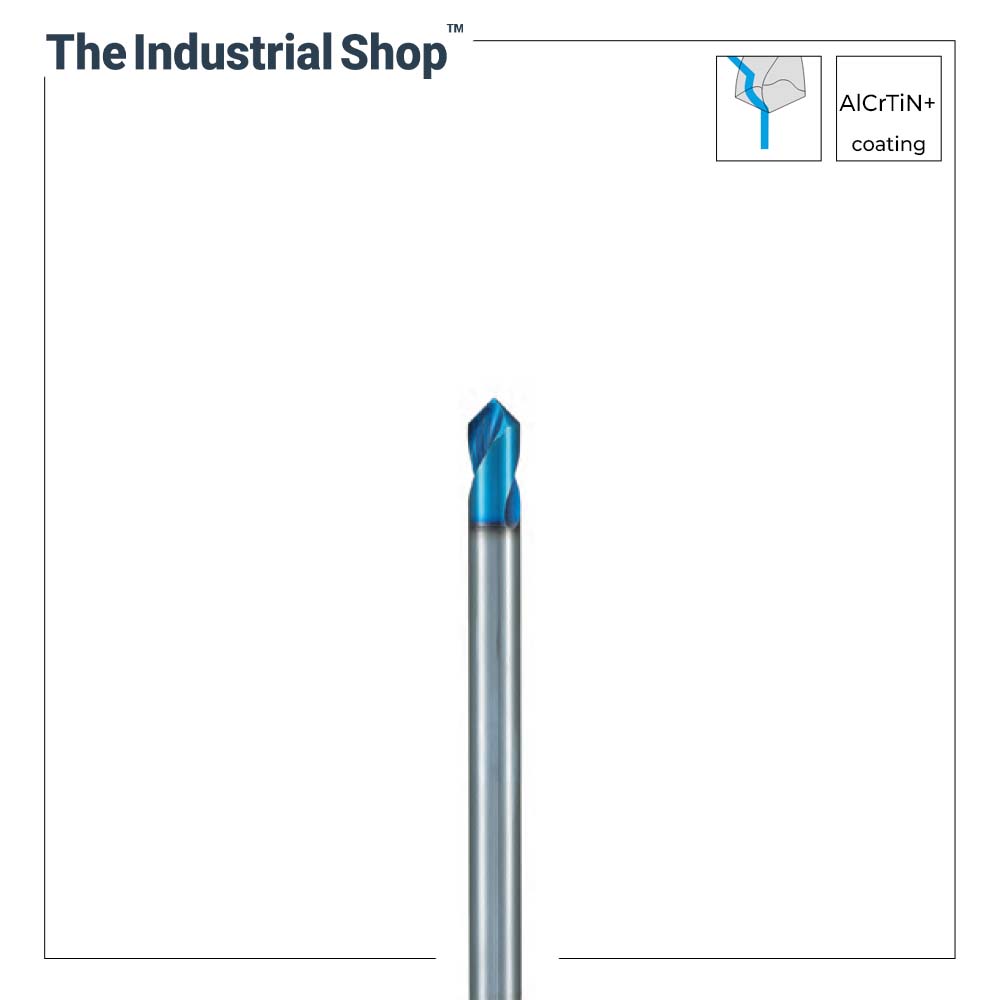

Nachi 6.0 mm Multi-function Carbide Drill

Nachi 6.0 mm Multi-function Carbide Drill

Regular price Rs. 0.00
Regular price Rs. 0.00 Sale price Rs. 0.00
Sale Sold out
Shipping calculated at checkout.
Apex Angle (θ)

Summary

Item Code: AQDEXST0600-θ
Drill Series: Multi-function Carbide Drill having Aqua EX (AlCrTiN+) Coating
Drill Size: 6.0 mm (Non-Through Coolant)
Lc: 15 mm
Tool Material: Solid Carbide with Multi-layer AlCrTiN Coating and Lubrication Film
Workpiece Material: Alloy Steel, Stainless Steel, Cast Iron, Non-ferrous Metals, etc.
.

Description

Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.
.

Features

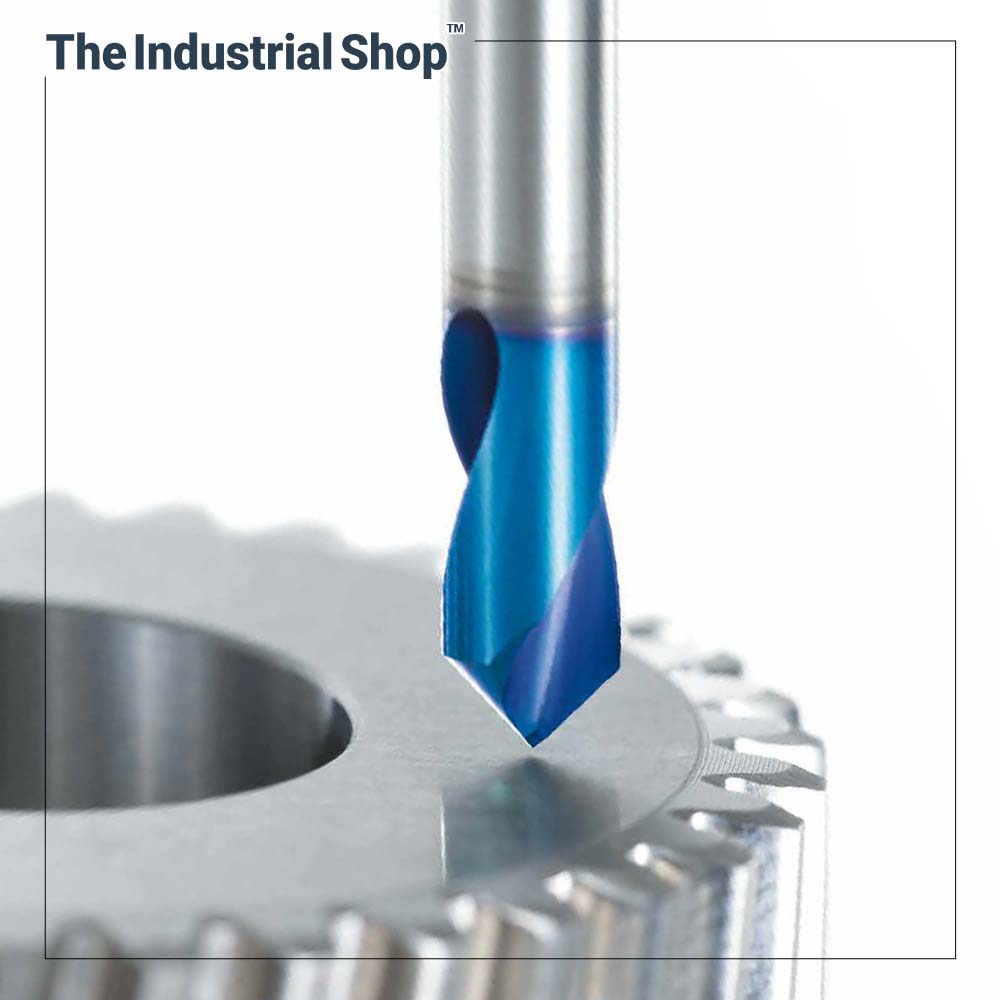

Multi-function Drill for Centering, Chamfering, and V-grooving.

  • Firmly engages the surface for high positioning accuracy
  • Sharp cutting edge allows for a clean machined surface
  • Available in four chamfer angles (60°, 90°, 120°, 140°)

    Specifications

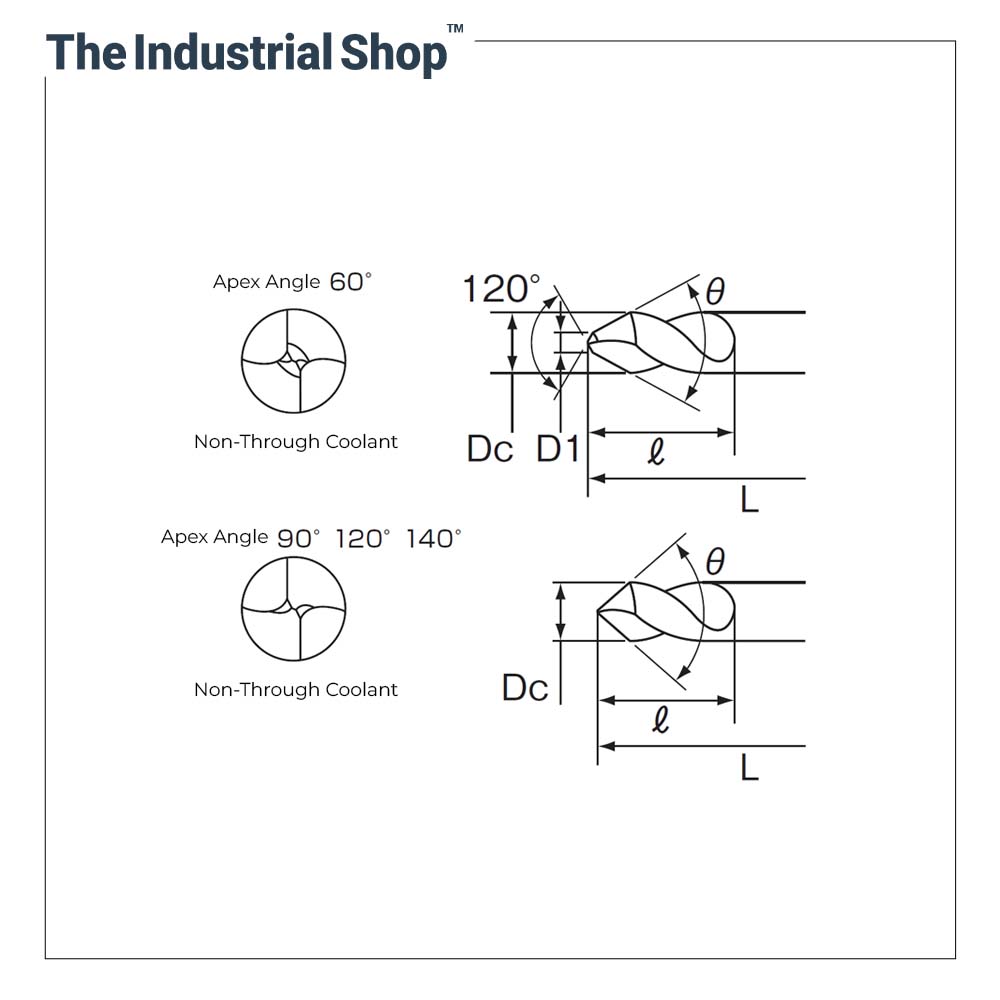

    Flute Length (l)  15 mm
    Apex Angle (θ) 60° / 90° / 120° / 140°
    Total Length (L)  66 mm
    Shank Dia (Ds) 6 mm
    Drill Material Solid Carbide
    Drill Coating Multi-layer AlCrTiN Coating with Lubrication Film
    Coating Color Aqua Blue
    Brand Nachi (Japan)
    Catalogue (PDF) Download Here
    Authorized Distributor Certificate View Here
