Summary
Item Code: AQDEX3FH0330

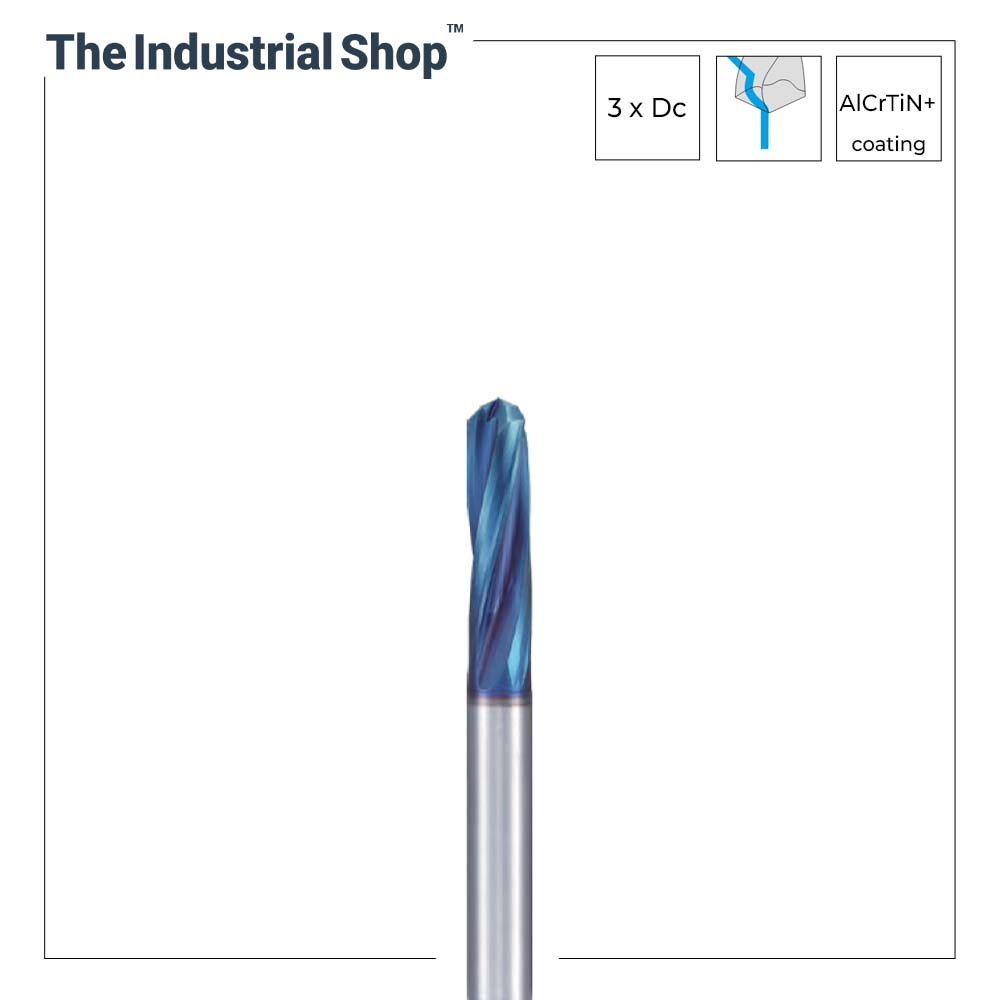

Drill Series: 3 Flute Carbide Drill having Aqua EX (AlCrTiN+) Coating for Hard Steel
Drill Size: 3.3 mm (Non-Through Coolant)
Lc: 19 mm (L x D 3)
Tool Material: Solid Carbide with Multi-layer AlCrTiN Coating and Lubrication Film
Workpiece Material: Hardened Steel (50-68 HRC)
.
Description
Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.
.
Features
High precision and high efficiency 3 Flute Drill is particular about no reaming.
- A 3 flute design capable of high-accuracy drilling without using a reamer
- 2-level point angle for outstanding cutting quality and increased edge strength

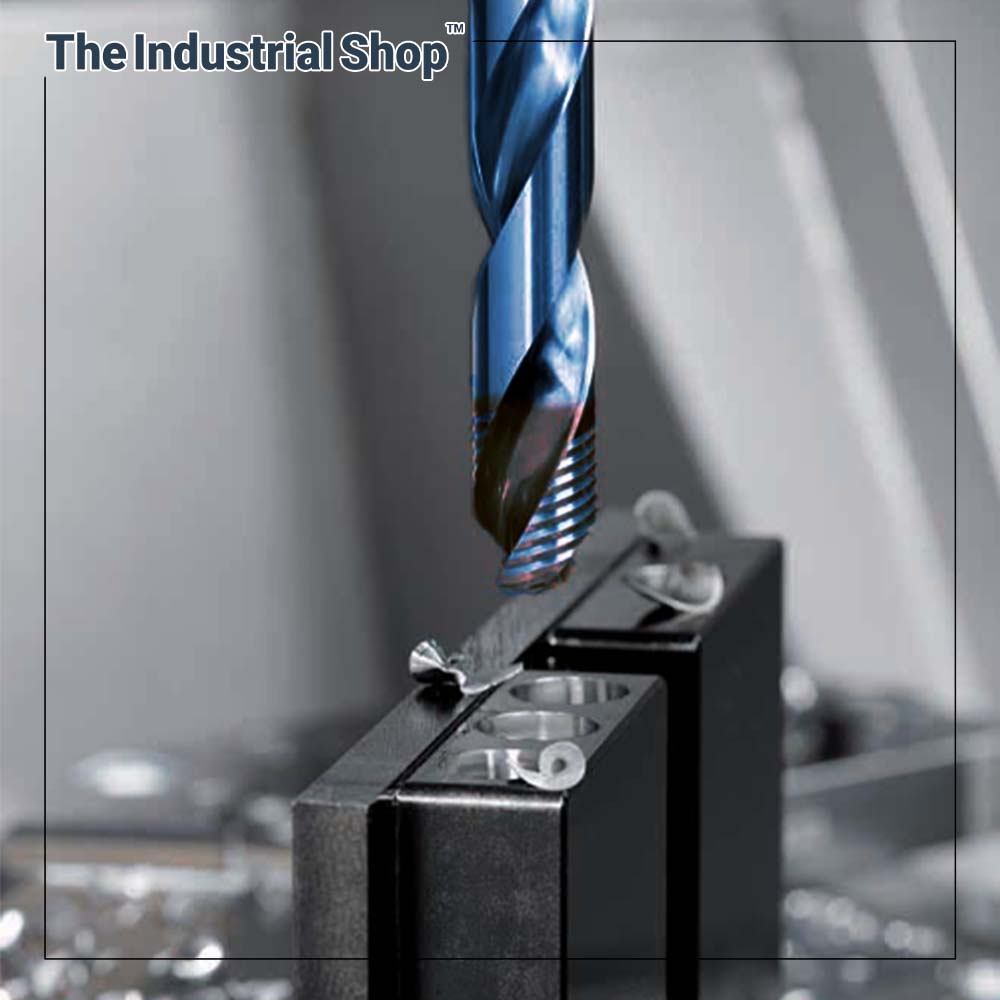

- High-precision drilling even in hardened steel (up to 65 HRC)

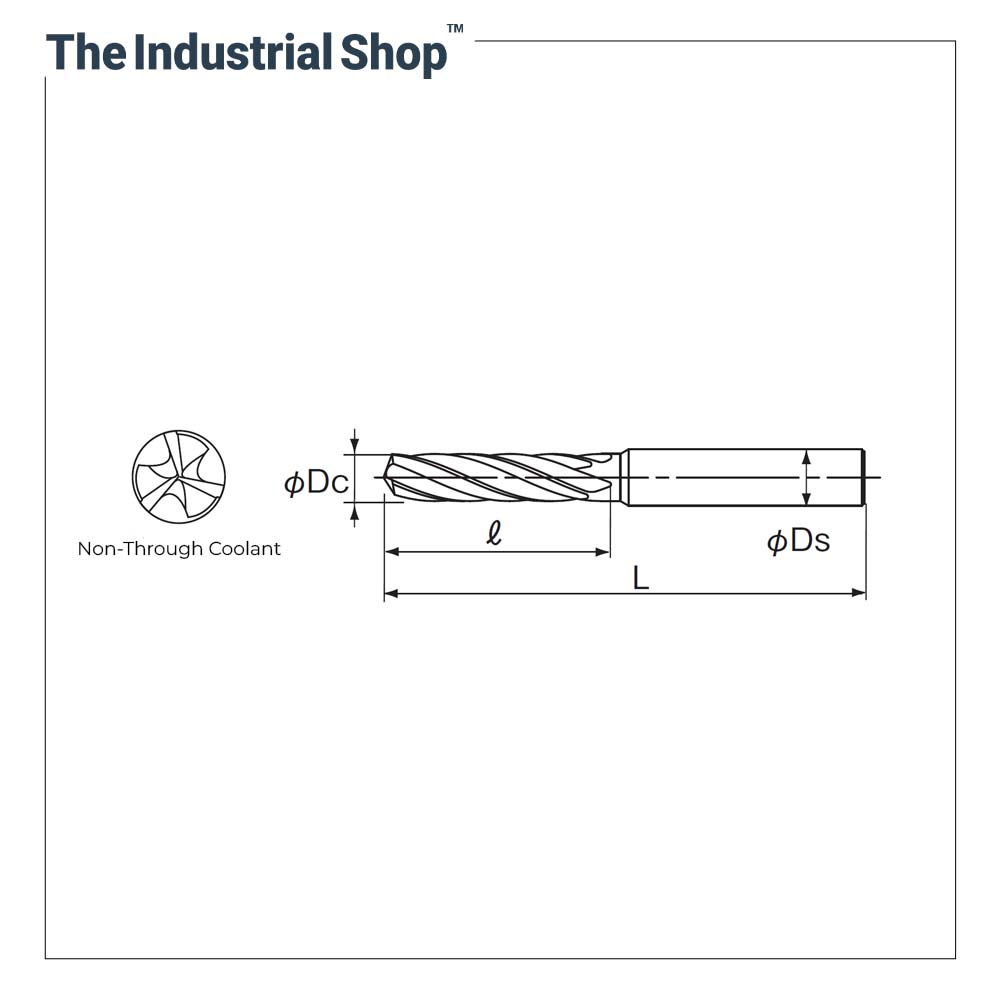

Specifications
| Flute Length (l) | 19 mm |
| Total Length (L) | 54 mm |
| Shank Dia (Ds) | 4 mm |
| Point Angle | 140° / 90° (2-level point angle) |
| Drill Material | Solid Carbide |
| Drill Coating | Multi-layer AlCrTiN Coating with Lubrication Film |
| Coating Color | Aqua Blue |
| Brand | Nachi (Japan) |
| Catalogue (PDF) | Download Here |
| Authorized Distributor Certificate | View Here |
