Nachi (Japan)

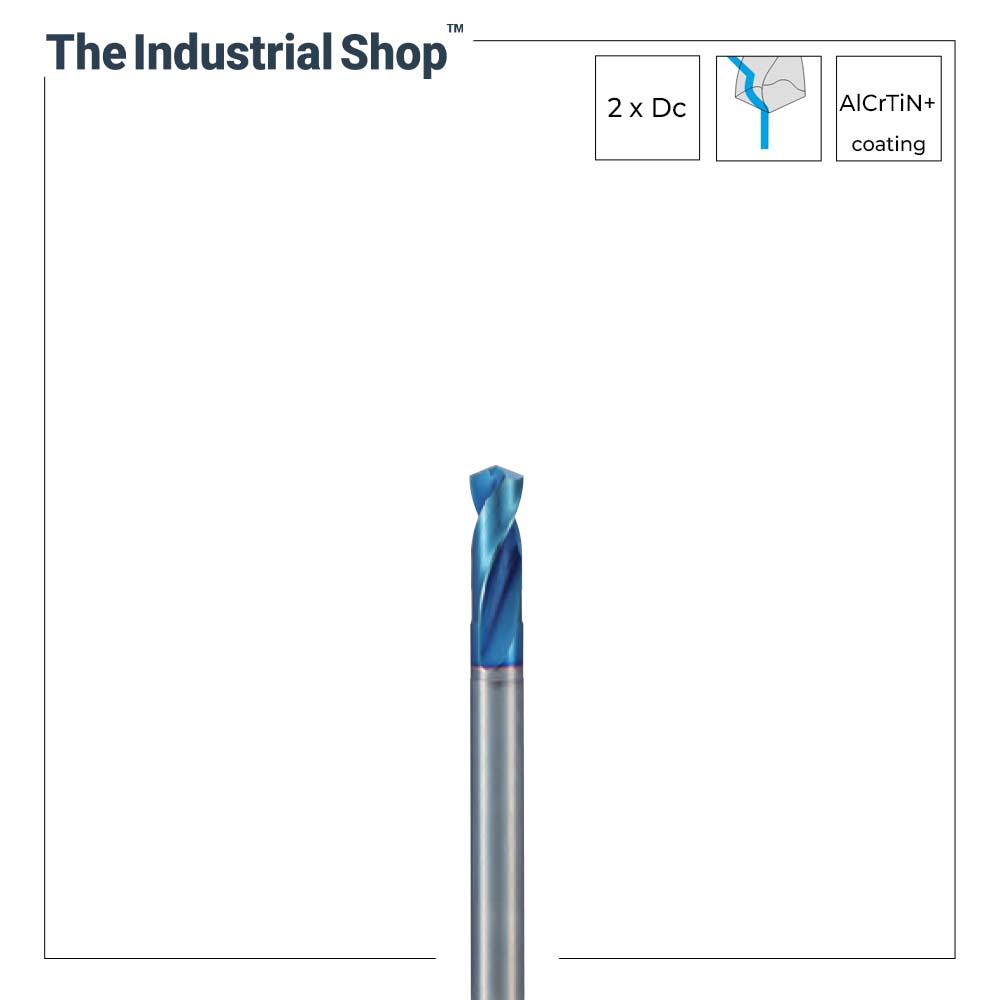

Nachi 2.1 mm to 3.0 mm L x D 2 Power Feed Carbide Drill

Nachi 2.1 mm to 3.0 mm L x D 2 Power Feed Carbide Drill

Regular price Rs. 3,561.00
Regular price Rs. 4,749.00 Sale price Rs. 3,561.00
Sale Sold out
Shipping calculated at checkout.
Drill Size

Summary

Any PF2D Series Drill between size 2.1 mm to 3.0 mm (Non-Through Coolant)
Drill Series: Aqua EX Power Feed Carbide Drill
Tool Material: Solid Carbide with Multi-layer AlCrTiN Coating and Lubrication Film
Workpiece Material: Alloy Steel, Stainless Steel, Cast Iron, Non-ferrous Metals, etc.
.

Description

Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.
.

Features

Achieve high accuracy and longer tool life in ultra-high speed drilling even in conditions where chip jamming is easy to occur.

  • 3 times the traditional feed
  • Reduced thrust cutting force
  • Improved chip breaking performance and outstanding chip evacuation

Specifications

 Flute Length (l)  8 mm (for Drill Size 2.1 mm to 2.5 mm)
10 mm (for Drill Size 2.6 mm to 3.0 mm)
Total Length (L) 45 mm
Shank Dia (Ds) 3 mm
Point Angle 135°
Drill Material Solid Carbide
Drill Coating Multi-layer AlCrTiN Coating with Lubrication Film
Coating Color Aqua Blue
Brand Nachi (Japan)
Catalogue (PDF) Download Here
Authorized Distributor Certificate View Here



GET THE MAXIMUM OUT OF YOUR NACHI CUTTING TOOLS!
Recommended Cutting Parameters | Nachi Tool Solutions App (iOS | Android)
