Nachi (Japan)

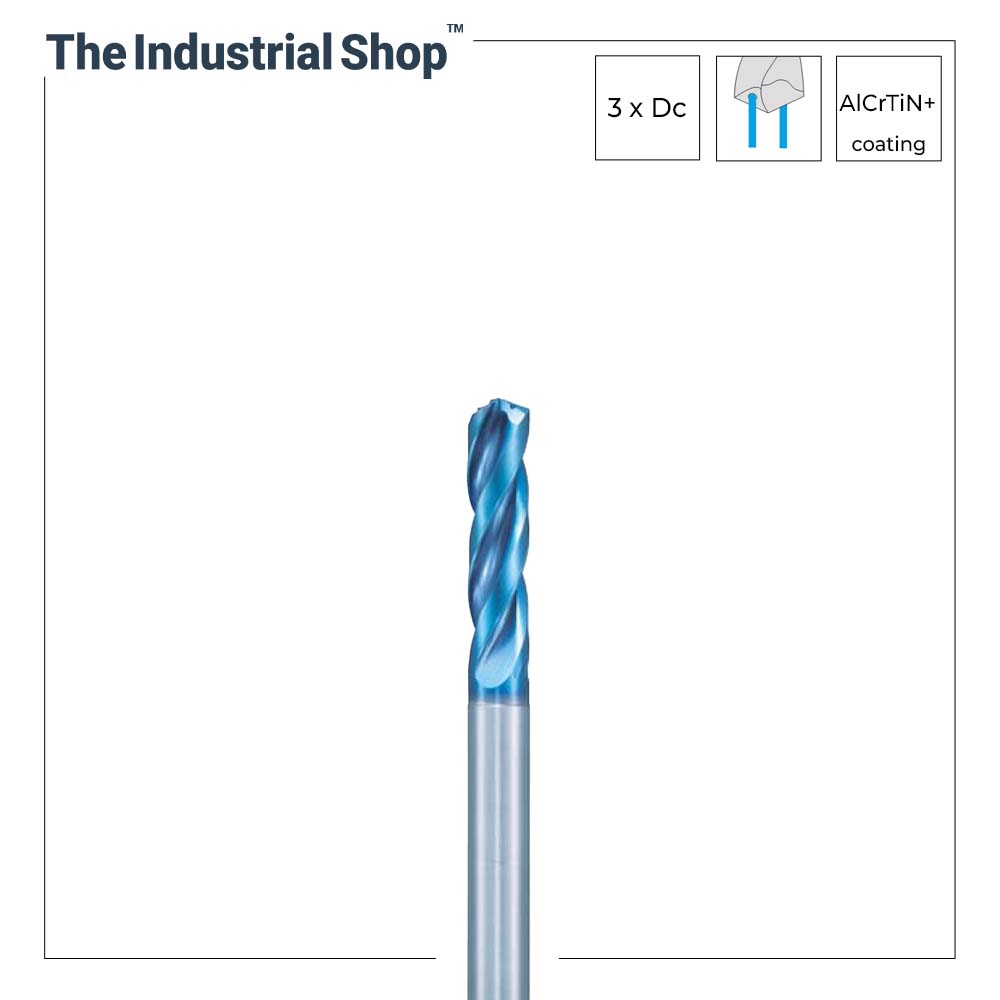

Nachi 16.0 mm L x D 3 Aqua EX 3 Flute Carbide Drill (Through Coolant)

Nachi 16.0 mm L x D 3 Aqua EX 3 Flute Carbide Drill (Through Coolant)

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out
Shipping calculated at checkout.

Summary

Item Code: AQDEXOH3F3D1600
Drill Series: Aqua EX 3 Flute Carbide Drill
Drill Size: 16.0 mm (Through Coolant)
Lc: 80 mm (L x D 3)
Tool Material: Solid Carbide with Multi-layer AlCrTiN Coating and Lubrication Film
Workpiece Material: Alloy Steel, Stainless Steel, Cast Iron, Hardened Steel, etc.
.

Description

Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.
.

Features

High precision and high efficiency 3 Flute Drill is particular about no reaming.

  • A 3 flute design capable of high-accuracy drilling without using a reamer

  • Optimized flute geometry and cutting-edge design improve chip fragmentation and evacuation for stable drilling

  • Features fine cemented carbide for excellent chipping resistance and Aqua EX coating for enhanced resistance to heat and wear


.

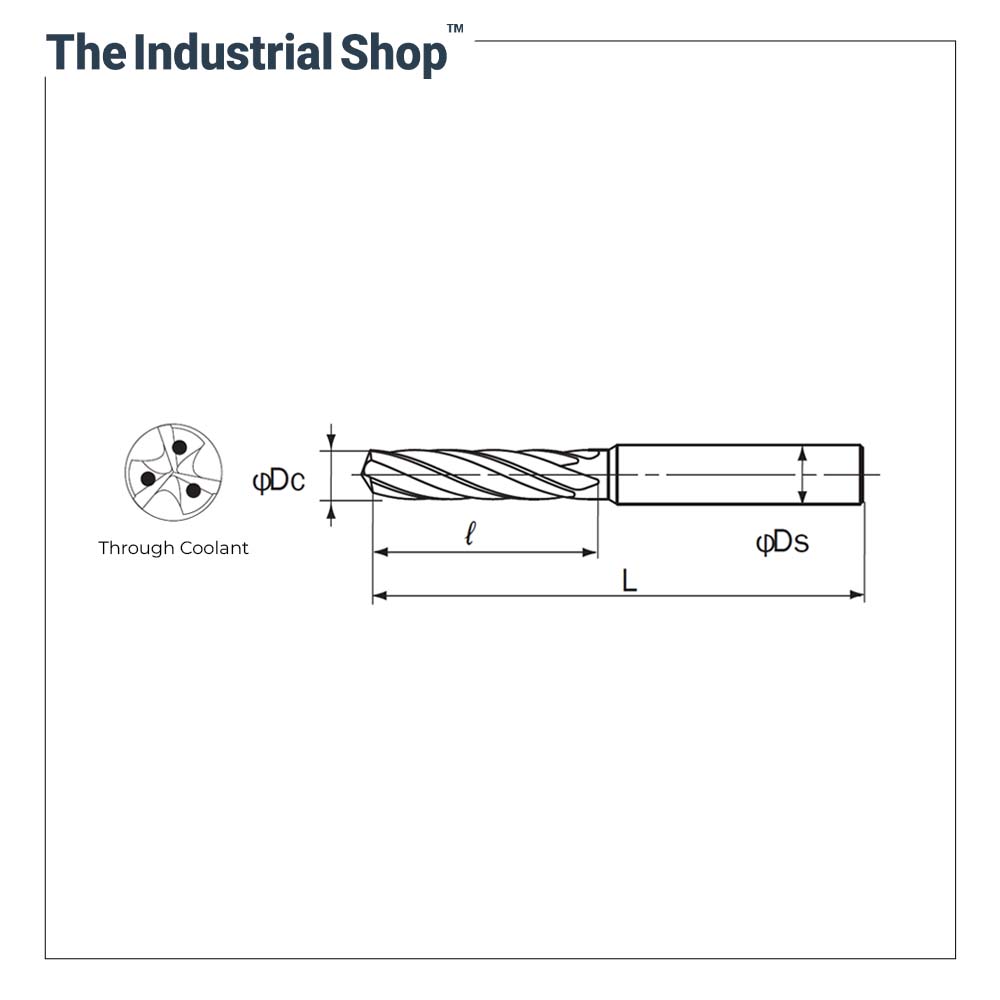

Specifications

 Flute Length (l)  80 mm
Total Length (L) 146 mm
Shank Dia (Ds) 16 mm
Point Angle 140°
Drill Material Solid Carbide
Drill Coating Multi-layer AlCrTiN Coating with Lubrication Film
Coating Color Aqua Blue
Brand Nachi (Japan)
Catalogue (PDF) Download Here
Authorized Distributor Certificate View Here



GET THE MAXIMUM OUT OF YOUR NACHI CUTTING TOOLS!
Recommended Cutting Parameters | Nachi Tool Solutions App (iOS | Android)
View full details
