Nachi (Japan)

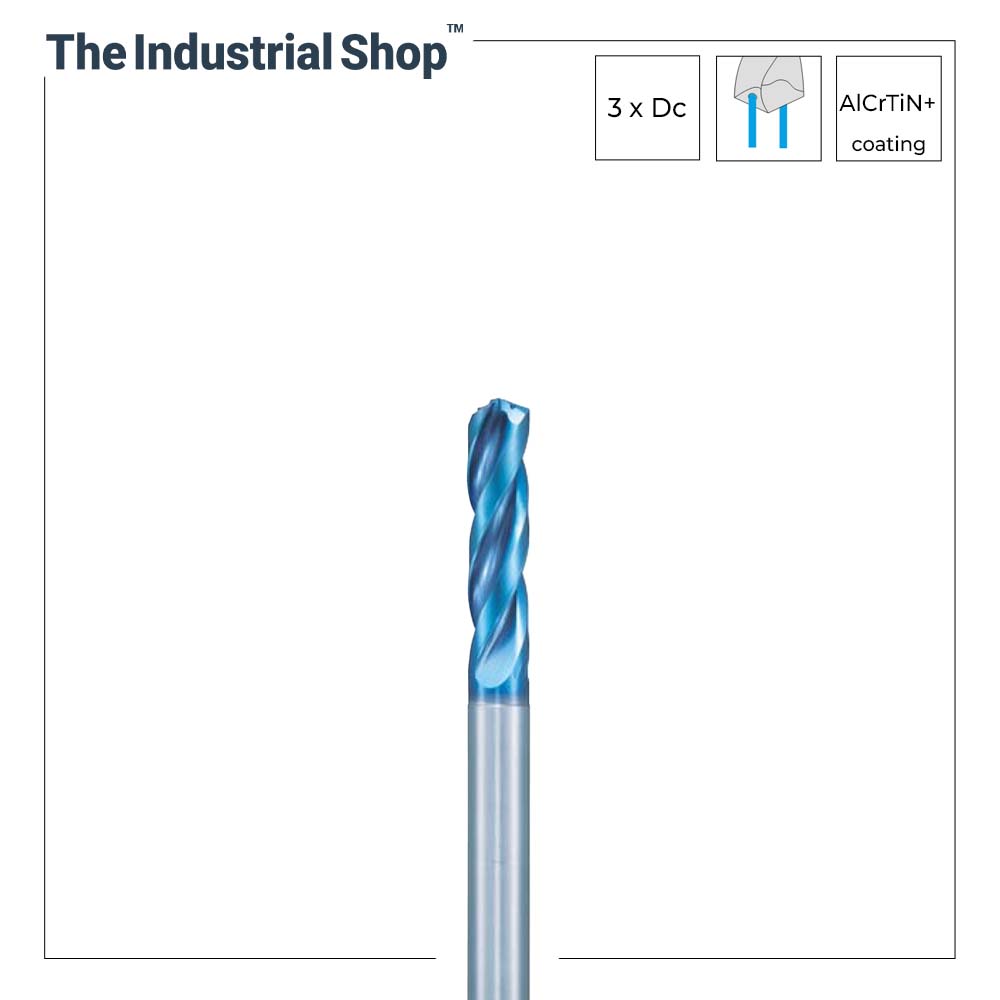

Nachi 15.1 mm to 16.0 mm L x D 3 Aqua EX 3 Flute Carbide Drill (Through Coolant)
Nachi 15.1 mm to 16.0 mm L x D 3 Aqua EX 3 Flute Carbide Drill (Through Coolant)
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Summary
Any AQDEXOH3F3D Series Drill between size 15.1 mm to 16.0 mm (Through Coolant)
Drill Series: Aqua EX 3 Flute Carbide Drill
Tool Material: Solid Carbide with Multi-layer AlCrTiN Coating and Lubrication Film
Workpiece Material: Alloy Steel, Stainless Steel, Cast Iron, Hardened Steel, etc.
.
Description
Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.
.
Features

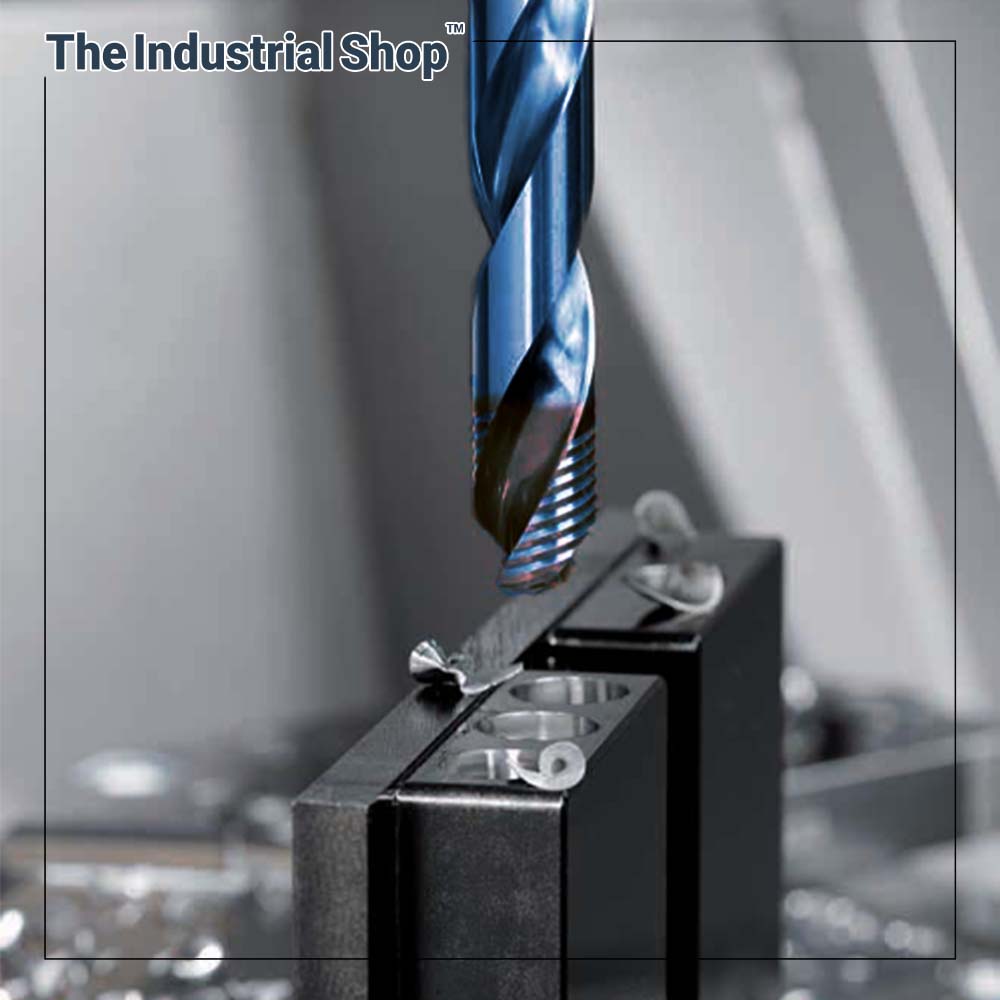

High precision and high efficiency 3 Flute Drill is particular about no reaming.
![](https://cdn.shopify.com/s/files/1/0623/8535/6997/files/Nachi_Aqua_EX_3_Flute_SC_Drill_II_Superior_Hole_Finish_480x480.jpg?v=1670924371)
- A 3 flute design capable of high-accuracy drilling without using a reamer
- Optimized flute geometry and cutting-edge design improve chip fragmentation and evacuation for stable drilling
- Features fine cemented carbide for excellent chipping resistance and Aqua EX coating for enhanced resistance to heat and wear
.
![](https://cdn.shopify.com/s/files/1/0623/8535/6997/files/Nachi_Aqua_EX_3_Flute_SC_Drill_II_Process_Shortening_1024x1024.jpg?v=1670934243)

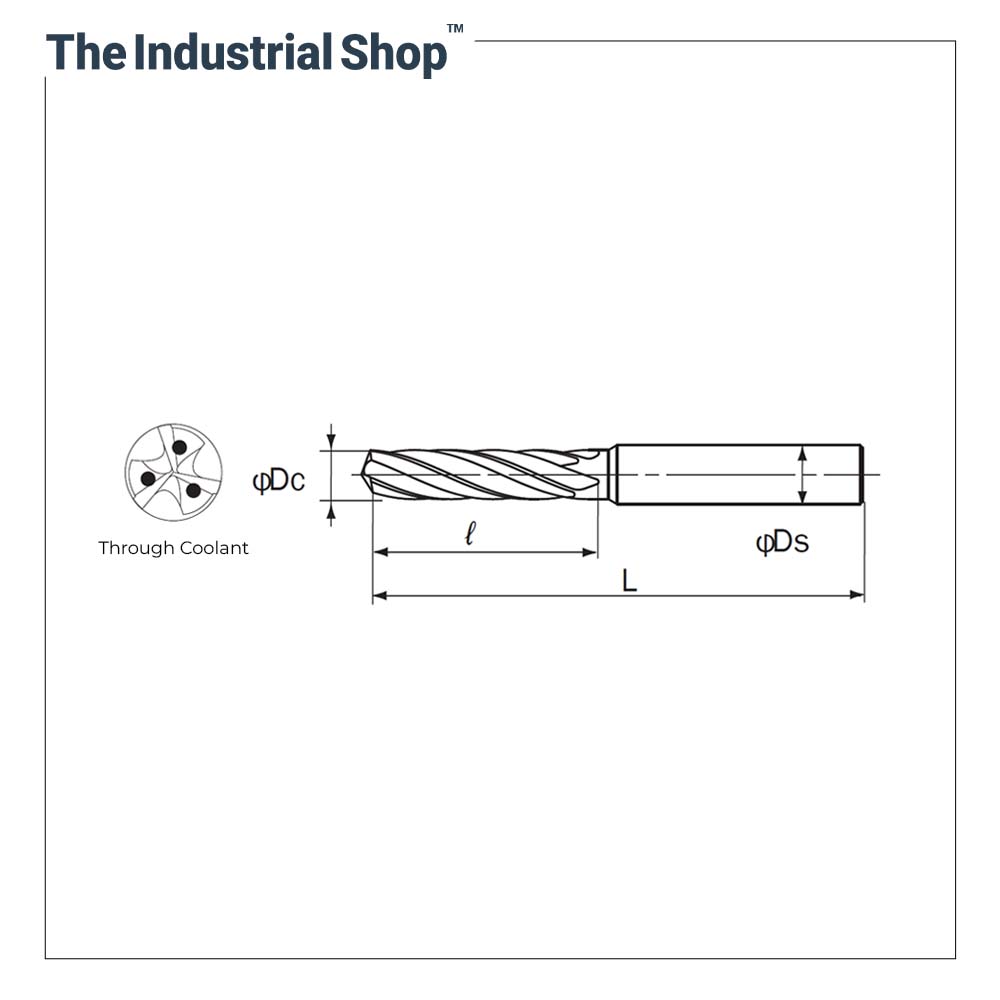

Specifications
Flute Length (l) |
77 mm (for Drill Size 15.1 mm to 15.5 mm) 80 mm (for Drill Size 15.6 mm to 16.0 mm) |
Total Length (L) | 146 mm |
Shank Dia (Ds) | 16 mm |
Point Angle | 140° |
Drill Material | Solid Carbide |
Drill Coating | Multi-layer AlCrTiN Coating with Lubrication Film |
Coating Color | Aqua Blue |
Brand | Nachi (Japan) |
Catalogue (PDF) | Download Here |
Authorized Distributor Certificate | View Here |
