Nachi (Japan)

Nachi 14.1 mm to 15.0 mm 3 Flute Carbide Drill for Hardened Steel

Nachi 14.1 mm to 15.0 mm 3 Flute Carbide Drill for Hardened Steel

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out
Shipping calculated at checkout.
Drill Size

Summary

Any AQDEX3FH Series Drill between size 14.1 mm to 15.0 mm (Non-Through Coolant)

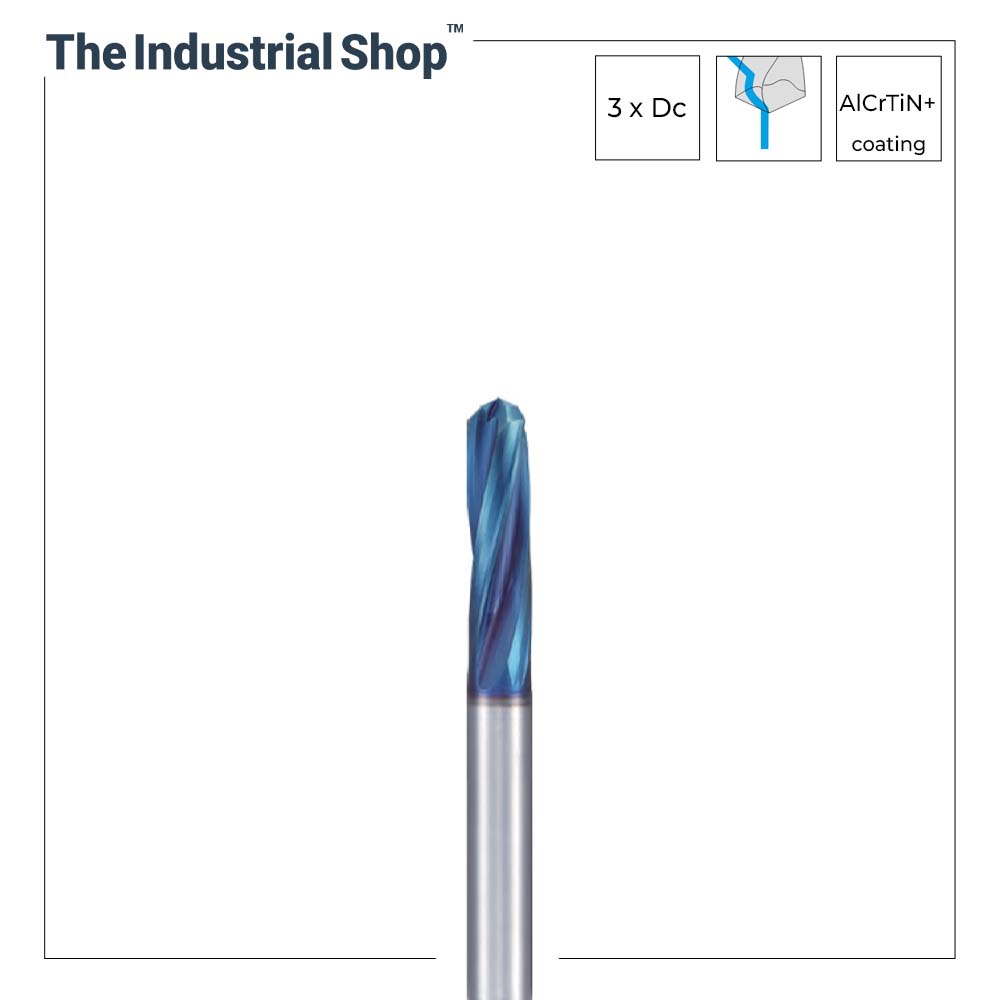

Drill Series: 3 Flute Carbide Drill having Aqua EX (AlCrTiN+) Coating for Hard Steel
Tool Material: Solid Carbide with Multi-layer AlCrTiN Coating and Lubrication Film
Workpiece Material: Hardened Steel (50-68 HRC)
.

Description

Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.
.

Features

High precision and high efficiency 3 Flute Drill is particular about no reaming.

  • A 3 flute design capable of high-accuracy drilling without using a reamer

  • 2-level point angle for outstanding cutting quality and increased edge strength

  • High-precision drilling even in hardened steel (up to 65 HRC)


.

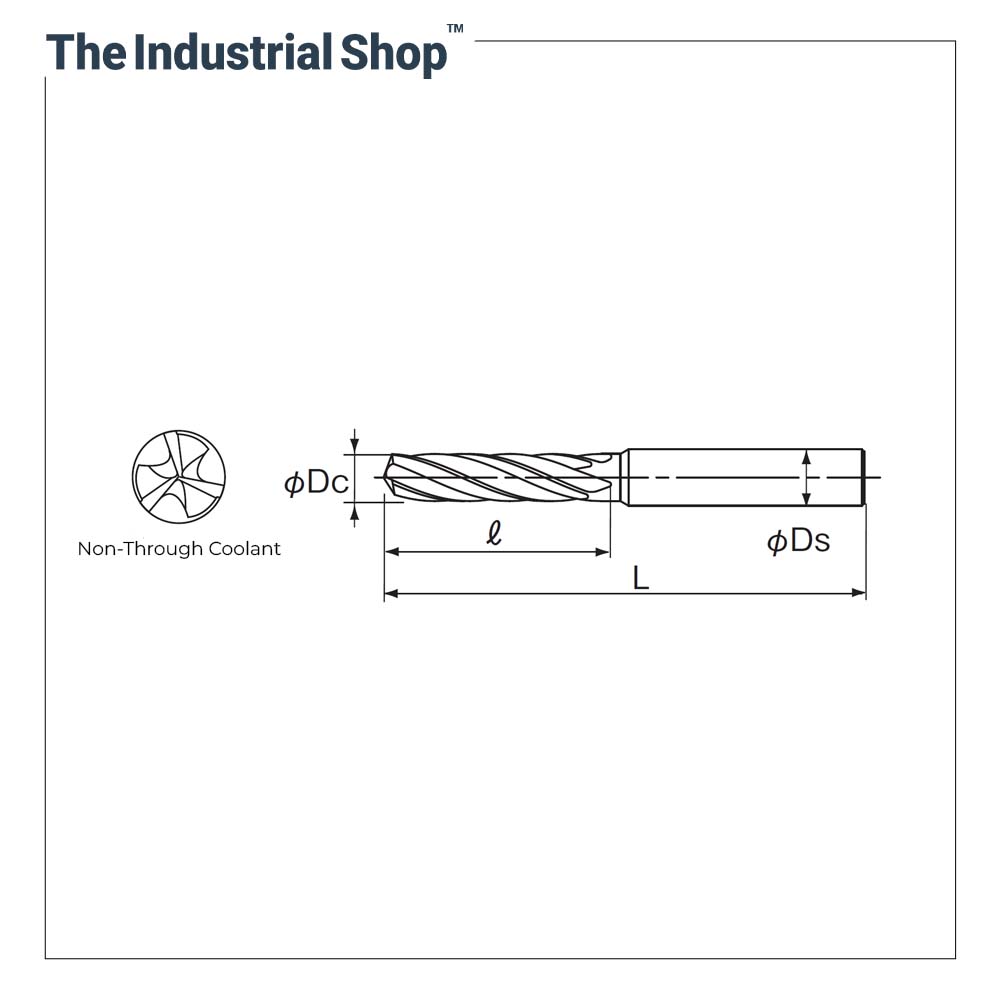

Specifications

Flute Length (l)  53 mm
Total Length (L) 108 mm
Shank Dia (Ds) 15 mm
Point Angle 140° / 90° (2-level point angle)
Drill Material Solid Carbide
Drill Coating Multi-layer AlCrTiN Coating with Lubrication Film
Coating Color Aqua Blue
Brand Nachi (Japan)
Catalogue (PDF) Download Here
Authorized Distributor Certificate View Here



GET THE MAXIMUM OUT OF YOUR NACHI CUTTING TOOLS!
Recommended Cutting Parameters | Nachi Tool Solutions App (iOS | Android)
