Nachi (Japan)

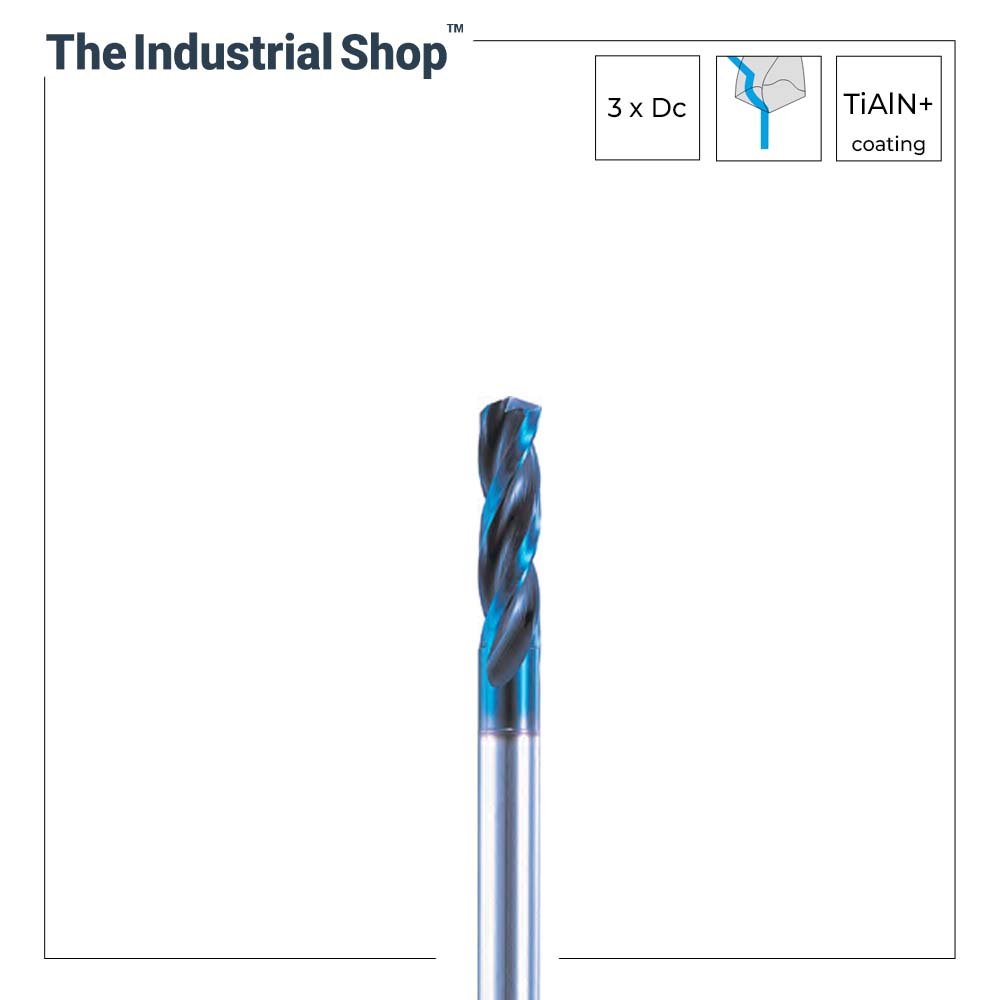

Nachi 14.0 mm L x D 3 Aqua 3 Flute Carbide Drill
Nachi 14.0 mm L x D 3 Aqua 3 Flute Carbide Drill
Regular price
Rs. 10,801.00
Regular price
Rs. 14,402.00
Sale price
Rs. 10,801.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Summary
Item Code: AQD3F14.0
Drill Series: Aqua 3 Flute Carbide Drill
Drill Size: 14.0 mm (Non-Through Coolant)
Lc: 72 mm (L x D 3)
Tool Material: Solid Carbide with Multi-layer TiAlN Coating and Lubrication Film
Workpiece Material: Alloy Steel, Stainless Steel, Cast Iron, Hardened Steel, etc.
.
Description
Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.
.
Features
High precision and high efficiency 3 Flute Drill is particular about no reaming.
![](https://cdn.shopify.com/s/files/1/0623/8535/6997/files/Nachi_Aqua_EX_3_Flute_SC_Drill_II_Superior_Hole_Finish_480x480.jpg?v=1670924371)
- A 3 flute design capable of high-accuracy drilling without using a reamer
- Optimized flute geometry and cutting-edge design improve chip fragmentation and evacuation for stable drilling
- Features fine cemented carbide for excellent chipping resistance and Aqua coating for enhanced resistance to heat and wear
.

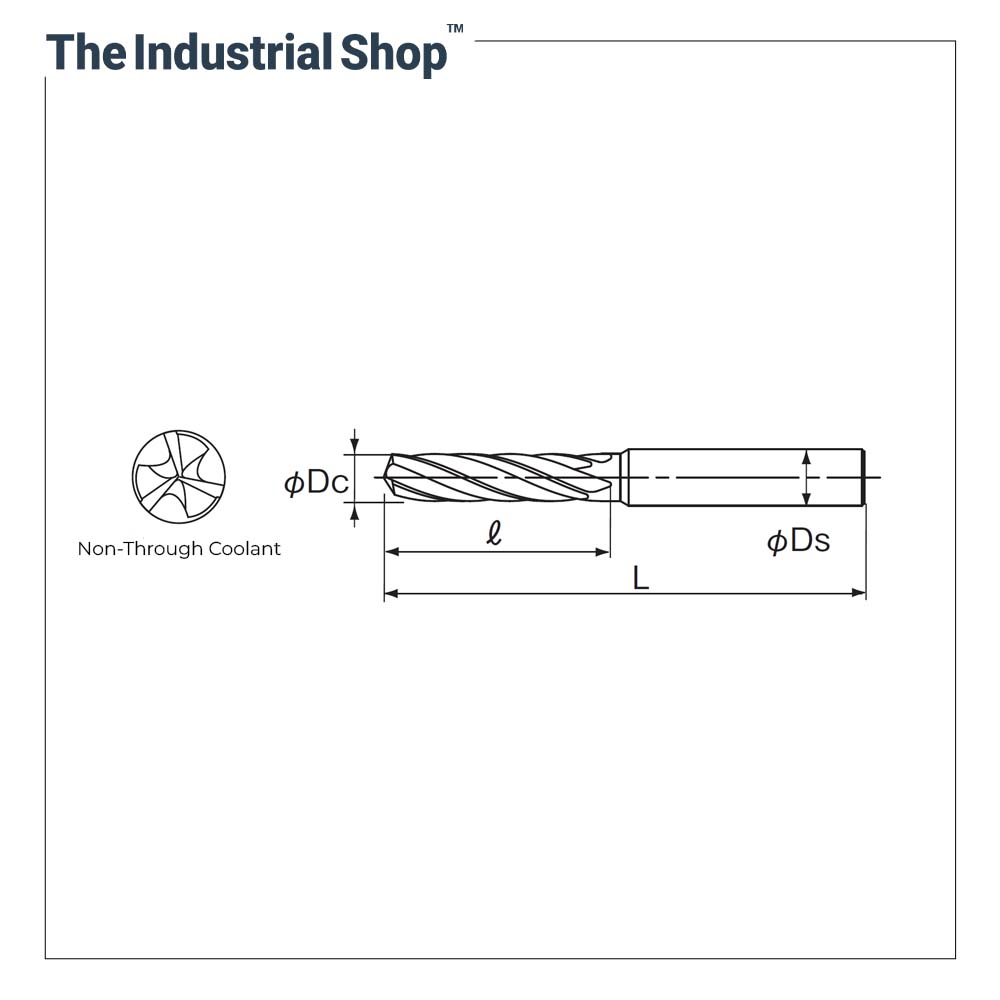

Specifications
Flute Length (l) | 72 mm |
Total Length (L) | 130 mm |
Shank Dia (Ds) | 14 mm |
Point Angle | 150° |
Drill Material | Solid Carbide |
Drill Coating | Multi-layer TiAlN Coating with Lubrication Film |
Coating Color | Aqua Blue |
Brand | Nachi (Japan) |
Catalogue (PDF) | Download Here |
Authorized Distributor Certificate | View Here |
