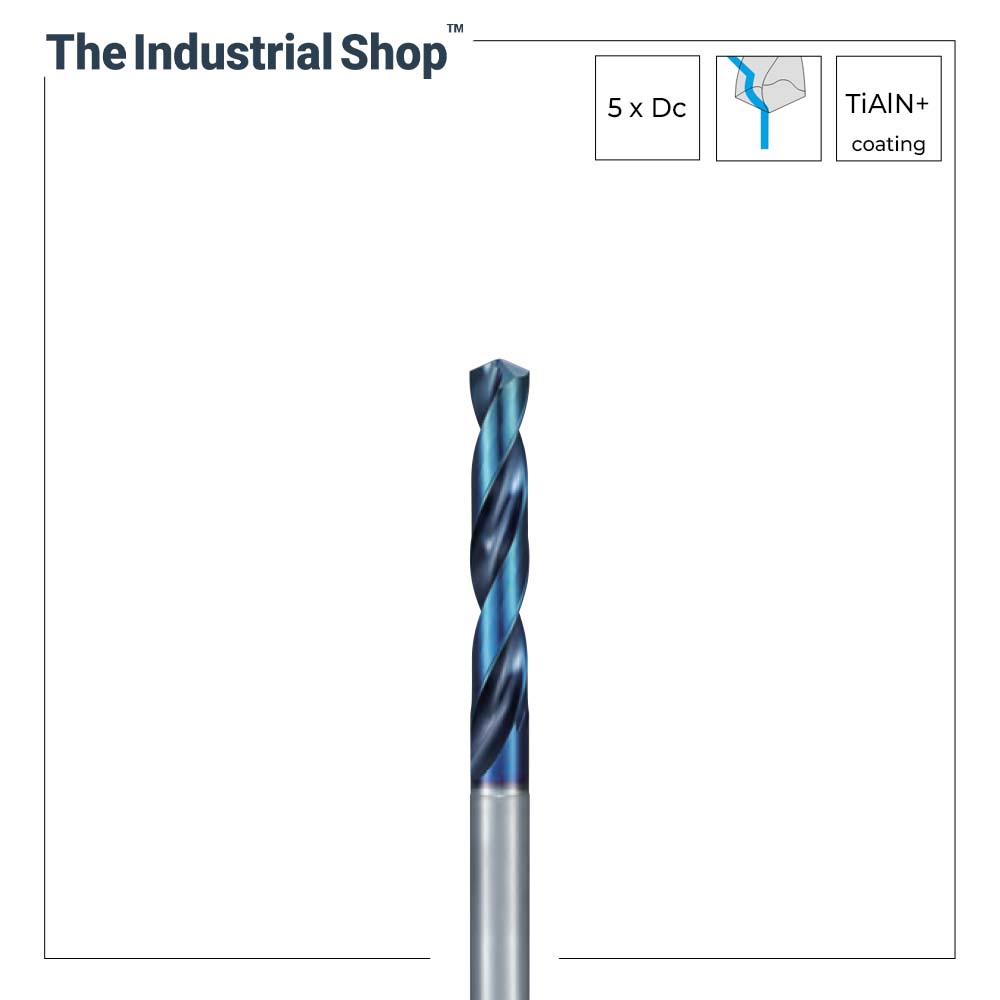

Nachi 12.0 mm L x D 5 AquaREVO Carbide Drill
Nachi 12.0 mm L x D 5 AquaREVO Carbide Drill
Summary
Item Code: AQRVDR1020
Drill Series: General Purpose Carbide Drill (AquaREVO Series)
Drill Size: 12.0 mm (Non-Through Coolant)
Lc: 76 mm (L x D 5)
Tool Material: Solid Carbide with Multi-layer REVO-D Coating and Lubrication Film
Workpiece Material: Alloy Steel, Stainless Steel, Cast Iron, Non-ferrous Metals, etc.
Description
Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.
AquaREVO carbide drills are designed to improve all facets of drilling. Its unique design performs at a high level at various speeds and feeds in a wide range of materials. An all-new substrate, geometry, and coating provide long tool life, even at heavier feed rates. REVO is offered in solid carbide, coolant-through carbide, and micro carbide options.
.
Features
All New Material, Design, and Coating dramatically improves all functions of drilling!
- Newly developed carbide material adds both hardness and toughness
- New straight cutting edge breaks up cutting stress and improves chipping resistance
- Newly developed REVO-D coating provides high oxidation resistance and wear resistance. Super smooth surface treatment generates low friction and enables smooth chip evacuation.
.

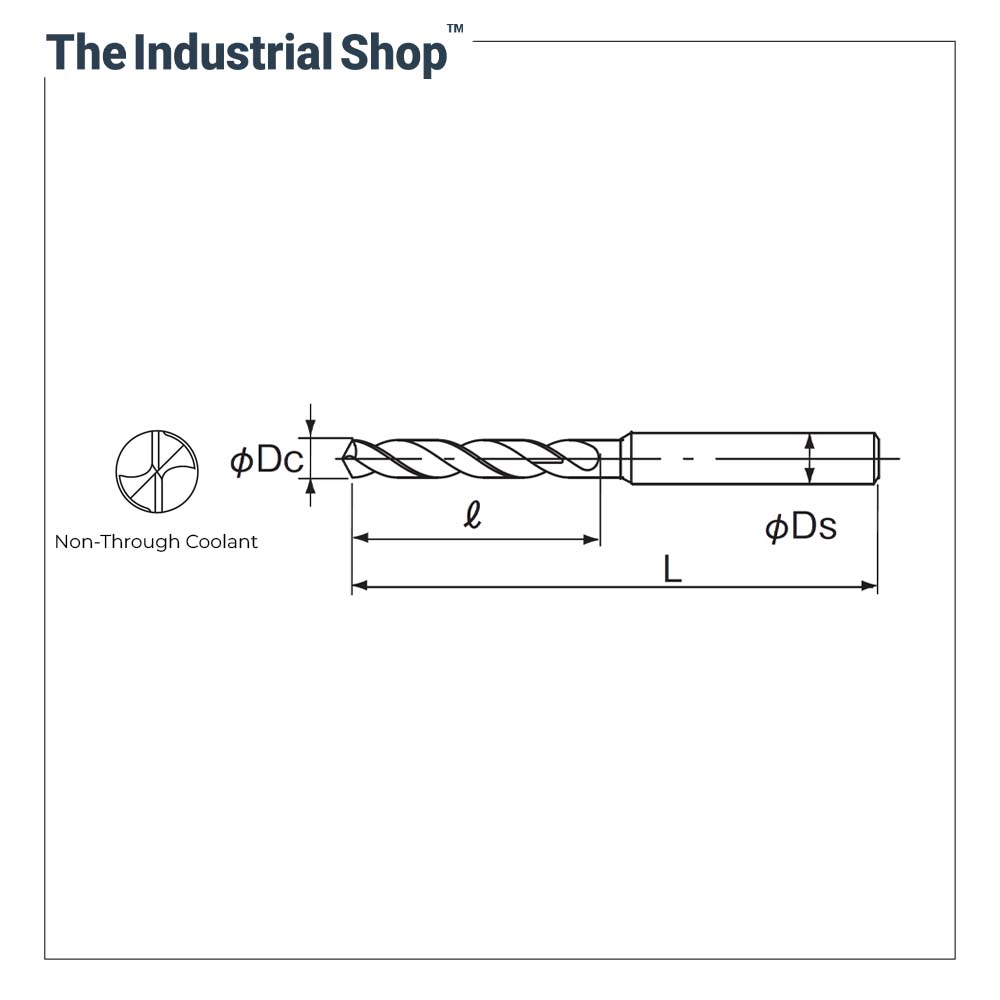

Specifications
Flute Length (l) | 76 mm |
Total Length (L) | 123 mm |
Shank Dia (Ds) | 12 mm |
Point Angle | 135° |
Drill Material | Solid Carbide |
Drill Coating | Multi-layer TiAlN Coating with Lubrication Film |
Coating Color | Aqua Blue |
Brand | Nachi (Japan) Sandvik, Kennametal, Mitsubishi |
Catalogue (PDF) | Download Here |
Authorized Distributor Certificate | View Here |
GET THE MAXIMUM OUT OF YOUR NACHI CUTTING TOOLS!
Recommended Cutting Parameters | Nachi Tool Solutions App (iOS | Android)
