Nachi 11.1 mm to 12.0 mm 3 Flute Carbide Drill for Hardened Steel
Nachi 11.1 mm to 12.0 mm 3 Flute Carbide Drill for Hardened Steel
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Summary
Any AQDEX3FH Series Drill between size 11.1 mm to 12.0 mm (Non-Through Coolant)

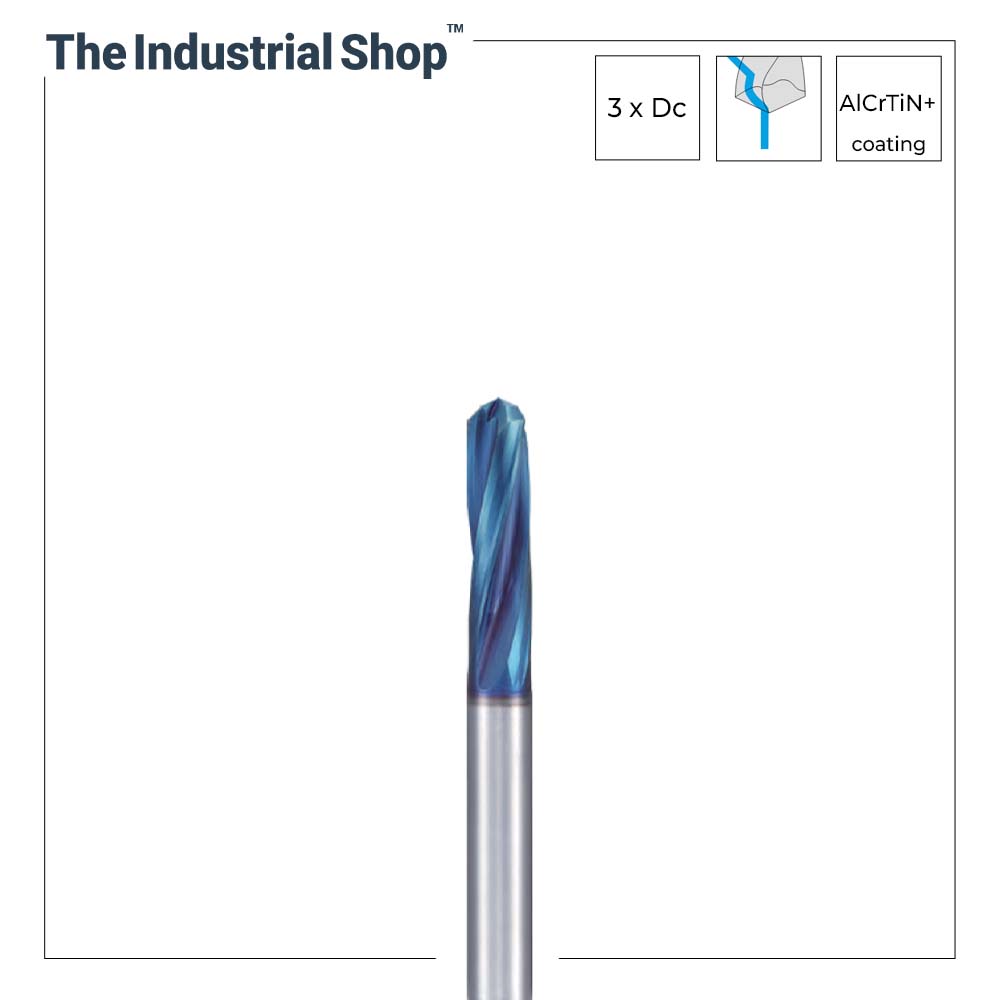

Drill Series: 3 Flute Carbide Drill having Aqua EX (AlCrTiN+) Coating for Hard Steel
Tool Material: Solid Carbide with Multi-layer AlCrTiN Coating and Lubrication Film
Workpiece Material: Hardened Steel (50-68 HRC)
.
Description
Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.
.
Features
High precision and high efficiency 3 Flute Drill is particular about no reaming.
- A 3 flute design capable of high-accuracy drilling without using a reamer
- 2-level point angle for outstanding cutting quality and increased edge strength
- High-precision drilling even in hardened steel (up to 65 HRC)

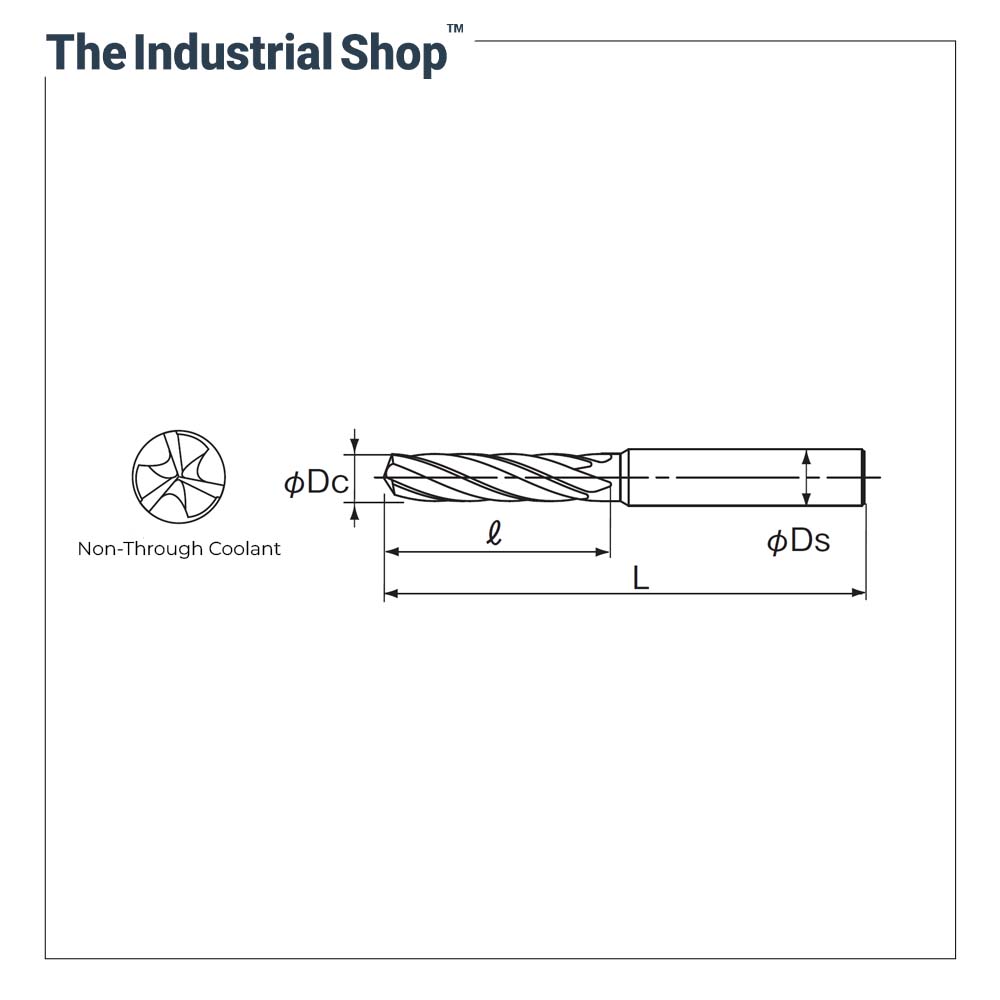

Specifications
| Flute Length (l) |
45 mm (for Drill Size 11.1 mm to 11.5 mm) 47 mm (for Drill Size 11.6 mm to 12.0 mm) |
| Total Length (L) | 100 mm |
| Shank Dia (Ds) | 12 mm |
| Point Angle | 140° / 90° (2-level point angle) |
| Drill Material | Solid Carbide |
| Drill Coating | Multi-layer AlCrTiN Coating with Lubrication Film |
| Coating Color | Aqua Blue |
| Brand | Nachi (Japan) |
| Catalogue (PDF) | Download Here |
| Authorized Distributor Certificate | View Here |
