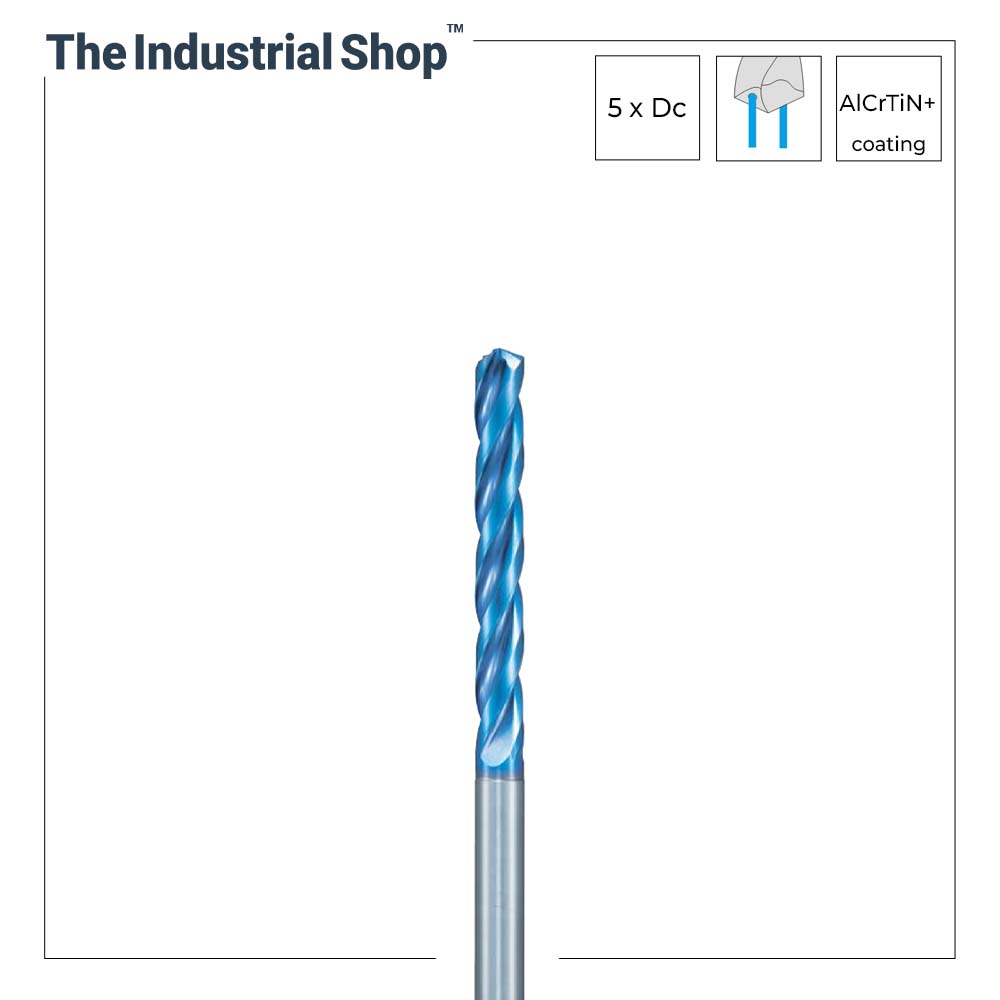

Nachi 10.2 mm L x D 5 Aqua EX 3 Flute Carbide Drill (Through Coolant)

Summary

Item Code: AQDEXOH3F5D1020
Drill Series: Aqua EX 3 Flute Carbide Drill

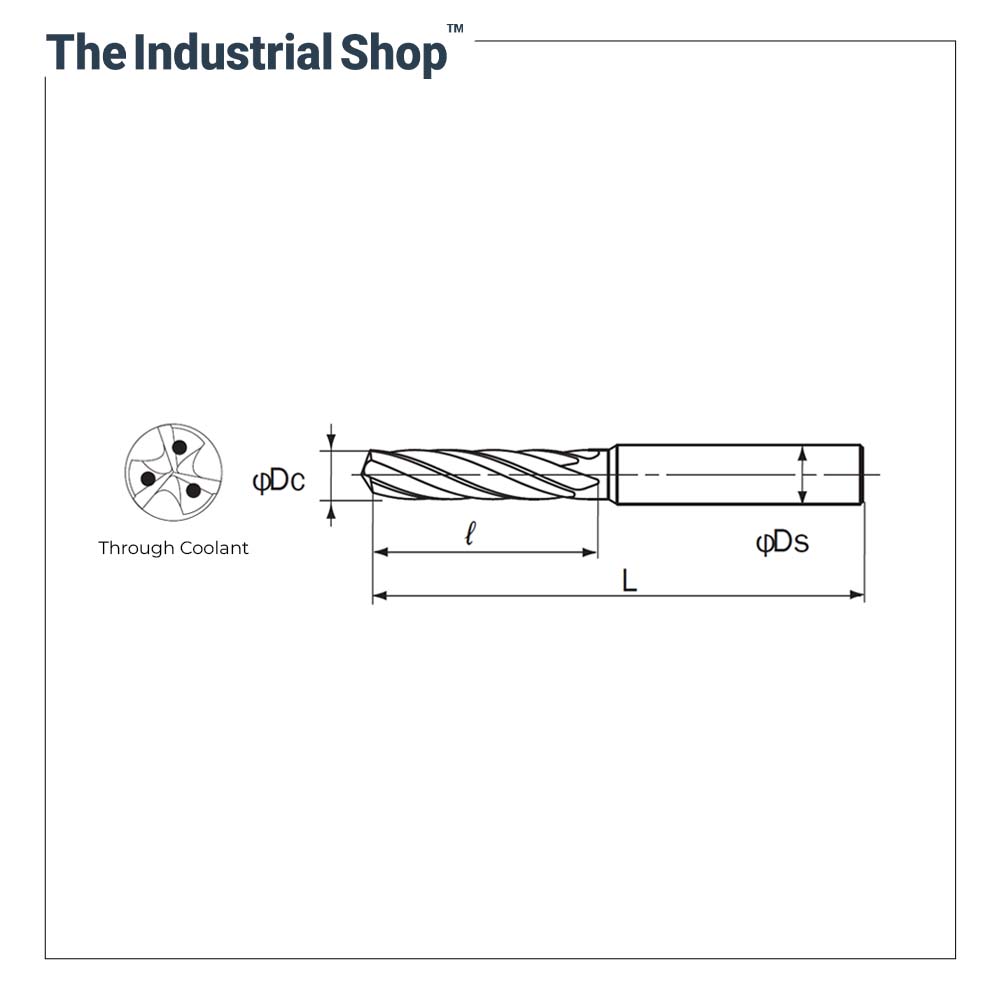

Drill Size: 10.2 mm (Through Coolant)
Lc: 84 mm (L x D 5)
Tool Material: Solid Carbide with Multi-layer AlCrTiN Coating and Lubrication Film
Workpiece Material: Alloy Steel, Stainless Steel, Cast Iron, Hardened Steel, etc.
.

Description

Nachi is a global manufacturer of innovative products, including bearings, cutting tools, hydraulic equipments, robots, and high-speed steel. In the cutting tool division, Nachi manufactures drills, endmills, and taps engineered to meet and exceed the demands of the industry’s most precise machine tools.
.

Features

High precision and high efficiency 3 Flute Drill is particular about no reaming.

• A 3 flute design capable of high-accuracy drilling without using a reamer


• Optimized flute geometry and cutting-edge design improve chip fragmentation and evacuation for stable drilling


• Features fine cemented carbide for excellent chipping resistance and Aqua EX coating for enhanced resistance to heat and wear



.

Specifications
