KTA (India)

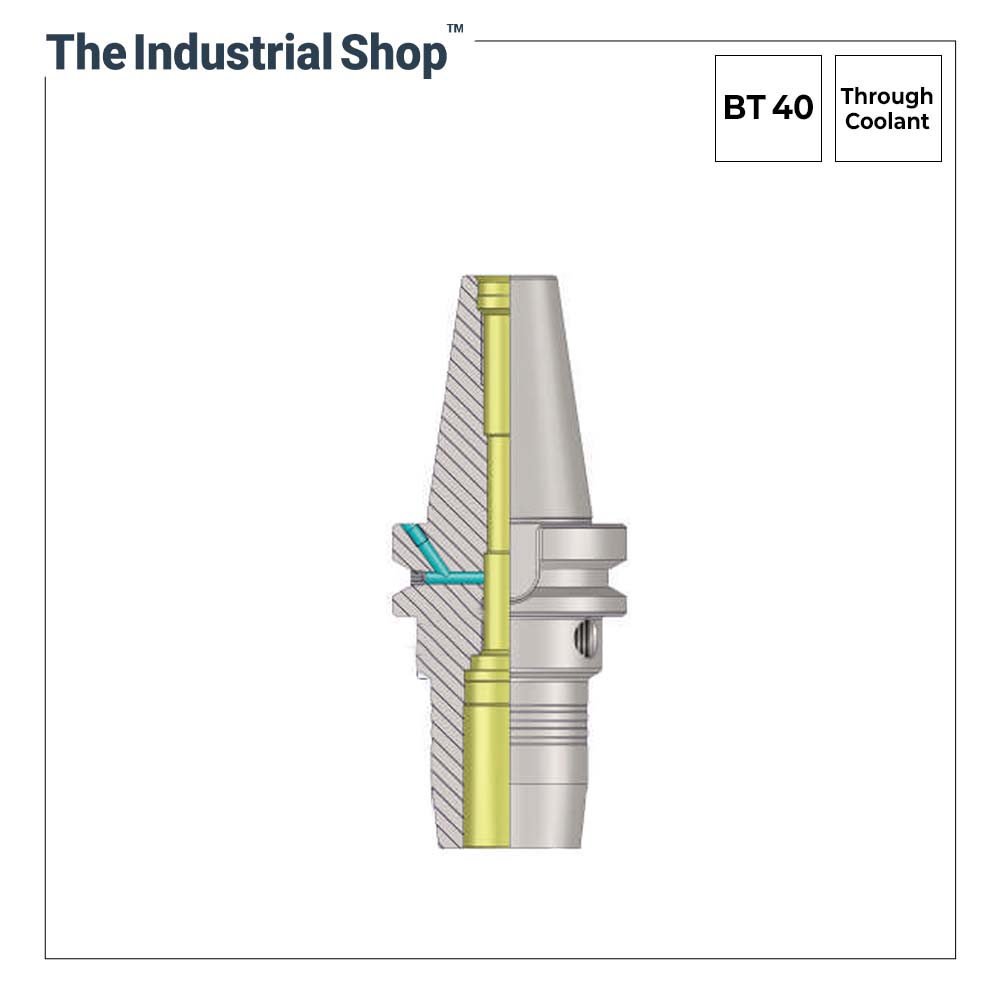

KTA Side Lock (End Mill) Holder BT40 WE16 (Through Coolant)

KTA Side Lock (End Mill) Holder BT40 WE16 (Through Coolant)

Regular price Rs. 2,598.00
Regular price Rs. 4,404.00 Sale price Rs. 2,598.00
Sale Sold out
Shipping calculated at checkout.


Item Type: Side Lock (Weldon Type End Mill) Holder

Machine Spindle Taper: BT40
Shank Diameter (d): 16 mm
GPL (L): 63 mm, 100 mm, and 160 mm
Through-Coolant: Yes (Face Coolant Channel)


KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month.

KTA manufactures ER Collet Chucks, Side Lock (End Mill) Holders, Hydro Grip Holders, Milling Holders, Drilling Chucks, Tapping Chucks, Collets, Hydro Grip Sleeves, and more in BT30, BT40, BT50, KBT, SK, HSK-A, HSK-F, and CAT standards.

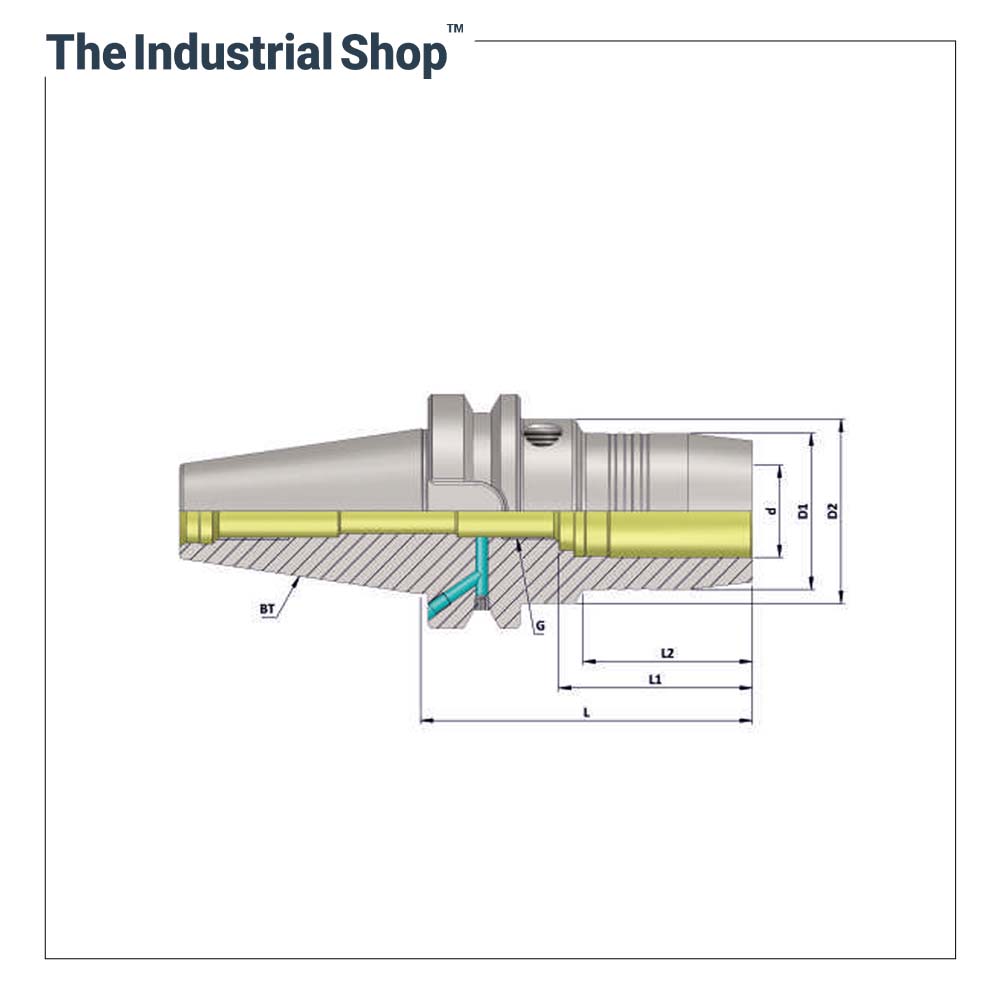

Machine Spindle Taper BT40
Shank Diameter (d) 16 mm
GPL (L) 63 mm, 100 mm, 160 mm
Body Diameter (D1) 48 mm
G M14
Screw Quantity 1
Through-Coolant Yes (Face Coolant Channel)
Maximum Run-out 0.005 mm (5 microns)
Balanced to 2.5 G @ 25,000 RPM
Material Case-Hardened Steel (58 ± 2 HRC)
Brand KTA (India)
Catalogue (PDF) Download Here
