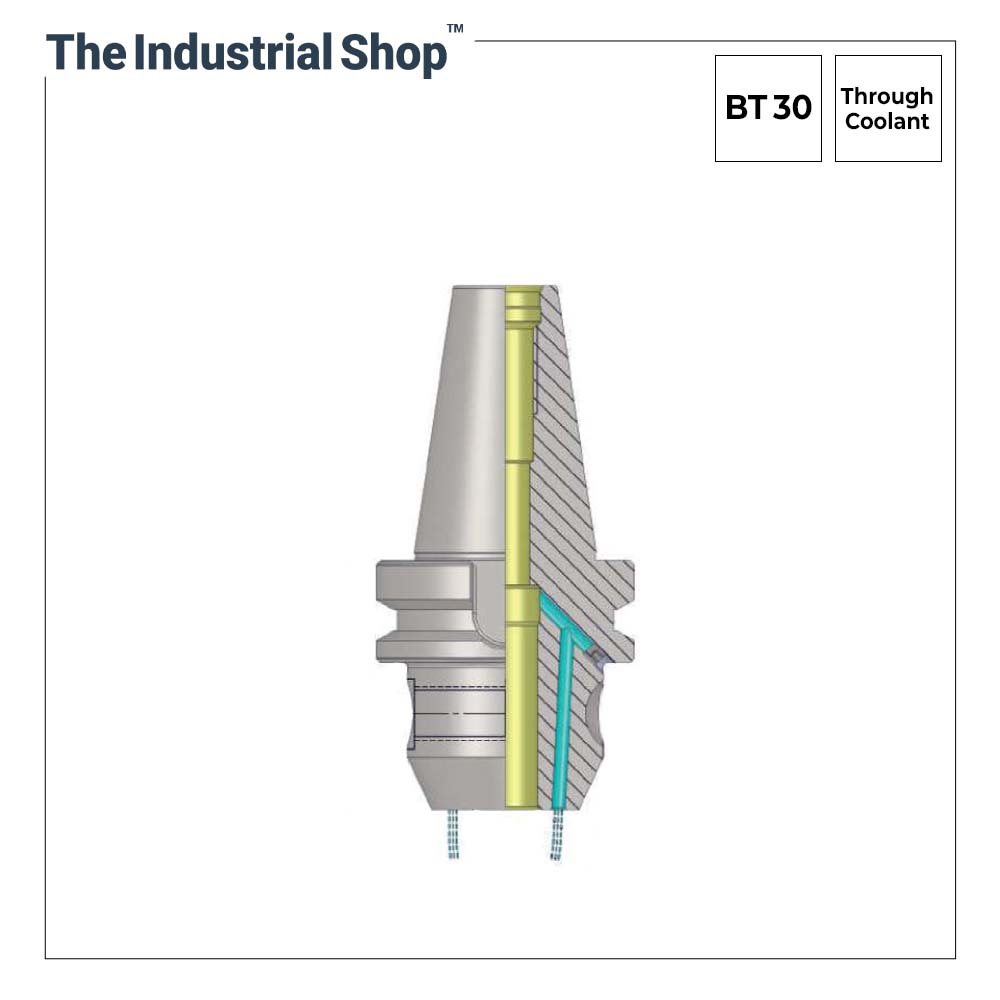

KTA Side Lock (End Mill) Holder BT30 WE12 (Through Coolant)

KTA Side Lock (End Mill) Holder BT30 WE12 (Through Coolant)

Regular price Rs. 2,145.00
Regular price Rs. 3,636.00 Sale price Rs. 2,145.00
Sale Sold out
Length

Summary

Item Type: Side Lock (Weldon Type End Mill) Holder

Machine Spindle Taper: BT30
Shank Diameter (d): 12 mm
GPL (L): 55 mm
Through-Coolant: Yes (Face Coolant Channel)
.

Description

KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month.

KTA manufactures ER Collet Chucks, Side Lock (End Mill) Holders, Hydro Grip Holders, Milling Holders, Drilling Chucks, Tapping Chucks, Collets, Hydro Grip Sleeves, and more in BT30, BT40, BT50, KBT, SK, HSK-A, HSK-F, and CAT standards.
.

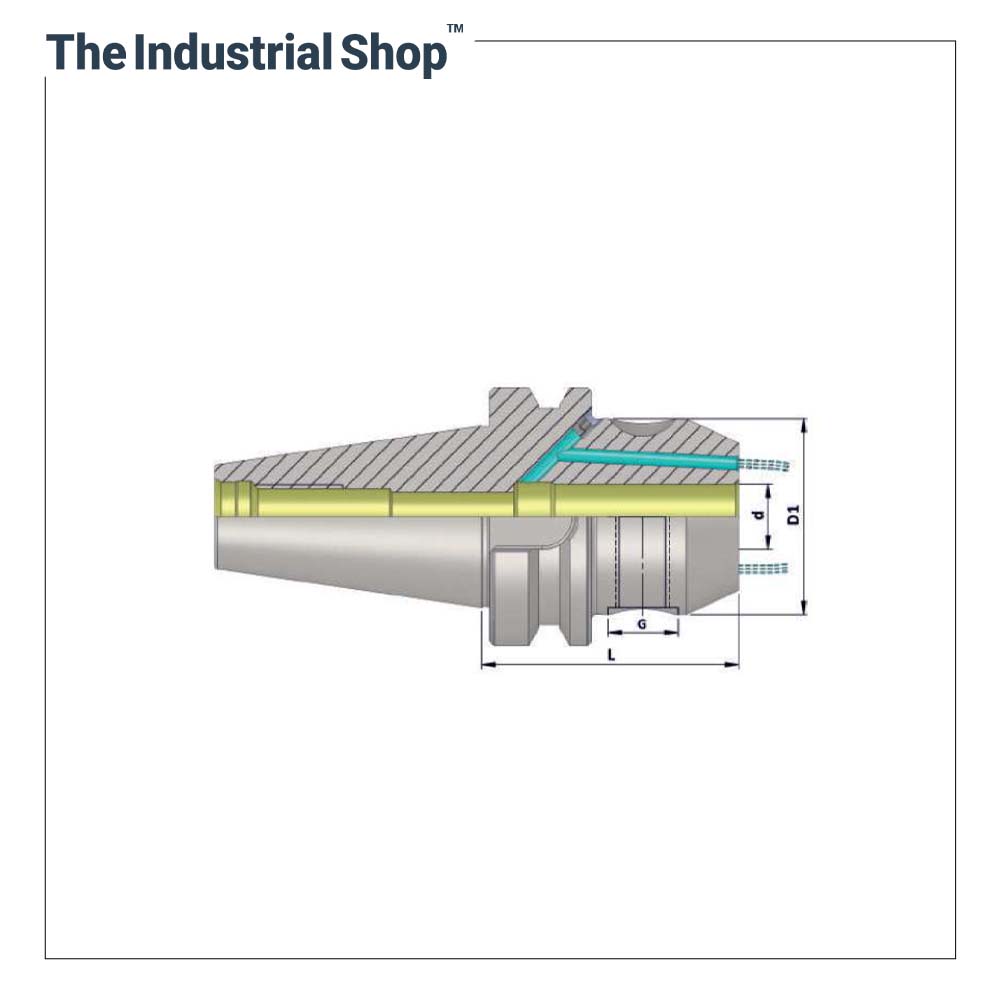

Specification

Machine Spindle Taper BT30
Shank Diameter (d) 12 mm
GPL (L) 55 mm
Body Diameter (D1) 42 mm
G M12
Screw Quantity 1
Through-Coolant Yes (Face Coolant Channel)
Maximum Run-out 0.005 mm (5 microns)
Balanced to 2.5 G @ 25,000 RPM
Material Case-Hardened Steel (58 ± 2 HRC)
Brand KTA (India)
Catalogue (PDF) Download Here
