KTA (India)

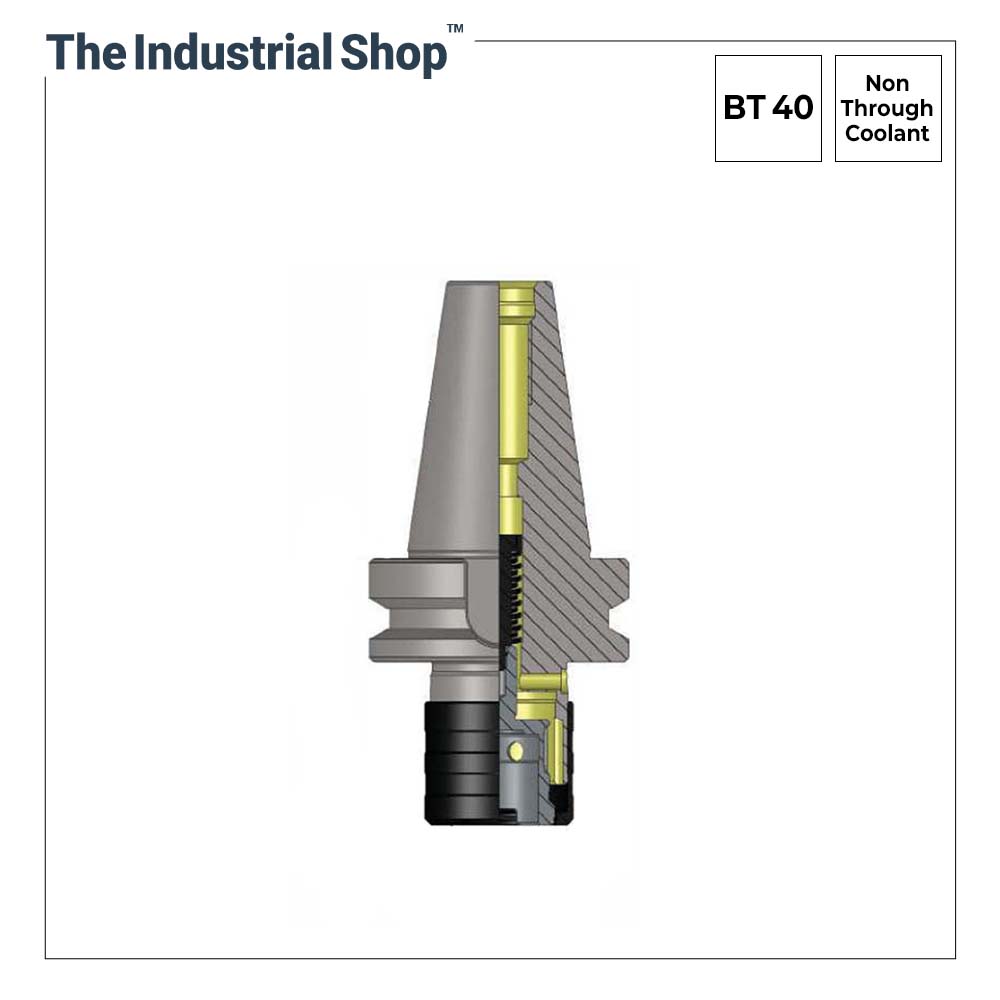

KTA Quick Change Tapping Chuck BT40 KWFLK4
KTA Quick Change Tapping Chuck BT40 KWFLK4
Regular price
Rs. 21,682.00
Regular price
Rs. 36,750.00
Sale price
Rs. 21,682.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Summary
Item Type: Quick Change Tapping Chuck
Machine Spindle Taper: BT40
Suitable Adaptor: KWES4B
Adaptor Capacity: M22 - M48
GPL (L): 180 mm
Through-Coolant: No
.
Description
KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month. Collet Chucks
KTA manufactures ER Collet Chucks, Side Lock (End Mill) Holders, Hydro Grip Holders, Milling Holders, Drilling Chucks, Tapping Chucks, Collets, Hydro Grip Sleeves, and more in BT30, BT40, BT50, KBT, SK, HSK-A, HSK-F, and CAT standards.
.

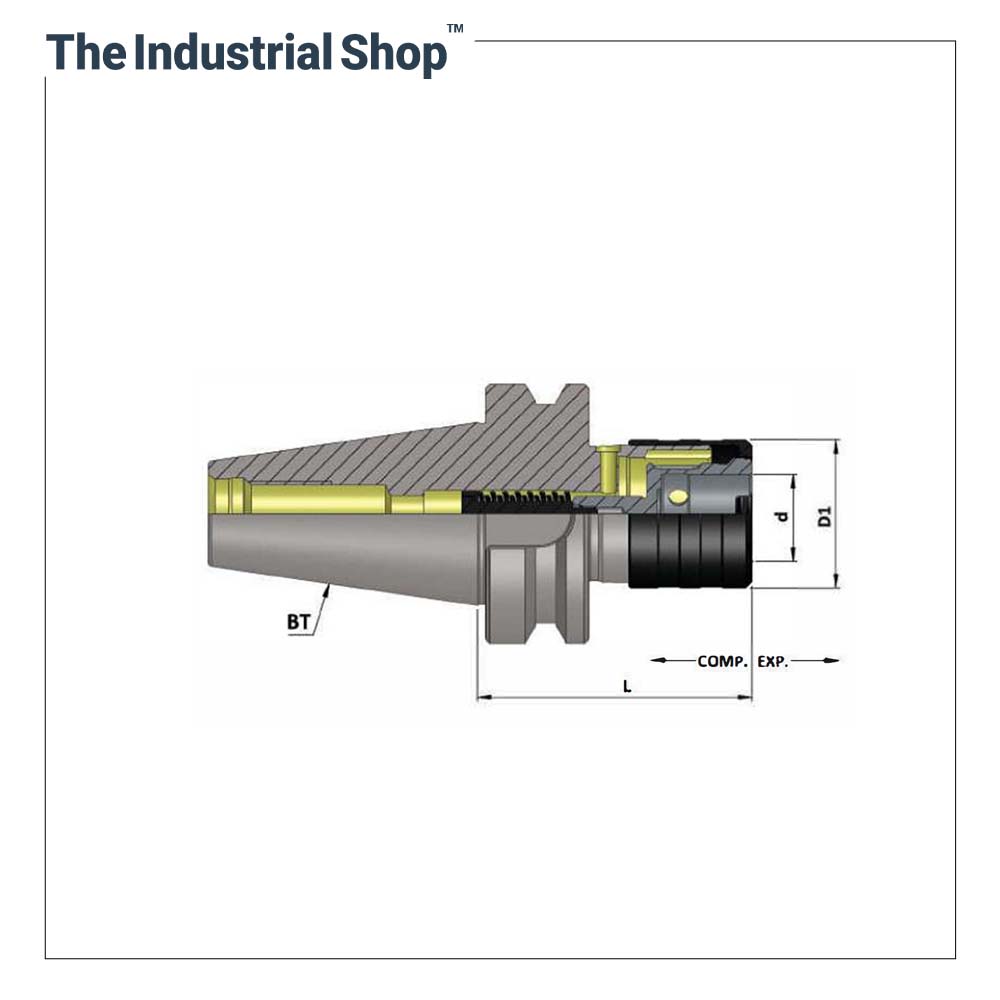

Specification
| Machine Spindle Taper | BT40 |
| Suitable Adaptor | KWES4B |
| Tap Capacity | M22 - M48 |
| Compression | 22.5 mm |
| Expansion | 22.5 mm |
| GPL (L) | 180 mm |
| Body Diameter (D1) | 96 mm |
| Through-Coolant | No |
| Material | Case-Hardened Steel (58 ± 2 HRC) |
| Brand | KTA (India) |
| Catalogue (PDF) | Download Here |
