KTA (India)

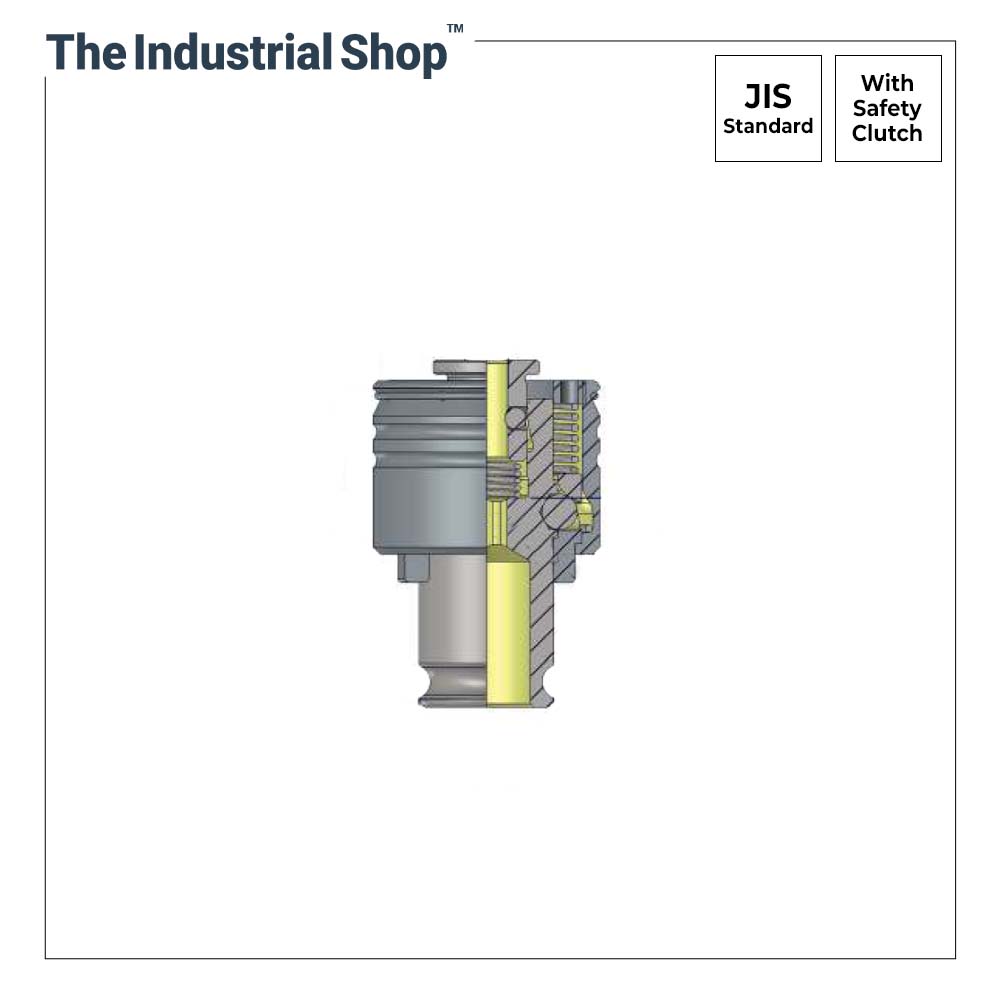

KTA Quick Change Tap Adaptor with Safety Clutch KWES3 (JIS)

KTA Quick Change Tap Adaptor with Safety Clutch KWES3 (JIS)

Regular price Rs. 3,717.00
Regular price Rs. 6,300.00 Sale price Rs. 3,717.00
Sale Sold out
Shipping calculated at checkout.

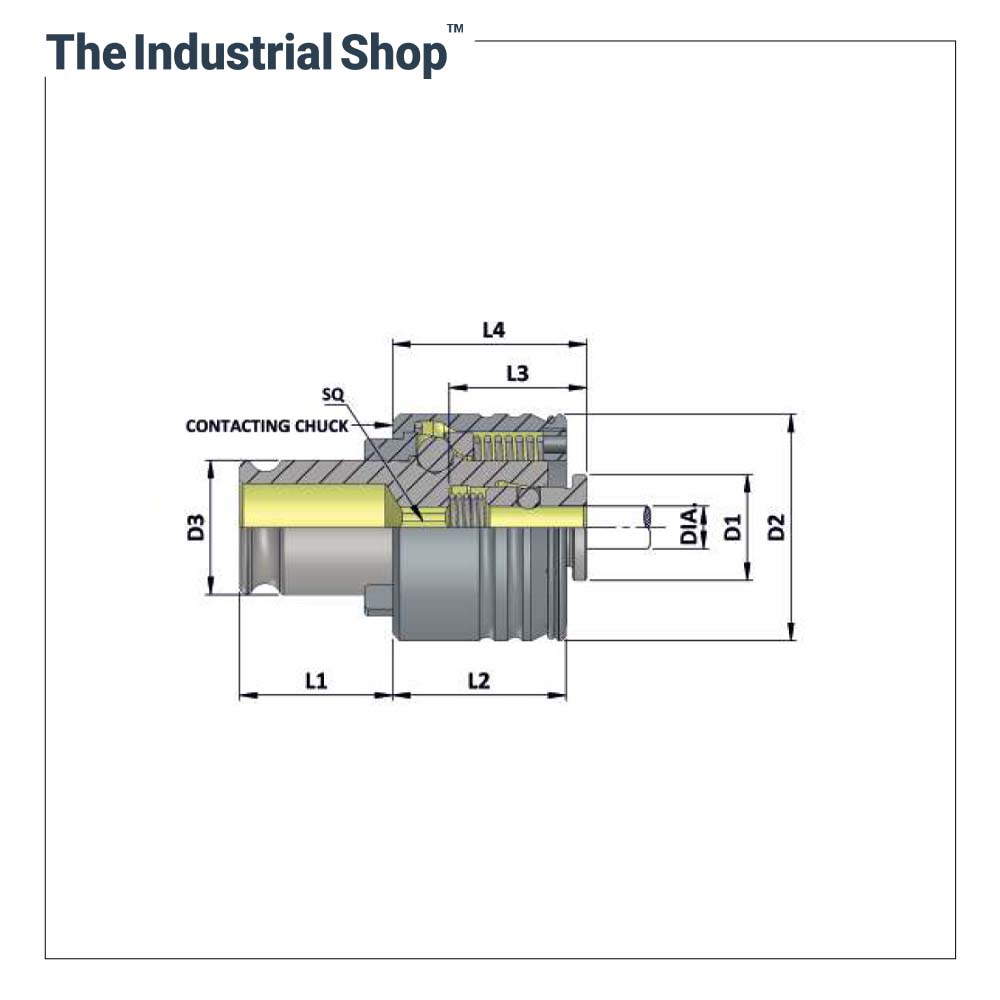

Dimensions

Summary

Item Type: Quick Change Tap Adaptor with Safety Clutch (JIS Standard)

Suitable Chuck: KWFLK3
Chuck Capacity: M14 - M33
GPL (L1): 55.5 mm
.

Description

KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month.

KTA manufactures ER Collet Chucks, Side Lock (End Mill) Holders, Hydro Grip Holders, Milling Holders, Drilling Chucks, Tapping Chucks, Collets, Hydro Grip Sleeves, and more in BT30, BT40, BT50, KBT, SK, HSK-A, HSK-F, and CAT standards.
.

Specification

Shank Diameter 11 mm to 28 mm
Suitable Chuck KWFLK3
Chuck Capacity M14 - M33
GPL (L1) 55.5 mm
L2 41 mm
L3 44 mm
L4 45 mm
Body Diameter (D1) 48 mm
Body Diameter (D2) 72 mm
Body Diameter (D3) 48 mm
Brand KTA (India)
Catalogue (PDF) Download Here
