KTA (India)

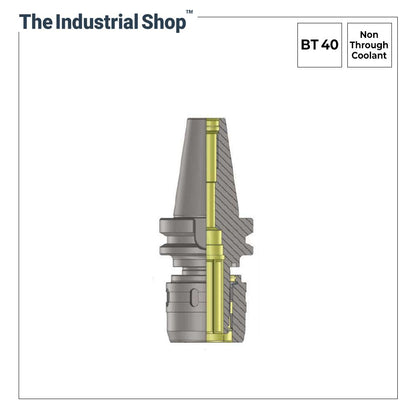

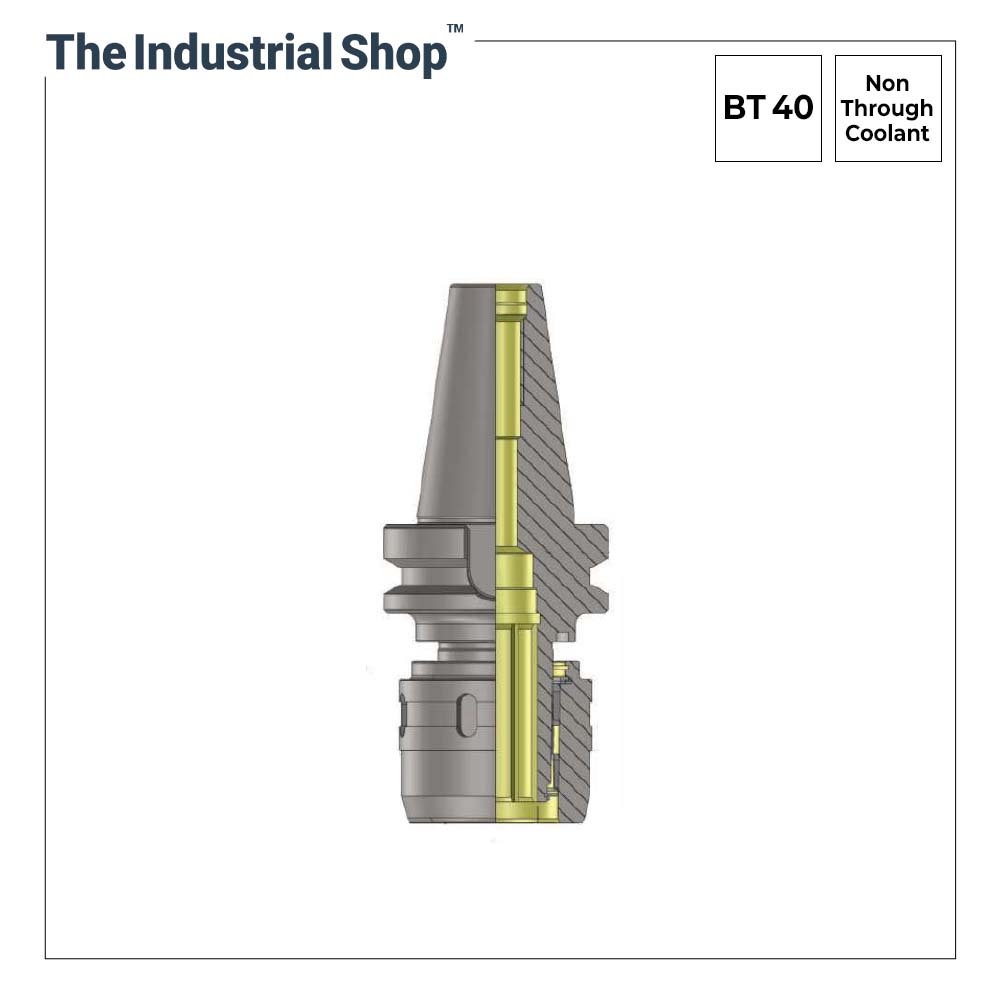

KTA Power Milling Chuck BT40 PMC32

KTA Power Milling Chuck BT40 PMC32

Regular price Rs. 9,035.00
Regular price Rs. 15,315.00 Sale price Rs. 9,035.00
Sale Sold out
Shipping calculated at checkout.
Length

Summary

Item Type: Power Milling Chuck

Machine Spindle Taper: BT40
Shank Diameter (d): 32 mm
GPL (L): 90 mm
Through-Coolant: No

.

Description

KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month.

KTA manufactures ER Collet Chucks, Side Lock (End Mill) Holders, Hydro Grip Holders, Milling Holders, Drilling Chucks, Tapping Chucks, Collets, Hydro Grip Sleeves, and more in BT30, BT40, BT50, KBT, SK, HSK-A, HSK-F, and CAT standards.
.

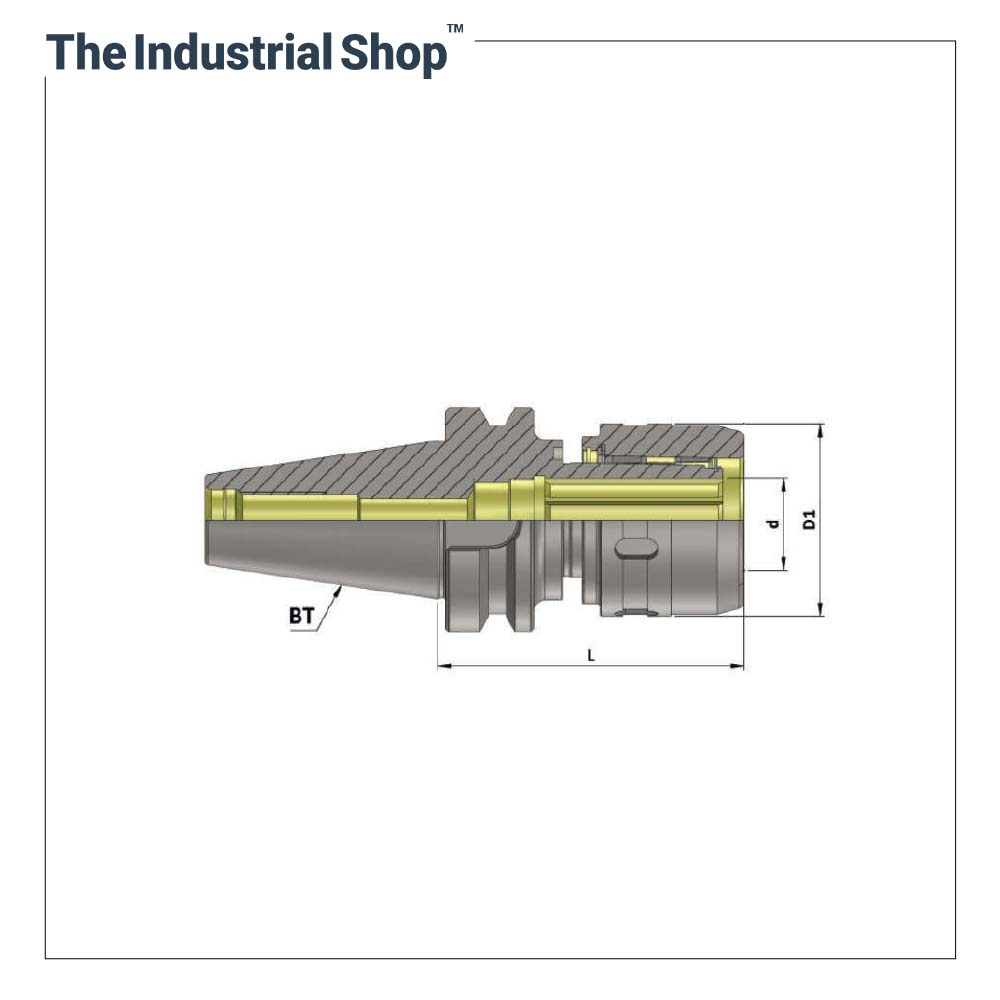

Specification

Machine Spindle Taper BT40
Shank Diameter (d) 32 mm
GPL (L) 90 mm
Body Diameter (D1) 72 mm
Through-Coolant No
Maximum Run-out 0.005 mm (5 microns)
Balanced to 6.3 G @ 15,000 RPM
Material Case-Hardened Steel (58 ± 2 HRC)
Brand KTA (India)
Catalogue (PDF) Download Here
