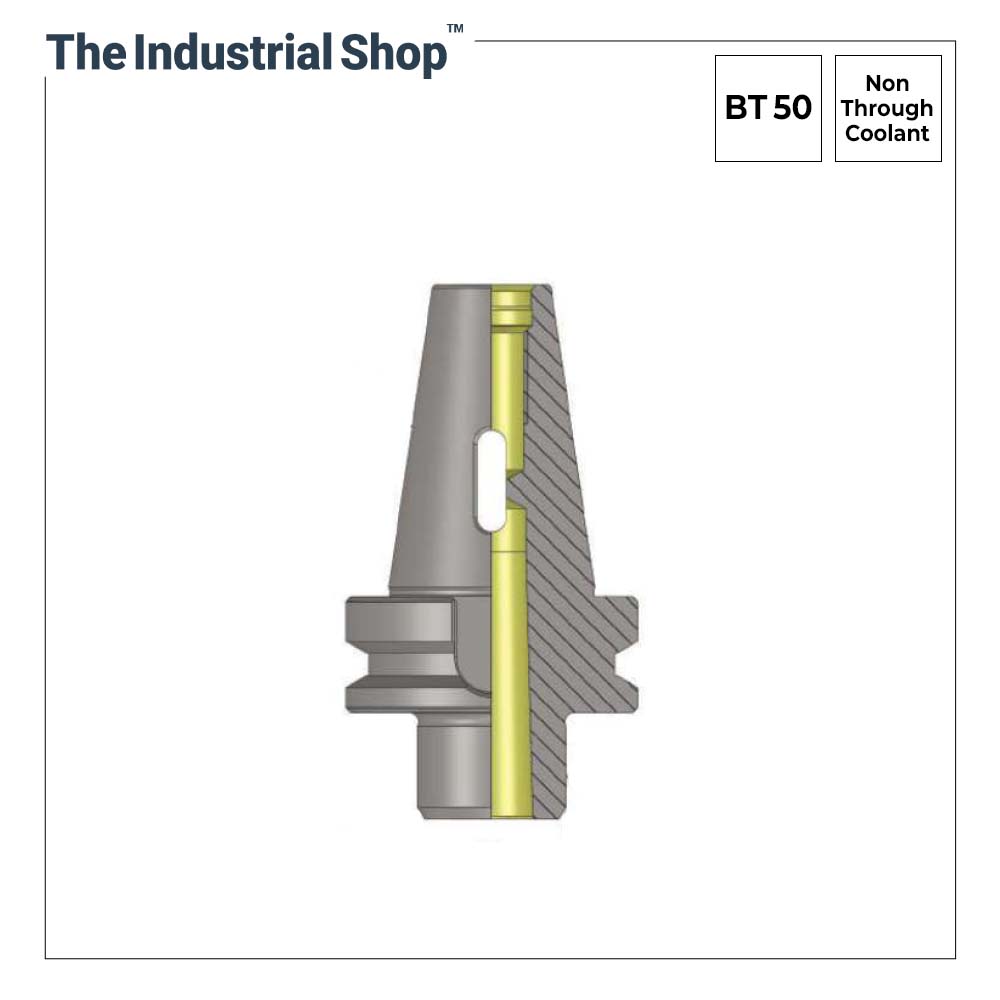

KTA Morse Adaptor BT50 MT5
KTA Morse Adaptor BT50 MT5
Regular price
Rs. 2,873.00
Regular price
Rs. 4,870.00
Sale price
Rs. 2,873.00
Unit price
/
per
Summary
Item Type: Morse Taper Adaptor
Machine Spindle Taper: BT50
Morse Taper (T): MT5
GPL (L): 120 mm and 220 mm
Through-Coolant: No
.
Description
KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month.
KTA manufactures ER Collet Chucks, Weldon (Side Lock) Holders, Milling Holders, Shrink Fit Holders, Hydraulic Expansion Chucks, Reduction Sleeves, Drilling Chucks, Tapping Chucks, and more in BT30, BT40, BT50, SK, HSK-A, HSK-F, and CAT standards.
.
Specification
Machine Spindle Taper | BT50 |
Morse Taper Adaptor (T) | MT5 |
GPL (L) | 120 mm, 220 mm |
Body Diameter (D1) | 63 mm |
Through-Coolant | No |
Maximum Run-out | 0.005 mm (5 microns) |
Balanced to | 6.3 G @ 15,000 RPM |
Material | Case-Hardened Steel (58 ± 2 HRC) |
Brand | KTA (India) |
Catalogue (PDF) | Download Here |
