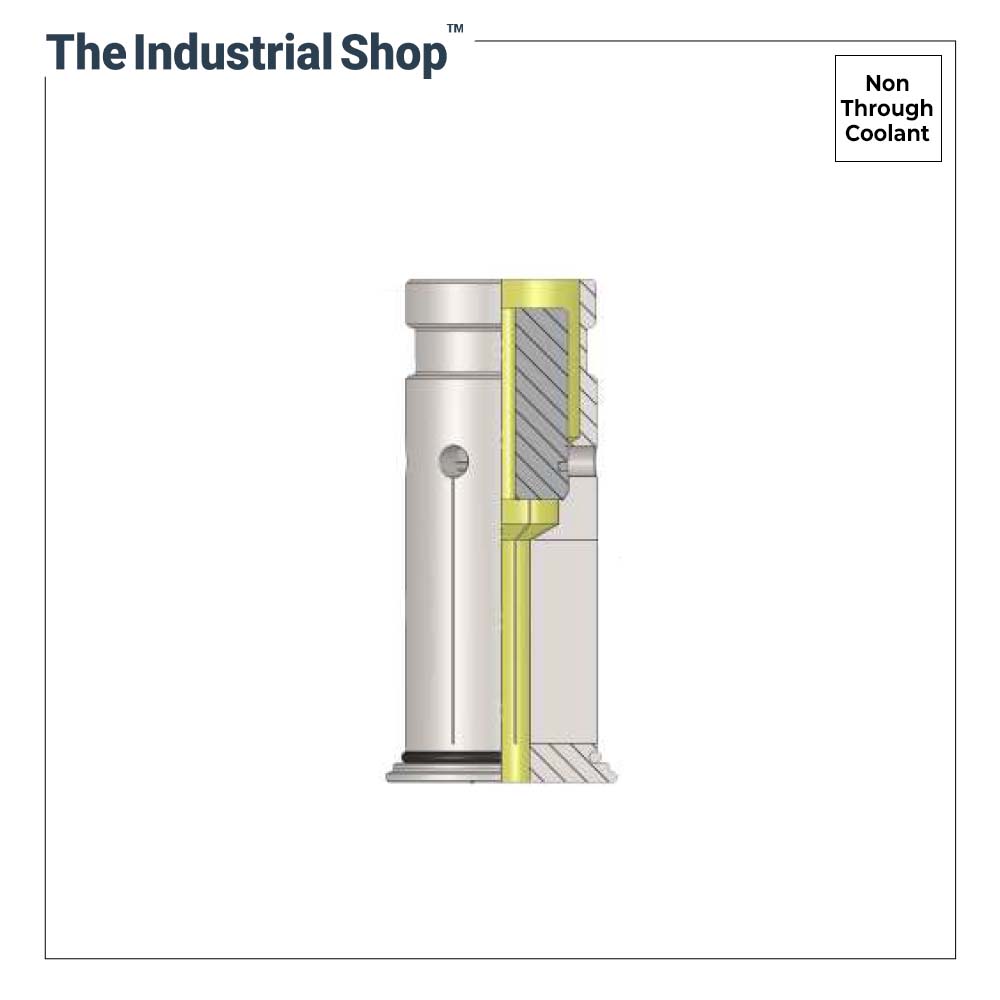

KTA Hydro Grip Sleeve 20 x 11 (Non-Through Coolant)

KTA Hydro Grip Sleeve 20 x 11 (Non-Through Coolant)

Rs. 0.00
Rs. 0.00
Sale Sold out
Shipping calculated at checkout.

Summary

Item Code: RS 20 x 11
Item Type: Hydro Grip Sleeve (Reduction Sleeve)

Bore Diameter (d): 11 mm
Connection Diameter (D2): 20 mm
Through Coolant: No
.

Description

KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month.

KTA manufactures ER Collet Chucks, Side Lock (End Mill) Holders, Hydro Grip Holders, Milling Holders, Drilling Chucks, Tapping Chucks, Collets, Hydro Grip Sleeves, and more in BT30, BT40, BT50, KBT, SK, HSK-A, HSK-F, and CAT standards.
.

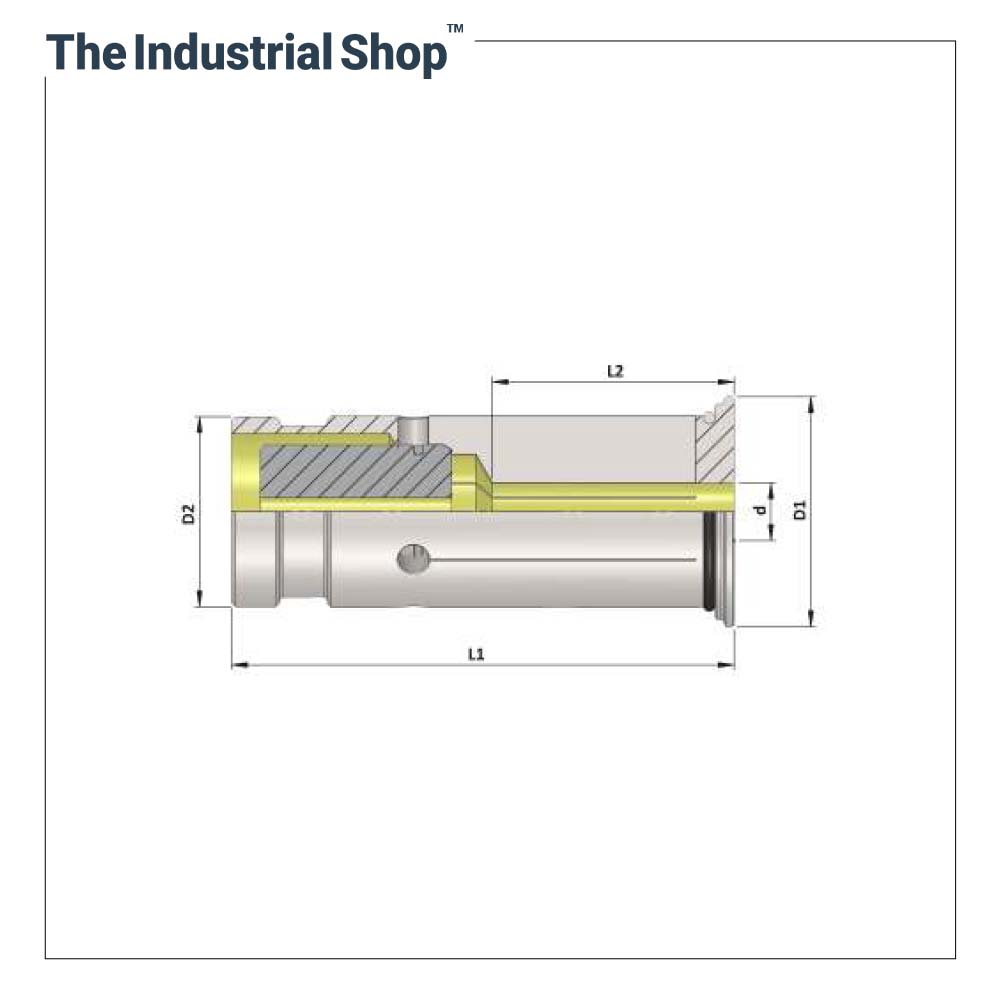

    Specification

    Bore Diameter (d) 11 mm
    Connection Diameter (D2) 20 mm
    Suitable Hydraulic Expansion Chuck BT30 HC20, BT40 HC20, BT50 HC20
    Shank Lenght GPL (L1) 52.5 mm
    Clamping Length (L2) 33 mm
    Flange Diameter (D1) 29 mm
    Through Coolant No
    Concentricity Within 0.005 mm (5 microns)
    Brand KTA (India)
    Catalogue (PDF) Download Here
