KTA (India)

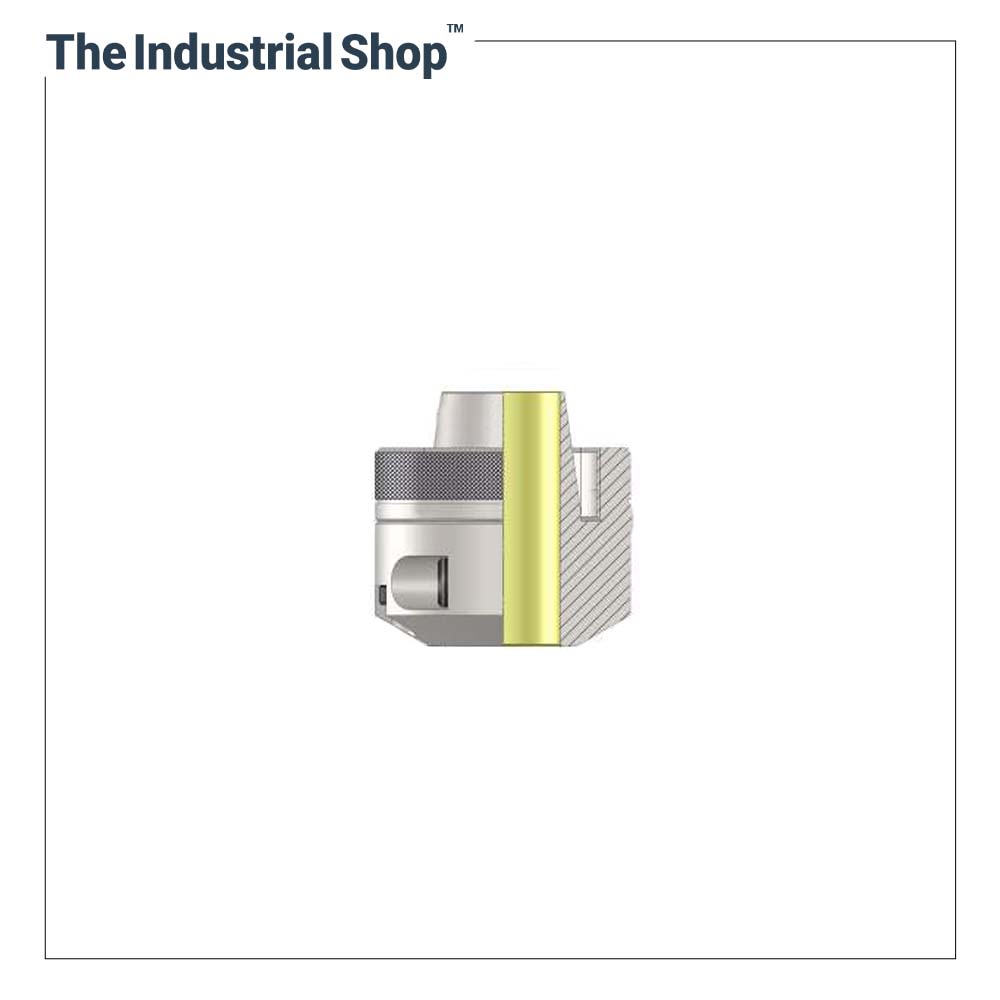

KTA ER type Hydraulic Chuck ER32

KTA ER type Hydraulic Chuck ER32

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out
Shipping calculated at checkout.
Shank Diameter


Item Type: ER Type Hydraulic Chuck

Shank Diameter (d): 20 mm and 3/4 inch
Suitable Chuck: ER32
GPL (L): 52 mm


KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month.

KTA manufactures ER Collet Chucks, Side Lock (End Mill) Holders, Hydro Grip Holders, Milling Holders, Drilling Chucks, Tapping Chucks, Collets, Hydro Grip Sleeves, and more in BT30, BT40, BT50, KBT, SK, HSK-A, HSK-F, and CAT standards.

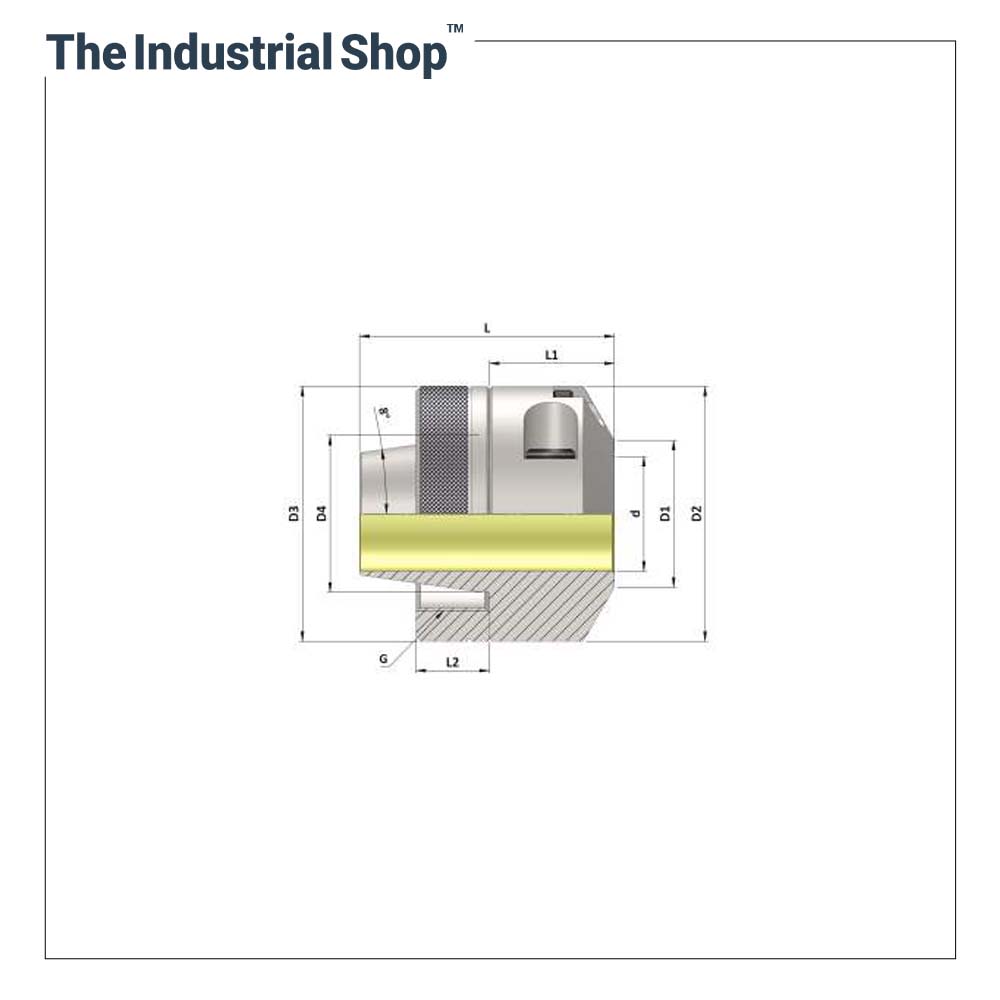

Shank Diameter (d) 32 mm, 3/4 inch
GPL (L) 52 mm
L1 25.5 mm
L2 15 mm
Body Diameter (D1) 30 mm
Body Diameter (D2) 52 mm
Body Diameter (D3) 52 mm
Body Diameter (D4) 32 mm
G M40 x 1.5
Maximum Run-out 0.003 mm (3 microns)
Material Case-Hardened Steel (58 ± 2 HRC)
Brand KTA (India)
Catalogue (PDF) Download Here
