KTA (India)
KTA Die & Mould Chuck BT50 DMC10
KTA Die & Mould Chuck BT50 DMC10
Regular price
Rs. 4,268.00
Regular price
Rs. 7,234.00
Sale price
Rs. 4,268.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Summary
Item Type: Die & Mould Chuck
Machine Spindle Taper: BT50
Suitable Collet: DMC - 10
GPL (L): 150 mm
Through-Coolant: Yes
.
Description
KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month. Collet Chucks
KTA manufactures ER Collet Chucks, Side Lock (End Mill) Holders, Hydro Grip Holders, Milling Holders, Drilling Chucks, Tapping Chucks, Collets, Hydro Grip Sleeves, and more in BT30, BT40, BT50, KBT, SK, HSK-A, HSK-F, and CAT standards.
.

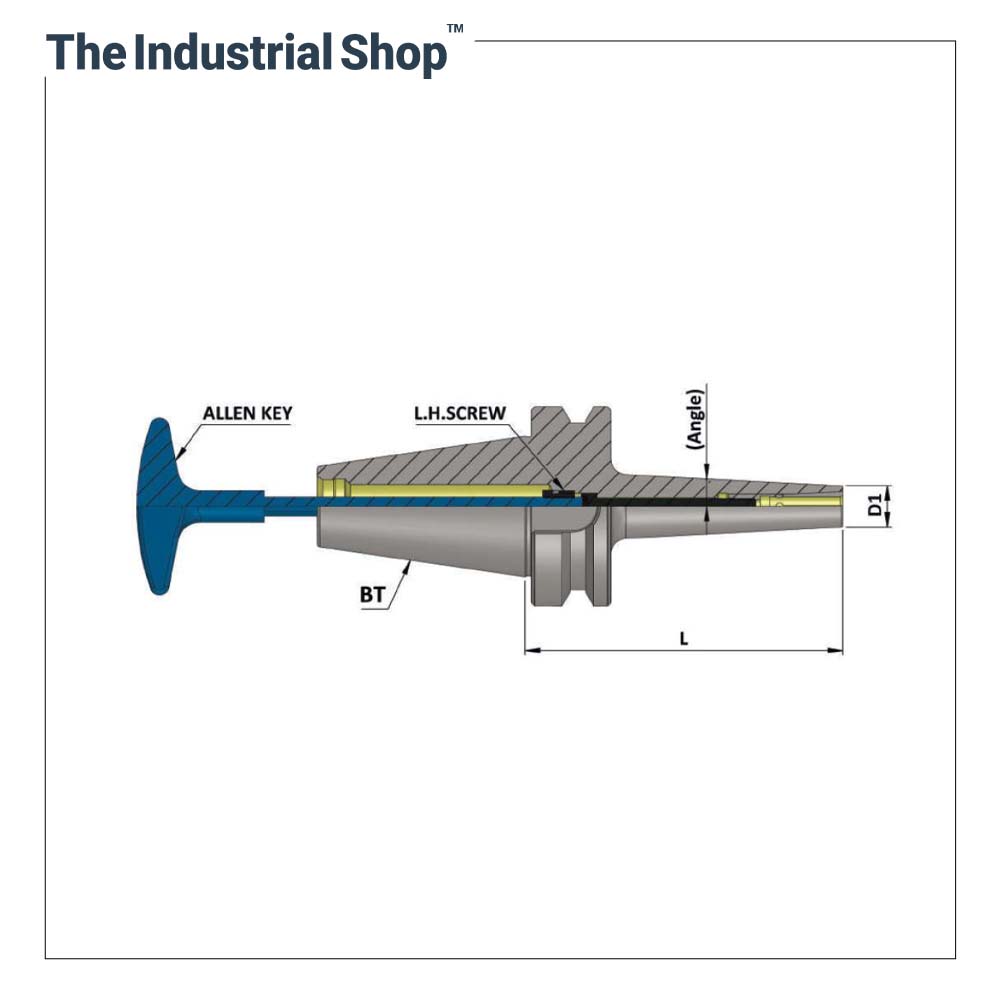

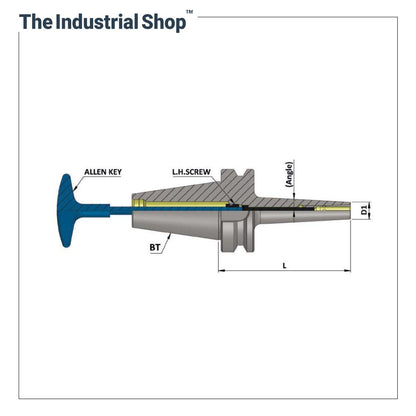

Specification
| Machine Spindle Taper | BT50 |
| Suitable Collet | DMC - 10 |
| GPL (L) | 150 mm |
| Body Diameter (D1) | 28 mm |
| Screw | M8 |
| Allen Key | 6 x 200 |
| Through-Coolant | Yes (Through Center) |
| Maximum Run-out | < 0.005 mm (5 microns) |
| Balanced to | 2.5 G @ 25,000 RPM |
| Material | Case-Hardened Steel (58 ± 2 HRC) |
| Brand | KTA (India) |
| Catalogue (PDF) | Download Here |
