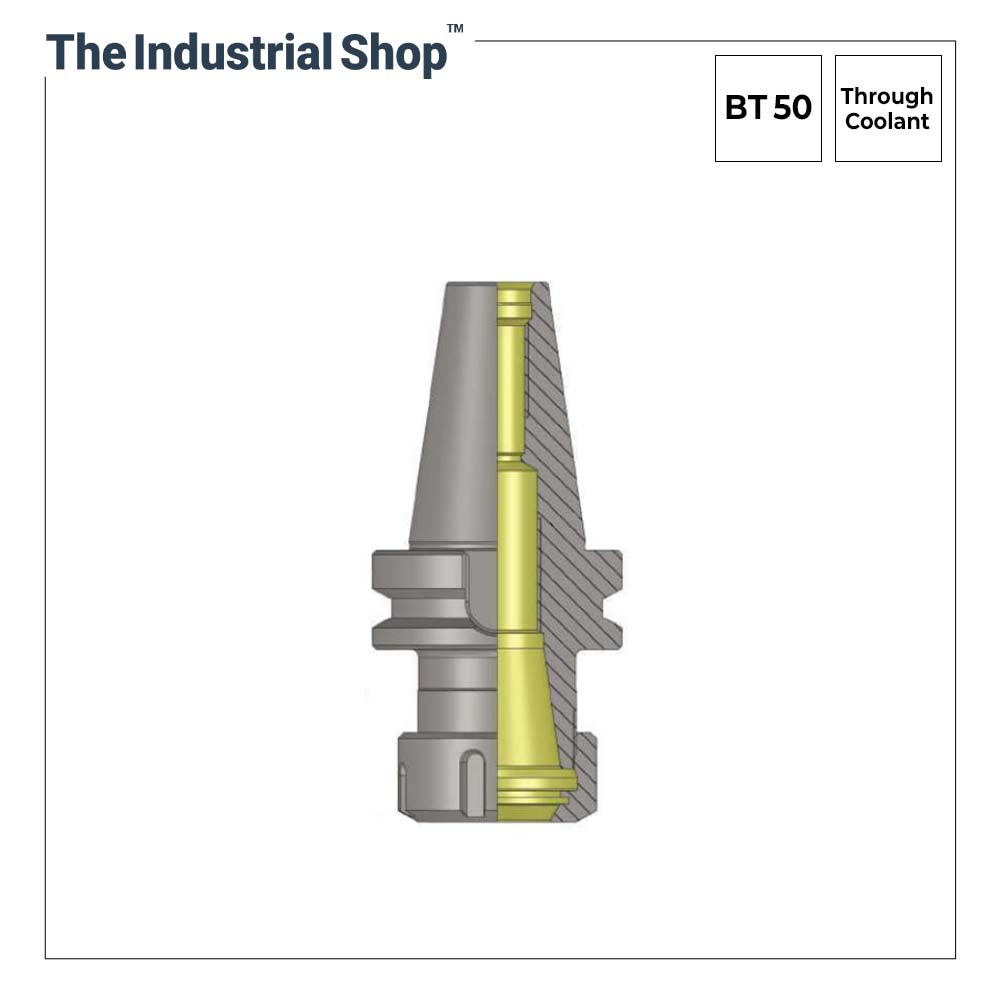

KTA Collet Chuck BT50 ER32

KTA Collet Chuck BT50 ER32

Rs. 3,691.00
Rs. 6,256.00 Rs. 3,691.00
Sale Sold out
Shipping calculated at checkout.
Length

Summary

Item Type: ER Collet Chuck

Machine Spindle Taper: BT50
Suitable Collet: ER32
Collet Capacity: 2.0 mm – 20.0 mm
GPL (L): 80 mm, 100 mm and 160 mm
Through-Coolant: Yes (Through Center)
.

Description

KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month. Collet Chucks

KTA manufactures ER Collet Chucks, Side Lock (End Mill) Holders, Hydro Grip Holders, Milling Holders, Drilling Chucks, Tapping Chucks, Collets, Hydro Grip Sleeves, and more in BT30, BT40, BT50, KBT, SK, HSK-A, HSK-F, and CAT standards.
.

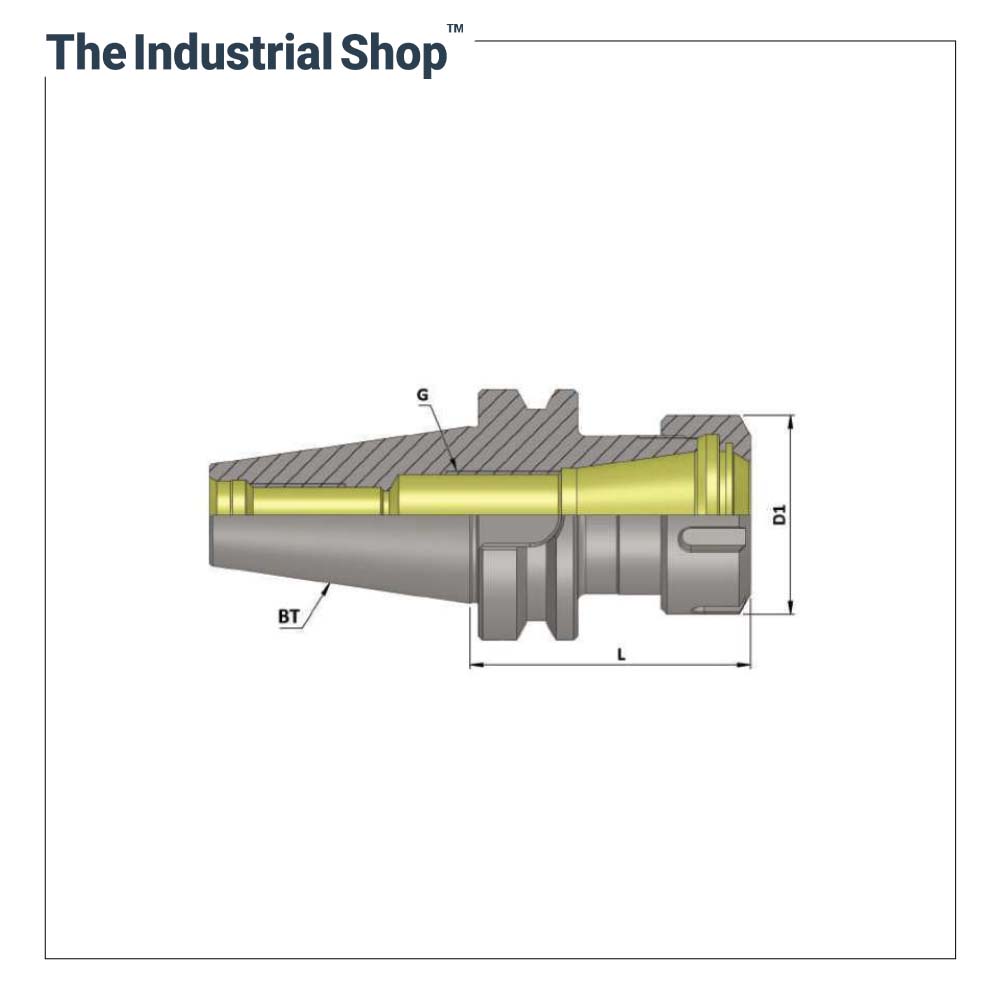

Specification

Machine Spindle Taper BT50
Suitable Collet ER32
Collet Capacity 2.0 mm - 20.0 mm
GPL (L) 80 mm, 100 mm, 160 mm
Body Diameter (D1) 50 mm
G M22 x 1.5
Through-Coolant Yes (Through Center)
Maximum Run-out 0.005 mm (5 microns)
Balanced to 6.3 G @ 15,000 RPM
Material Case-Hardened Steel (58 ± 2 HRC)
Brand KTA (India)
Catalogue (PDF) Download Here
