KTA (India)
KTA Collet Chuck BT30 ER25
KTA Collet Chuck BT30 ER25
Regular price
Rs. 1,575.00
Regular price
Rs. 2,670.00
Sale price
Rs. 1,575.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Summary
Item Type: ER Collet Chuck
Machine Spindle Taper: BT30
Suitable Collet: ER25
Collet Capacity: 1.0 mm – 16.0 mm
GPL (L): 60 mm and 100 mm
Through-Coolant: Yes (Through Center)
.
Description
KTA Spindle Toolings, established in the year 1983 is a leading manufacturer of Tool Holders in India. It is an ISO 9001:2015 certified organization with a production capacity of more than 10,000 holders a month. Collet Chucks
KTA manufactures ER Collet Chucks, Side Lock (End Mill) Holders, Hydro Grip Holders, Milling Holders, Drilling Chucks, Tapping Chucks, Collets, Hydro Grip Sleeves, and more in BT30, BT40, BT50, KBT, SK, HSK-A, HSK-F, and CAT standards.
.

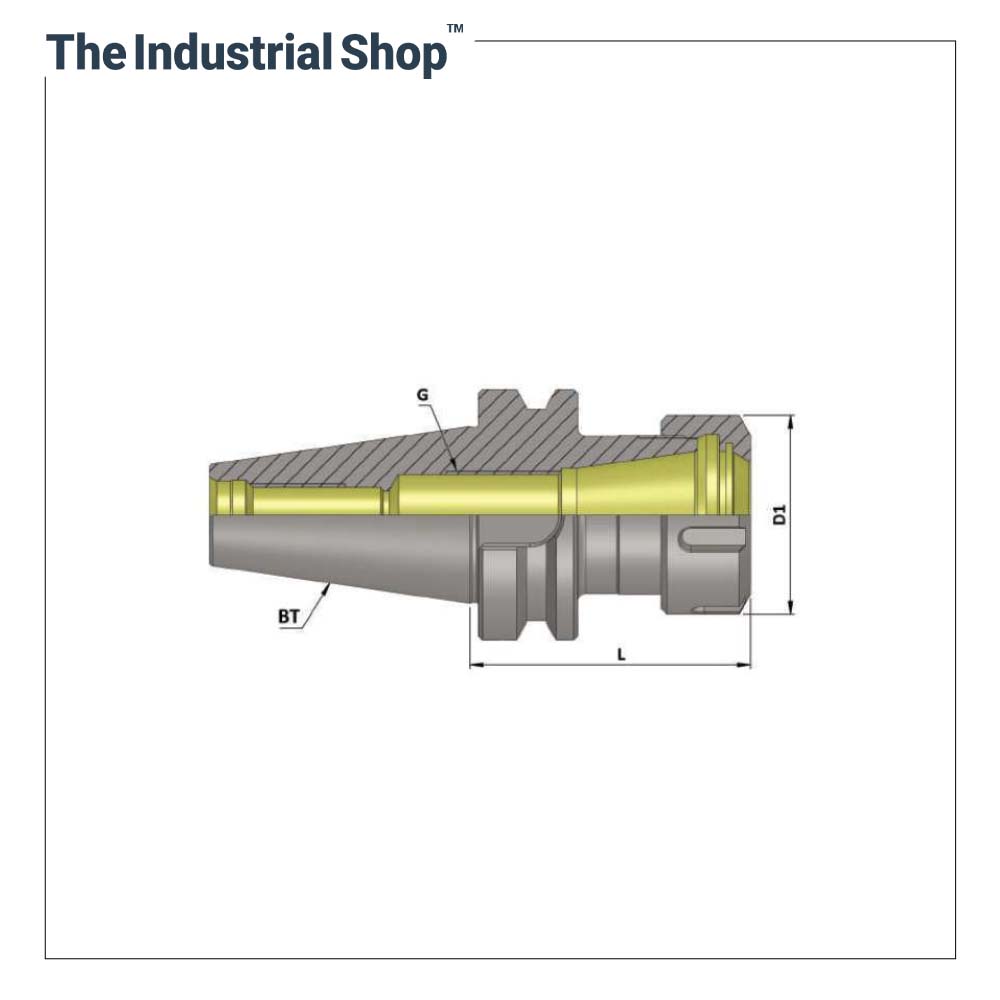

Specification
| Machine Spindle Taper | BT30 |
| Suitable Collet | ER25 |
| Collet Capacity | 1.0 mm - 16.0 mm |
| GPL (L) | 60 mm, 100 mm |
| Body Diameter (D1) | 42 mm |
| G | M18 x 1 |
| Through-Coolant | Yes (Through Center) |
| Maximum Run-out | 0.005 mm (5 microns) |
| Balanced to | 6.3 G @ 15,000 RPM |
| Material | Case-Hardened Steel (58 ± 2 HRC) |
| Brand | KTA (India) |
| Catalogue (PDF) | Download Here |
