HKG Withdrawal Sleeve AHX 320

Summary

Item Code: AHX 320

Item Type: Withdrawal Sleeve

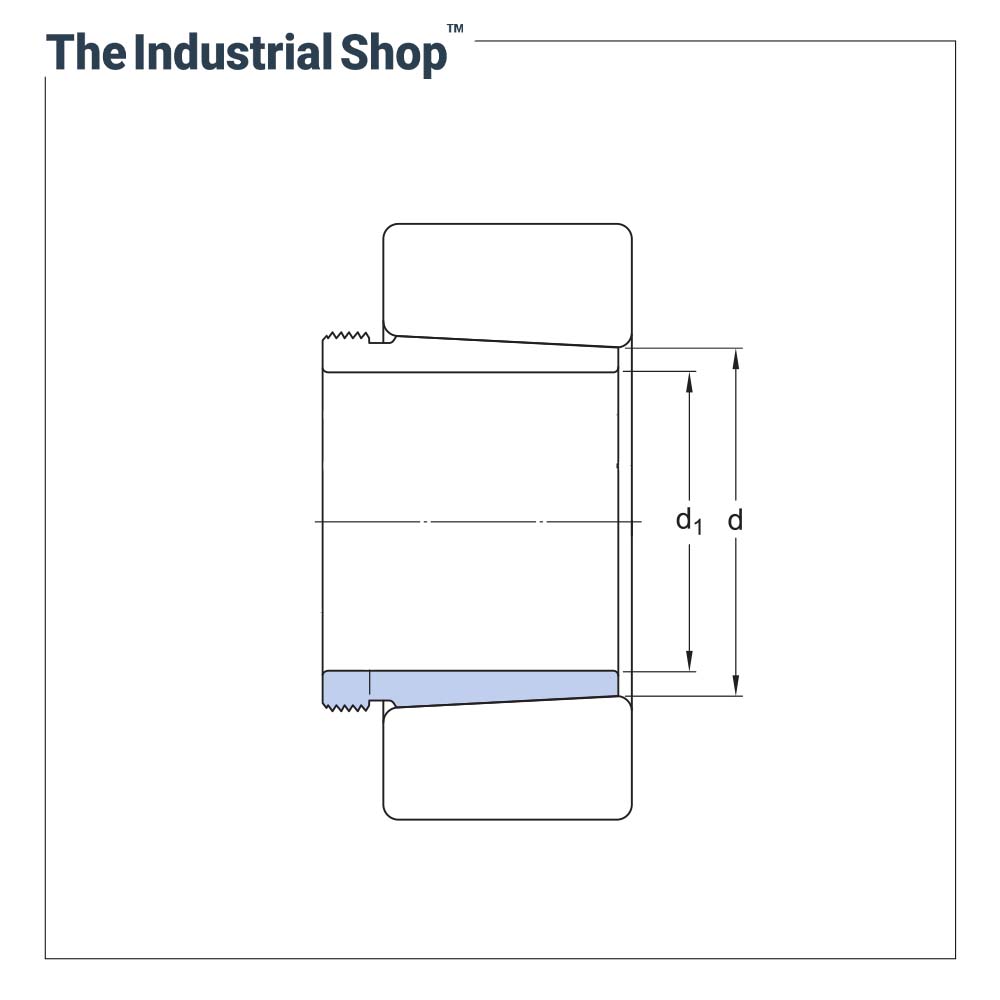

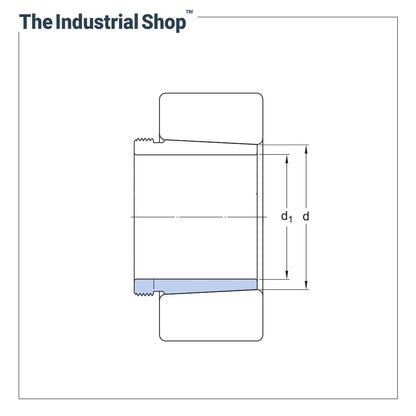

Shaft Diameter (d): AH 320 (for metric shafts) - 95 mm

Outside diameter small taper (d): 100 mm

Suitable for Bearing with Adaptor Sleeve: 2220 K, 1320 K, 22220 K, 21320 K, 20320 K
.

Description

Withdrawal sleeves can be used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. The sleeve is pressed into the bore of the bearing inner ring, which abuts a shaft shoulder or similar fixed component. The sleeve is located on the shaft by a nut or an end plate. KM or HM lock nuts with appropriate locking devices are suitable. Withdrawal Sleeve

HKG has emerged as one of the most prominent manufacturers of Adapter Sleeves, Withdrawal Sleeves, Lock Nuts, Lock Washers, Hydraulic Adapter Sleeves, and Hydraulic Withdrawal Sleeves. The brand is widely appreciated for its durability, dimensional accuracy, corrosion resistance, and efficient performance.

The withdrawal sleeve is not supplied with lock nuts and locking washers and must be ordered separately. AHX320 HKG Sleeve, JJ Sleeve, JIC Sleeve, KT Sleeve
