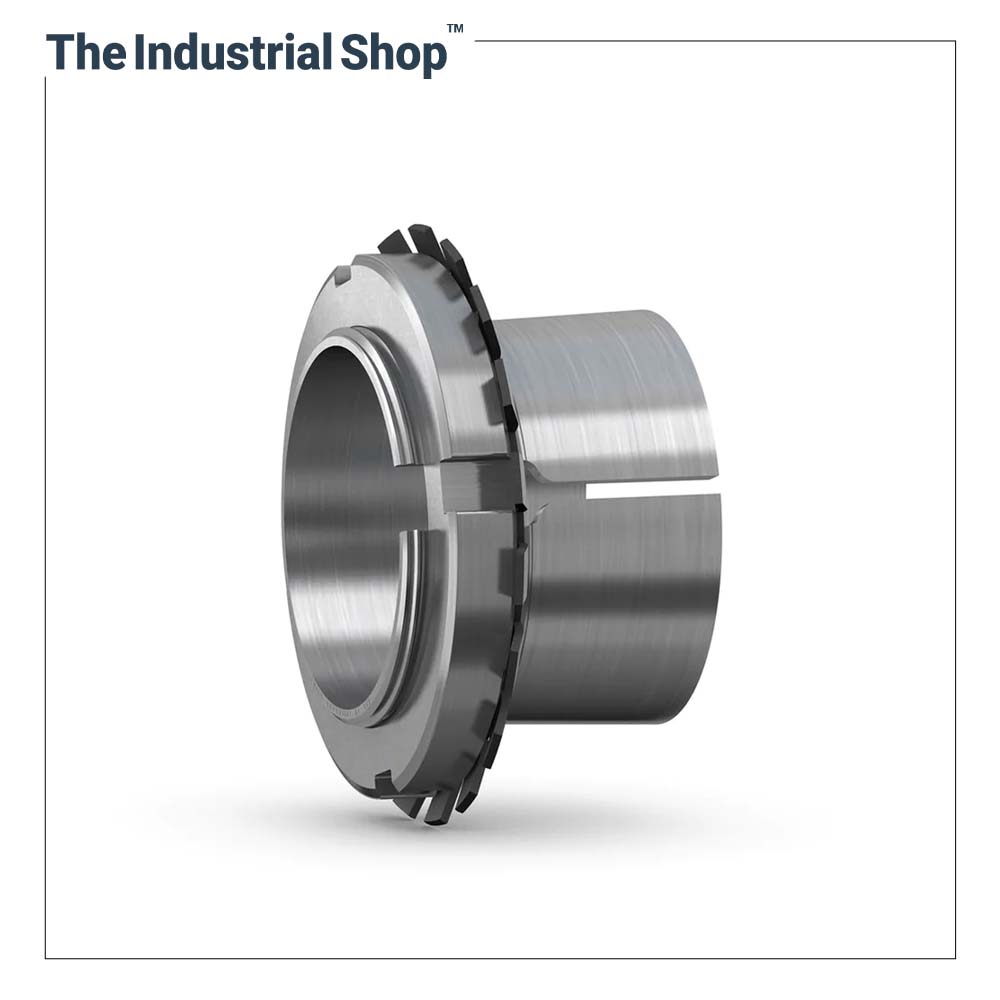

HKG Adapter Sleeve H/HE 315

Summary

Item Code: H 315 / HE 315

Item Type: Adapter Sleeve

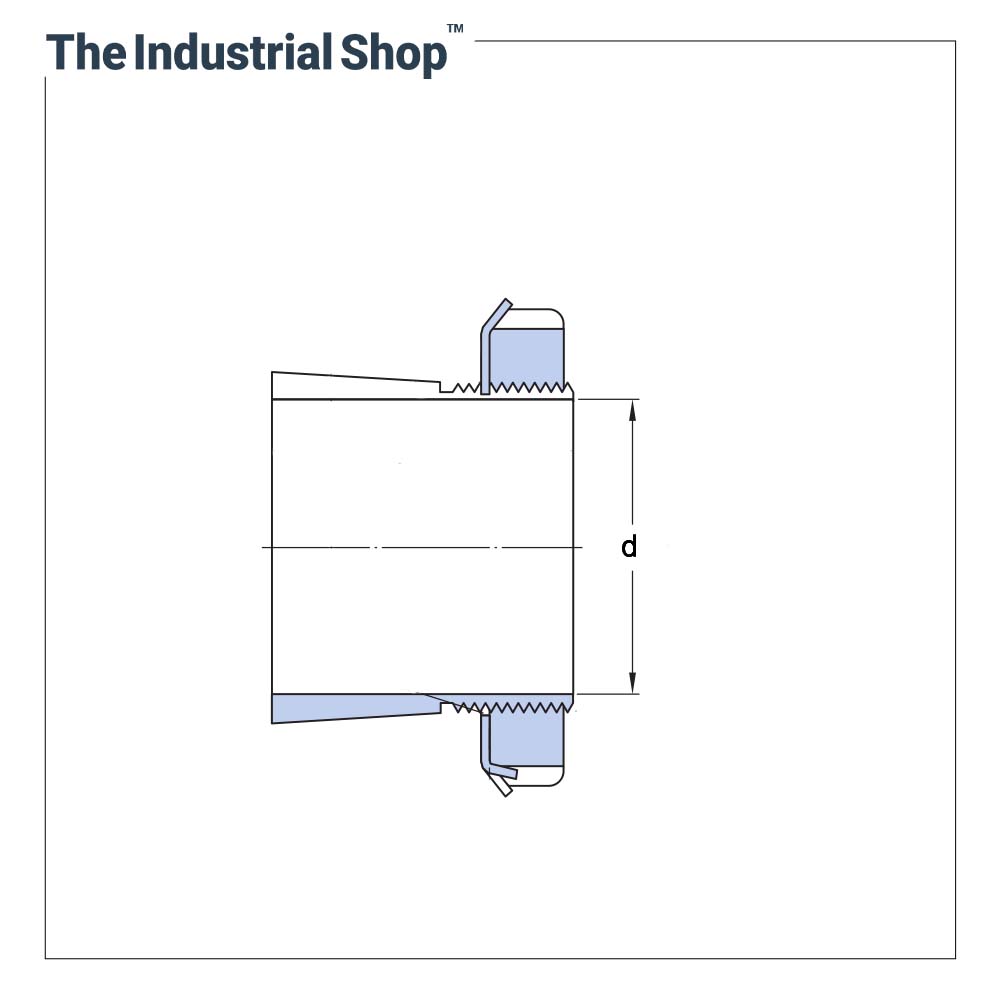

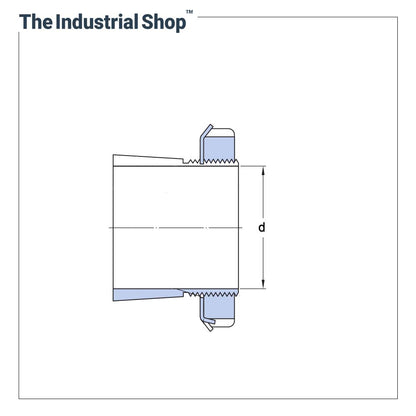

Shaft Diameter (d): H 315 (for metric shafts) – 65 mm, HE 315 (for inch shafts) – 2 1/2″

Suitable for Bearing with Adaptor Sleeve: 1315 K, 2215 K, 22215 K, 21315 K, 20315 K
.

Description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore. They are easy to install and require no additional location on the shaft. When used on plain shafts, the bearing can be located at any position on the shaft. When used on stepped shafts together with an L-shaped spacer ring, the bearing can be accurately positioned axially, thereby facilitating bearing mounting and dismounting. Adapter Sleeve

HKG has emerged as one of the most prominent manufacturers of Adapter Sleeves, Withdrawal Sleeves, Lock Nuts, Lock Washers, Hydraulic Adapter Sleeves, and Hydraulic Withdrawal Sleeves. The brand is widely appreciated for its durability, dimensional accuracy, corrosion resistance, and efficient performance.

The adapter sleeve comprises a slotted adapter sleeve, lock nut, and locking washer. H315 HKG Sleeve, JJ Sleeve, JIC Sleeve, KT Sleeve
